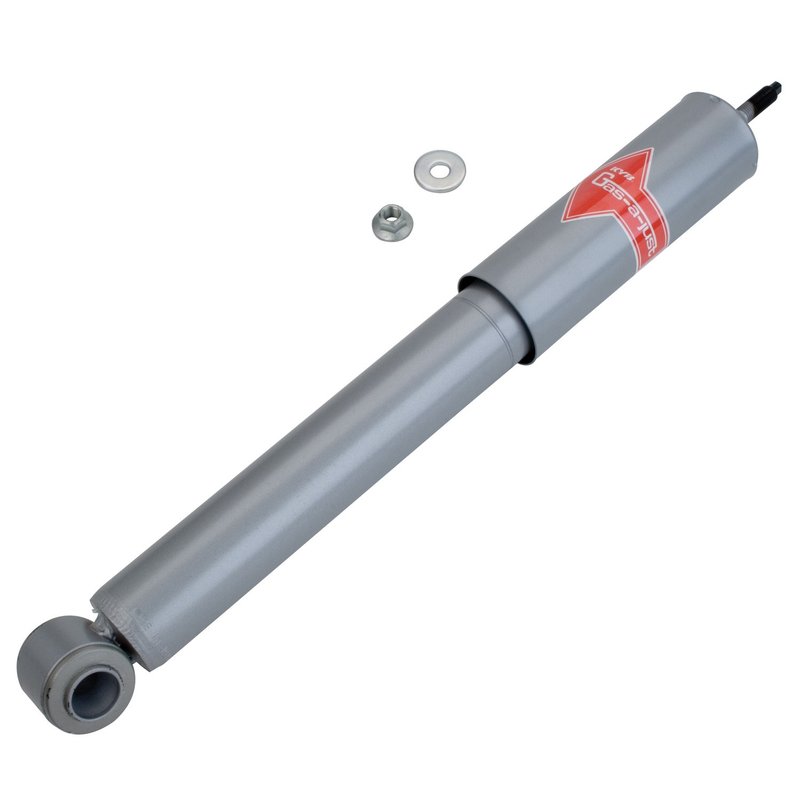

KYB KG5747 Shock Absorber - Rear

Overview of KYB Gas-a-just Suspension Shock Absorber KG5747

The KYB Gas-a-just suspension shock absorber KG5747 is engineered for reliable performance in Volvo vehicles including the 850, C70, S70, and V70 models. Designed to restore original handling and ride quality, this shock absorber offers precise damping characteristics tailored to these specific Volvo applications.

• Compressed length: 11.02 inches
• Extended length: 16.89 inches
• Stroke length: 5.87 inches
• Lower mount type: E2 (21.4x40)
• Upper mount type: S1
• Includes dust cover for protection
• R-stop included for controlled rebound
• No internal rebound spring or B-stop

Details on KYB Gas-a-just Product Line

The Gas-a-just line by KYB is designed to provide a gas-charged shock absorber that maintains consistent damping performance over time. This technology helps reduce fade and improves vehicle control by using pressurized nitrogen gas to minimize aeration and foaming inside the shock. The KG5747 model benefits from this design, offering dependable suspension response for Volvo 850, C70, S70, and V70 vehicles.

Technical Description and Features

The KG5747 shock absorber features a compressed length of 11.02 inches and an extended length of 16.89 inches, providing a stroke length of 5.87 inches. The lower mount uses an E2 type fitting measuring 21.4 by 40 mm, while the upper mount is an S1 type, ensuring proper fitment and secure installation. A dust cover is included to protect the internal components from dirt and debris, extending the service life of the shock. The design incorporates an R-stop to control rebound travel, enhancing ride stability without an internal rebound spring or B-stop.

Common Applications and Problem Solving

• Restores original suspension performance on Volvo 850, C70, S70, and V70
• Reduces excessive bouncing and improves vehicle handling
• Minimizes noise and vibration from worn shocks
• Prevents bottoming out and harsh impacts during driving
• Enhances overall ride comfort and safety

Installation Notes and Tips

When installing the KYB Gas-a-just KG5747 shock absorber, ensure the correct orientation of the upper S1 and lower E2 mounts for proper fitment. Verify the compressed and extended lengths match the vehicle specifications to avoid suspension issues. It is recommended to replace shocks in pairs to maintain balanced handling. Use appropriate tools to avoid damage to the dust cover and mounting points during installation.

Quality Assurance and Warranty

KYB manufactures the Gas-a-just KG5747 shock absorber to meet strict quality standards, ensuring durability and consistent performance. This part is backed by KYB's warranty coverage, which protects against defects in materials and workmanship under normal use. Always consult the warranty terms provided with the product for specific coverage details.
