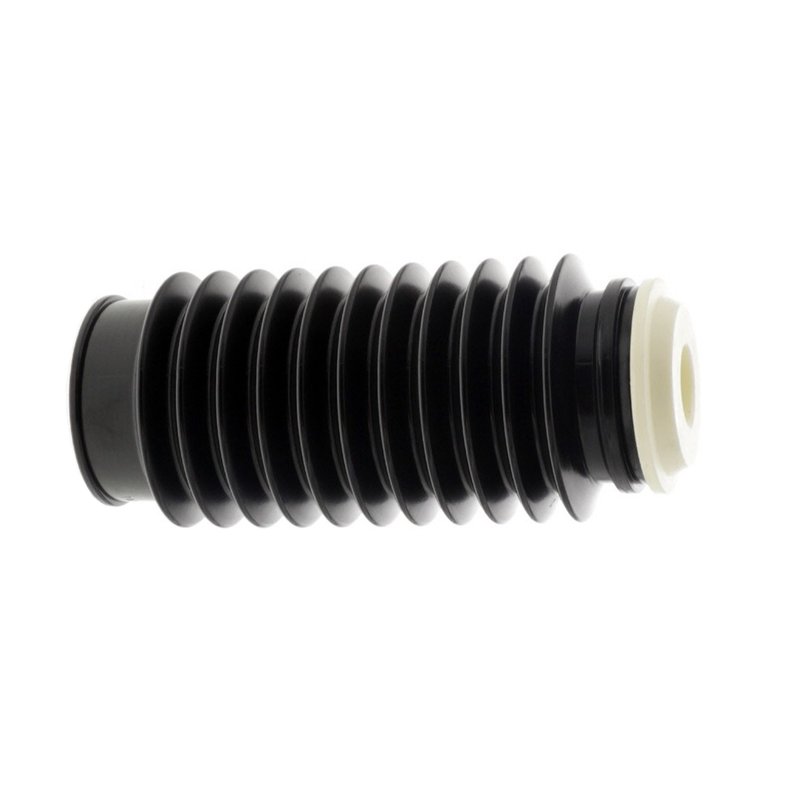

KYB SB102 Suspension Strut Bellows - Front or Rear

KYB Strut Boot Kit SB102

The KYB SB102 strut boot kit helps protect exposed strut components from road grit and moisture. It is built for front and rear applications across a wide range of vehicles, including Nissan Murano, Toyota Camry, Honda CR-V, and Lexus ES350 fitments.

Key Features

• Superior-quality boot helps shield the strut shaft from dirt and debris that can contribute to seal wear
• Poly foam bumper helps prevent the strut from bottoming out
• Built to match or exceed OE design and quality expectations
• Helps protect the upper seal and bushing from contamination
• Durable plastic bellows cover the strut shaft to block dust, sand, salt, and road debris

Product Details

KYB Boot Kits are made to keep the strut shaft covered and protected from abrasive contaminants that can shorten strut service life. By reducing exposure to dirt, dust, sand, salt, and other road debris, the SB102 helps preserve the polished shaft, upper seal, and bushing. The included poly foam travel-limiting bumper adds impact protection by helping keep the strut from bottoming out during suspension travel. This part cross-references Monroe Shocks & Struts 63618 for the same application.

Compatible fitment includes front applications for 2007-2014 Ford Edge, 2007-2014 Honda CR-V, 2002-2011 Toyota Camry, and 2013-2018 Nissan Pathfinder, along with many other front and rear listings across the 1977-2023 model years. The KYB SB102 is a practical replacement when you need a strut bellows that follows OE-style dimensions and protection requirements.

What It Helps Address

• Strut shaft wear caused by dirt, dust, and road debris
• Seal contamination that can lead to fluid leakage
• Bushing damage from abrasive particles
• Suspension harshness from repeated bottoming out
• Exposure-related deterioration of the strut’s upper components

Installation Notes

Verify the vehicle’s year, make, model, and suspension position before installation. Some Toyota and Honda applications use a one-piece upper spring insulator and boot/bellows assembly; this replacement boot/bellows requires cutting off and re-using the original upper spring insulator portion. Check for exclusions such as magnetic ride control, air suspension, electronic suspension, adjustable suspension, sport suspension, or self-leveling rear systems where noted in the fitment data.

For fitment-specific searches, this part is commonly selected for front strut boot replacement on vehicles such as the Nissan Murano, Toyota Avalon, and Honda Pilot, as well as rear applications on select Audi, Subaru, and Hyundai models.

Quality Assurance

KYB is known for suspension components engineered to OE-style standards. The SB102 boot kit is built with design and quality that matches or exceeds OE expectations for protection and fit.
