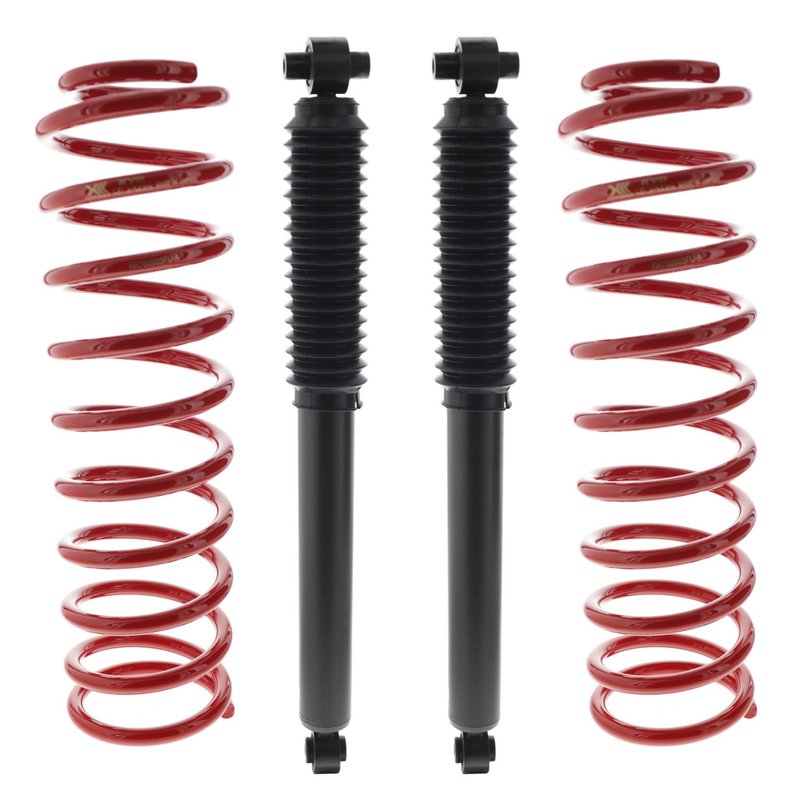

KYB SR7004 Suspension Lift Kit - Front

KYB JAOS Front Suspension Lift Kit for Jeep Wrangler

The KYB JAOS SR7004 suspension lift kit is built for 2018-2023 Jeep Wrangler front applications that need added ride height and stronger support. With up to 2 inches of lift, this kit addresses heavier vehicle loads, larger wheels and tires, and demanding road conditions.

KYB JAOS combines monotube shock construction with matched coil springs to help maintain control after a suspension upgrade. The SR7004 is a front kit for Jeep Wrangler builds where consistent damping and added clearance are priorities.

Key Features

• Part number SR7004
• Front suspension lift kit for 2018-2023 Jeep Wrangler
• Provides up to 2 inches of lift
• Monotube shock design for consistent damping response
• Includes two shocks and two coil springs
• Compressed length: 17.32 in.
• Extended length: 24.8 in.
• Stroke length: 7.48 in.
• Lower mount type: E2(12.2x40)
• Upper mount type: E2(12x69.5)
• Dust cover included

Product Details

KYB JAOS is the performance-focused suspension line from KYB, developed for drivers who need more ground clearance and stable suspension behavior under load. This SR7004 front lift kit is a direct fit for 2018-2023 Jeep Wrangler front suspension applications and is suited for setups using larger wheels and tires or carrying additional weight. The matched shock and coil spring package helps support the vehicle after the lift while keeping the suspension geometry within the intended upgrade range. Part number SR7004 is also referenced by Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Uses

• Raises the front of a Jeep Wrangler for additional clearance
• Addresses suspension sag from heavier loads
• Supports larger wheel and tire combinations
• Helps improve control on rough or demanding roads
• Replaces worn front lift components with a matched kit

Installation Notes

Compatible With 2018-2023 Jeep Wrangler, front. KYB recommends using both front and rear kits when performing this upgrade. Verify suspension measurements, mount style, and lift goals before installation. Professional installation and a post-install alignment are recommended after any suspension height change.

Quality Assurance

KYB is a long-established suspension manufacturer, and the JAOS line is built around monotube shock construction and matched spring components for consistent performance in lift applications. Part number SR7004 is engineered for the listed Jeep Wrangler front fitment and component dimensions shown above.
