Luk 04-100 Clutch Kit

Overview of Luk Transmission Clutch Kit 04-100

The Luk Transmission Clutch Kit 04-100 is designed for reliable clutch performance in select Chevrolet, Geo, Pontiac, and Suzuki models. This kit includes all necessary components to restore clutch function in vehicles such as the Chevrolet Metro, Geo Firefly, Pontiac Firefly, and Suzuki Swift.

• Push type diaphragm pressure plate for consistent clutch engagement
• 7-1/2 inch clutch disc diameter with 18 spline count
• 3/4 inch input shaft diameter compatibility

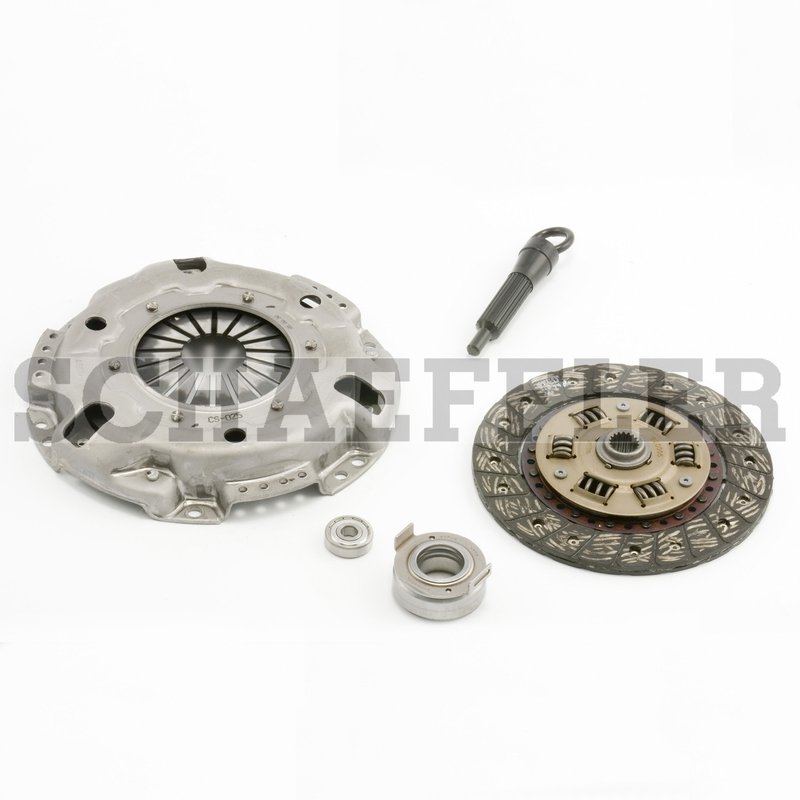

• Complete kit includes cover assembly, clutch disc, release bearing, and pilot bearing
• Four clutch disc springs for balanced pressure and smooth operation
• Clutch diameter of 9-7/16 inches for precise fitment

Detailed Product Description

The Luk 04-100 Transmission Clutch Kit features a push type diaphragm pressure plate, which provides reliable and even pressure distribution for smooth clutch engagement and disengagement. The clutch disc measures 7-1/2 inches in diameter and includes 18 splines, matching the 3/4 inch input shaft diameter to ensure proper fit and function. The clutch plate facing outer diameter is also 7-1/2 inches, complementing the overall clutch assembly size of 9-7/16 inches. This kit contains all necessary components including the cover assembly, clutch disc, release bearing, and pilot bearing, making it a comprehensive solution for clutch replacement in compatible vehicles.

Compatible Vehicles and Applications

This Luk clutch kit is compatible with several compact and subcompact models, including Chevrolet Metro, Geo Firefly, Pontiac Firefly, and Suzuki Swift. It is specifically designed to meet the transmission requirements of these vehicles, ensuring proper fitment and reliable operation.

Common Issues Addressed by This Clutch Kit

• Slipping clutch causing loss of power transfer
• Difficulty shifting gears due to worn clutch components
• Clutch chatter or vibration during engagement
• Worn or damaged pressure plate and clutch disc
• Release bearing noise or failure

Installation Notes and Tips

• Ensure the input shaft diameter matches the 3/4 inch specification for proper spline engagement
• Inspect the flywheel surface for wear or damage before installation
• Use proper torque specifications when tightening the cover assembly bolts
• Replace the pilot bearing included in the kit to avoid premature wear
• Verify clutch disc orientation and spline alignment during installation

Quality Assurance and Warranty

Luk transmission components are manufactured to meet OEM standards for durability and performance. The 04-100 clutch kit undergoes rigorous quality control to ensure reliable operation. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
