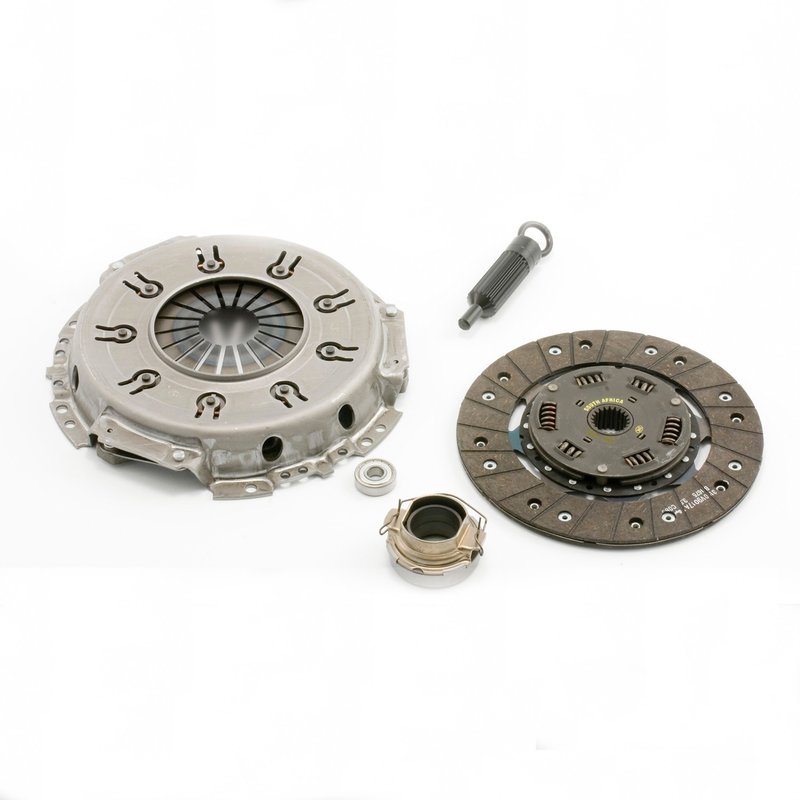

Luk 16-069 Transmission Clutch Kit

Overview of Luk Transmission Clutch Kit 16-069

The Luk Transmission Clutch Kit 16-069 is designed specifically for Toyota 4Runner and Pickup models. This kit includes all essential components to restore clutch performance and ensure smooth transmission operation.

• Push type diaphragm pressure plate for consistent clutch engagement
• Clutch disc diameter of 9-1/2 inches for precise fitment
• Input shaft diameter of 1-3/16 inches matching Toyota specifications
• Clutch diameter measuring 11-1/2 inches for reliable power transfer
• 21 spline clutch disc for secure connection to the transmission input shaft
• Clutch plate facing outer diameter of 9-1/4 inches for optimal friction surface
• Includes cover assembly, clutch disc, release bearing, and all necessary pilot components
• Equipped with 6 clutch disc springs to absorb shock and reduce vibration

Detailed Product Description

The Luk Transmission Clutch Kit 16-069 is engineered to meet the exact specifications required by Toyota 4Runner and Pickup vehicles. Featuring a push type diaphragm pressure plate, this kit provides consistent and reliable clutch engagement, which is critical for smooth shifting and power delivery. The clutch disc diameter of 9-1/2 inches and clutch diameter of 11-1/2 inches ensure proper fitment within the transmission housing. The 21 spline clutch disc matches the 1-3/16 inch input shaft diameter, providing a secure and precise connection. The clutch plate facing outer diameter of 9-1/4 inches offers an optimal friction surface for effective torque transfer. This kit also includes a release bearing and all necessary pilot components, making it a comprehensive solution for clutch replacement.

Compatible Vehicles and Applications

• Designed for Toyota 4Runner models requiring a 9-1/2 inch clutch disc
• Compatible with Toyota Pickup trucks with matching transmission specifications
• Ideal for restoring clutch function in vehicles experiencing slipping or engagement issues
• Suitable for vehicles needing replacement of worn clutch components

Installation Notes and Tips

When installing the Luk Transmission Clutch Kit 16-069, ensure the transmission input shaft diameter matches 1-3/16 inches for proper spline engagement. Verify the clutch disc spline count of 21 aligns with the vehicle’s transmission. Proper alignment of the clutch disc and pressure plate is essential to avoid premature wear. It is recommended to inspect the flywheel surface and resurface if necessary before installation. Use appropriate tools to install the release bearing and pilot components included in the kit.

Quality Assurance and Warranty

Luk manufactures this clutch kit to meet OEM standards, ensuring durability and reliable performance. The components are engineered for consistent clutch engagement and long service life. While specific warranty details are not provided, Luk products typically come with manufacturer-backed quality assurance to support professional automotive repairs.
