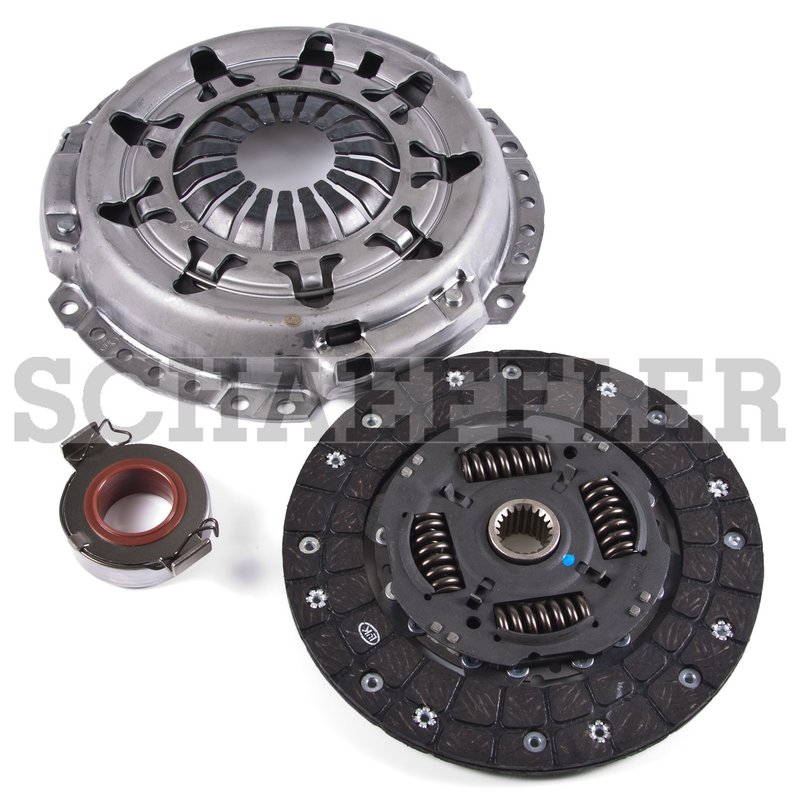

Luk 16-113 Clutch Kit
| Brand | Luk 16-113 |
|---|---|
| Clutch Diameter | 10-3/8" |
| Clutch Disc Diameter | 10-1/2" |
| Clutch Disc Spline Quantity | 21 |
| Clutch Plate Facing Outer Diameter | 8-3/8" |
| Input Shaft Diameter | 1" |
| Kit contents | Cover Assembly, Clutch Disc, Release Bearing, all Necessary Pilots, Accessory Pack |
| Number of clutch disc springs | 0 |
| Pressure Plate Type | Push Type Diaphragm |
| Fits | Toyota and Pontiac · 12 vehicles |
OE supplier pedigree. Developed to meet original-equipment performance specifications.
Complete kit. Includes the clutch disc, release bearing, pilots, and accessory pack.
Push-type diaphragm. Engineered for smooth, consistent clutch engagement.
Cross-references AMS Automotive 16-113, Sachs K70601-01 and 061-16113 for the same application. See all 7.
LuK 16-113 Clutch Kit Overview
LuK 16-113 is a transmission clutch kit for select Toyota Corolla, Toyota Matrix, and Pontiac Vibe applications. It combines OE-style clutch components with application-specific specifications for a direct replacement service on manual transmission vehicles.
- Push type diaphragm pressure plate for consistent pedal feel
- 10-1/2" clutch disc diameter with 21-spline hub
- 10-3/8" clutch diameter and 8-3/8" clutch plate facing outer diameter
- 1" input shaft diameter specification
- Kit contents include cover assembly, clutch disc, release bearing, all necessary pilots, and accessory pack
- OE-focused design from LuK, an original-equipment supplier
Application Details
Built around the specifications used for the listed vehicles, this LuK 16-113 clutch kit supports proper engagement and release characteristics for manual transmission service. It is a fitment-based replacement for 2009-2013 Toyota Corolla, 2009-2013 Toyota Matrix, and 2009-2010 Pontiac Vibe. This part cross-references Sachs K70601-01 for the same application.
Common Repair Uses
- Clutch slip during acceleration
- Hard shifting or incomplete clutch release
- Chatter, shudder, or uneven take-up
- Worn clutch disc or pressure plate surfaces
- Noisy release bearing operation
Installation Notes
Verify transmission input shaft diameter, clutch disc spline count, and pressure plate style before installation. Inspect the flywheel, pilot area, and hydraulic or cable release components for wear while the transmission is removed. Follow factory service procedures for alignment, torque sequence, and break-in requirements.
Quality Assurance
LuK develops OE performance specifications for individual vehicle applications and manufactures a high level of its own components in-house. That OE-supplier background supports consistent fit and function for the listed Toyota Corolla, Toyota Matrix, and Pontiac Vibe applications. Part number 16-113 is built for application-specific replacement service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2013 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2012 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2012 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2011 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2011 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2010 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2010 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2010 | Toyota | Matrix | 1.8L | L4 | N/A | — |
| 2009 | Pontiac | Vibe | 1.8L | L4 | N/A | — |
| 2009 | Toyota | Corolla | 1.8L | L4 | N/A | — |
| 2009 | Toyota | Matrix | 1.8L | L4 | N/A | — |
