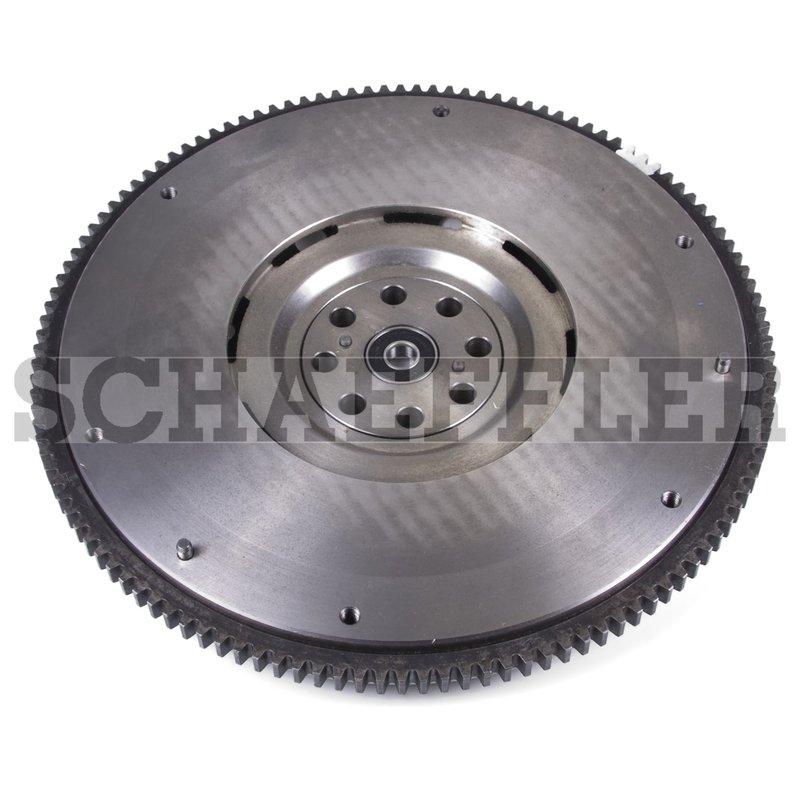

Luk LFW270 Clutch Flywheel

LuK LFW270 Clutch Flywheel Overview

The LuK LFW270 clutch flywheel is a direct-fit replacement for select Subaru applications, including Legacy, Outback, and Baja models. Built to OE specifications, it provides the smooth, flat clutch contact surface needed for consistent clutch engagement and drivability.

For Subaru Legacy and Subaru Outback clutch service, replacing the flywheel at the same time as the clutch set is a practical way to restore proper operation without resurfacing an old unit.

Key Features

• Part number: LFW270
• Flywheel diameter: 25 in. (9.842 in. listed)
• Flywheel inner diameter: 14.7 in. (5.787 in. listed)
• 124-tooth ring gear
• Zero cup depth / step height
• Manufactured new, not remanufactured
• Built to OE specifications, including ring gear and dowel pins

Detailed Description

The LuK LFW270 is a clutch flywheel engineered for OE-style fit and function on select Subaru Legacy, Outback, and Baja vehicles. As a critical clutch interface component, the flywheel must remain flat and true so the clutch disc can engage evenly. This replacement flywheel is a smart alternative to resurfacing when the original surface is worn, heat-checked, or no longer within service limits. The LFW270 is also cross-referenced to ACI 88270 for the same application.

Compatible With 2003 Subaru Baja, 2003 Subaru Legacy, 2003 Subaru Outback, 2004 Subaru Baja, 2004 Subaru Legacy, 2004 Subaru Outback, 2004-2006 Subaru Baja, and 2007-2009 Subaru Legacy and Subaru Outback. The LuK LFW270 is a direct replacement choice for Subaru clutch repair work where OE dimensions and tooth count matter.

What It Helps Address

• Clutch chatter caused by an uneven flywheel surface
• Judder or vibration during clutch engagement
• Heat spotting, scoring, or glazing on the flywheel face
• Noise or wear related to an incorrect or damaged ring gear
• Repeat clutch issues after installing a new clutch on a worn flywheel

Installation Notes and Tips

Inspect the clutch assembly, pilot components, and rear main seal before installation. Verify flywheel diameter, tooth count, and step height against the removed part to confirm proper Subaru Legacy, Outback, or Baja application. Clean all mating surfaces thoroughly and follow the vehicle manufacturer’s torque sequence and service procedures during installation.

Quality Assurance

LuK manufactures this flywheel new to OE specifications, with attention to the ring gear and dowel pin details required for proper clutch alignment and operation. It is not remanufactured.
