Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

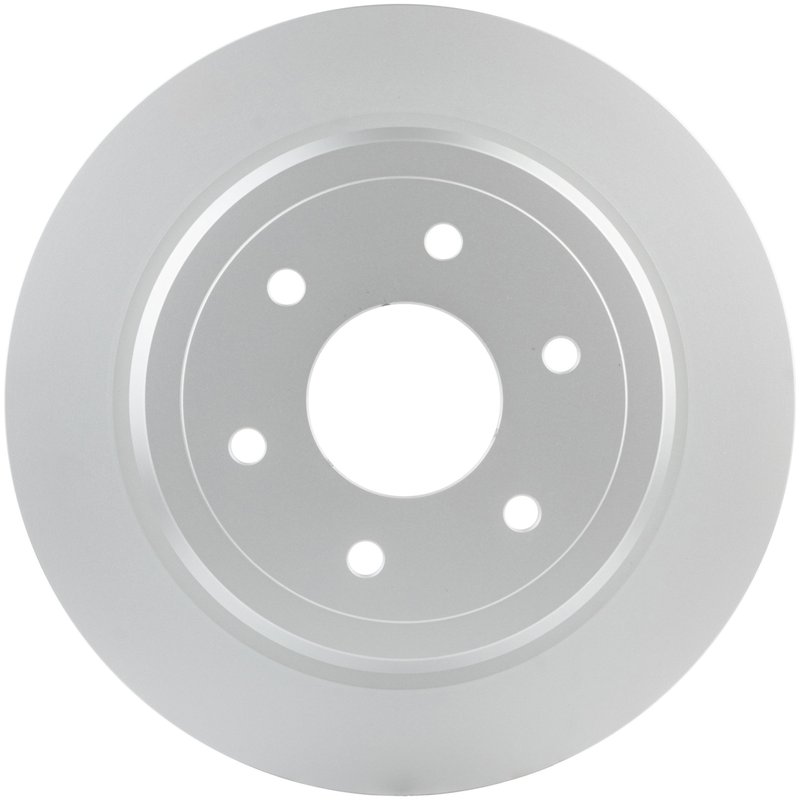

MAGMA PSR425127 Disc Brake Rotor - Rear
| Brand | MAGMA PSR425127 |
|---|---|
| Position | Rear |
| Discard Thickness | 28.5 |
| Nominal Thickness | 30 |
| Inside Diameter | 210 |
| Overall Height | 91.4 |
| Outside Diameter | 365 |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 82.1 |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Circle Diameter | 139.7 |
| Product line | MAGMA Pro-Series Rotor |
| Fits | Nissan · 9 vehicles |
Vented design. Helps manage heat through the rotor body during braking.
Precision dimensions. 365 mm outside diameter with 30 mm nominal thickness.
Pro-Series rotor. MAGMA product line for disc brake rotor applications.
Cross-references DuraGo BR901428, Dynamic Friction Company 604-67109 and Raybestos Brakes 982036 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Product Overview
The MAGMA Pro-Series Rotor PSR425127 is a vented disc brake rotor built for rear brake service on compatible heavy-duty applications. It is engineered with a 365 mm outside diameter, 30 mm nominal thickness, and a 28.5 mm discard thickness for the specified fitment.
Compatible With 2016-2024 Nissan TITAN XD, rear. This rotor uses a 6-lug pattern with a 139.7 mm bolt circle and an 82.1 mm center hole, matching the listed application requirements for the Nissan TITAN XD.
Key Features
- Vented rotor design for improved heat management during braking.
- 365 mm outside diameter with 210 mm inside diameter.
- 30 mm nominal thickness and 28.5 mm discard thickness.
- 6-lug configuration with 139.7 mm stud circle diameter.
- Center hole diameter measures 82.1 mm.
- Part number PSR425127 for identification and ordering.
Detailed Description
MAGMA Pro-Series Rotor PSR425127 is a rear disc brake rotor specified for 2016-2024 Nissan TITAN XD applications. The vented construction supports consistent brake performance by allowing air to move through the rotor body, while the dimensional specifications align with the listed fitment. This part cross-references DuraGo BR901428 and Raybestos Brakes 982036 for the same application.
What It Is Used For
- Replacing a worn rear brake rotor on a Nissan TITAN XD.
- Addressing brake pulsation caused by rotor wear or thickness variation.
- Restoring proper braking surface contact after scoring or heat damage.
- Matching the original rotor dimensions for the listed rear application.
Installation Notes and Tips
Verify rotor diameter, thickness, center hole size, and lug pattern before installation. Confirm rear application and compare the existing rotor to the listed specifications for the Nissan TITAN XD. Inspect brake pads, caliper condition, and hub surfaces during service to ensure proper brake system operation.
Quality Assurance
MAGMA Pro-Series Rotor identifies a product line focused on brake rotor applications. Use the part number PSR425127 to confirm the correct rotor for the listed fitment before installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Nissan | TITAN XD | Rear | MAGMA Pro-Series Rotor |
| 2023 | Nissan | TITAN XD | Rear | MAGMA Pro-Series Rotor |
| 2022 | Nissan | TITAN XD | Rear | MAGMA Pro-Series Rotor |
| 2021 | Nissan | TITAN XD | Rear | MAGMA Pro-Series Rotor |
| 2020 | Nissan | TITAN XD | Rear | MAGMA Pro-Series Rotor |
| 2019 | Nissan | TITAN XD | Rear | MAGMA Pro-Series Rotor |
| 2018 | Nissan | TITAN XD | Rear | MAGMA Pro-Series Rotor |
| 2017 | Nissan | TITAN XD | Rear | MAGMA Pro-Series Rotor |
| 2016 | Nissan | TITAN XD | Rear | MAGMA Pro-Series Rotor |
| No rows match your filter. | ||||
