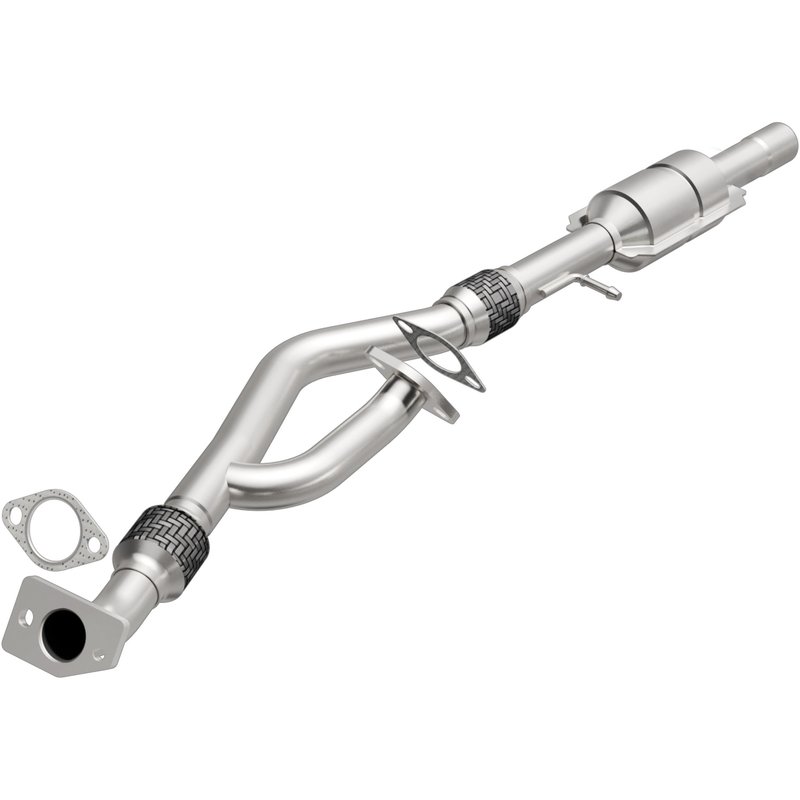

MagnaFlow 23859 Catalytic Converter
| Brand | MagnaFlow 23859 |
|---|---|
| Mounting Hardware Included | Yes |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Tube Material | Stainless steel |
| Inlet Type | Bolt-on |
| Outlet Type | Clamp-on |
| Heat Shield Attached | No |
| Body Material | Stainless steel |
| Substrate Material | Ceramic |
| Inlet Gasket Included | No |
| Inlet Mounting Hardware Included | No |
| Outlet Mounting Hardware Included | No |
| Overall Length | 49.25 |
| Air Tube Count | 0 |
| Sensor Port Count | 0 |
| Air Tube Adaptable | No |
| Clamp Included | No |
| Converter Quantity | 1 |
| Finish | Stainless steel |
| Hangers Included | Yes |
| Heat Shield Material | None |
| Main Piping Diameter | 2 |
| Oxygen Sensor Location | None |
| Series | Hm grade |
| Subtitle | Federal / epa compliant |
| Title | Hm grade direct-fit |
| Type | Direct-fit |
| Product line | Direct-Fit HM Grade Federal (Exc. CA) |
| Fits | Hyundai · 4 vehicles |
Direct-fit replacement. Bolt-on install with no cutting or welding required.
Corrosion-resistant stainless steel. Stands up to exhaust heat and road exposure.
OE-style spun body. Laser-fused construction helps reduce leak points.
Cross-references 28610-26200 and 2861026200 for the same application. See all 2.
Direct-Fit Catalytic Converter for Santa Fe
MagnaFlow 23859 is a direct-fit catalytic converter for the 2001-2004 Hyundai Santa Fe, built for Federal/EPA-compliant OBDII applications outside California. It is engineered to replace OE part 28610-26200 and restore proper exhaust flow with a bolt-on, no-cut installation.
The MagnaFlow HM Grade Direct-Fit line focuses on OE-style fitment and straightforward replacement. For shoppers searching for a 2001-2004 Hyundai Santa Fe catalytic converter replacement, part 23859 is built with stainless steel construction, a ceramic substrate, and a spun-body design that mirrors the original layout.
Key Features
- Fits 2001-2004 Hyundai Santa Fe
- MagnaFlow part number 23859
- HM Grade Direct-Fit Federal / EPA Compliant design
- Specific-fit replacement for OE part 28610-26200
- Stainless steel tube and body construction
- Ceramic substrate
- Bolt-on inlet and clamp-on outlet configuration
- Hangers included for installation support
- No oxygen sensor ports
- No heat shield attached
Detailed Description
MagnaFlow 23859 is a direct-fit catalytic converter designed for the 2001-2004 Hyundai Santa Fe and built to meet Federal emissions requirements for EPA-registered OBDII vehicles with Federal/EPA emission systems. The compact, low-mass spun-body construction is paired with mandrel-bent stainless steel tubing to support proper exhaust routing and OE-style fitment. This part cross-references OE number 28610-26200 for the same application.
Because the converter is vehicle-specific, it is a strong match for buyers searching for a Hyundai Santa Fe catalytic converter replacement, a MagnaFlow 23859 direct-fit converter, or an OE-style exhaust emissions repair part for 2001-2004 Santa Fe models.
Common Issues This Part Can Address
- Check engine light related to catalytic converter efficiency
- Failed emissions inspection caused by a worn converter
- Exhaust leaks at the converter connection points
- Restricted exhaust flow from a deteriorated converter
- Replacement needs for a damaged or corroded OE unit
Installation Notes and Tips
Install using the proper tools and follow the vehicle-specific exhaust service procedure. No cutting or welding is required for this direct-fit design. Use the included gaskets to help achieve a proper seal and reduce the chance of exhaust leaks. Confirm the vehicle is a 2001-2004 Hyundai Santa Fe with Federal/EPA emissions equipment before ordering.
Quality Assurance
MagnaFlow uses 3D scanning and metrology during product development to help match OE fit and function. The stainless steel construction is selected for corrosion resistance, and the single laser fusion weld design is used to reduce leak points in the converter body.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Hyundai | Santa Fe | 2.7L | V6 | N/A | Direct-Fit HM Grade Federal (Exc. CA) |
| 2003 | Hyundai | Santa Fe | 2.7L | V6 | N/A | Direct-Fit HM Grade Federal (Exc. CA) |
| 2002 | Hyundai | Santa Fe | 2.7L | V6 | N/A | Direct-Fit HM Grade Federal (Exc. CA) |
| 2001 | Hyundai | Santa Fe | 2.7L | V6 | N/A | Direct-Fit HM Grade Federal (Exc. CA) |
