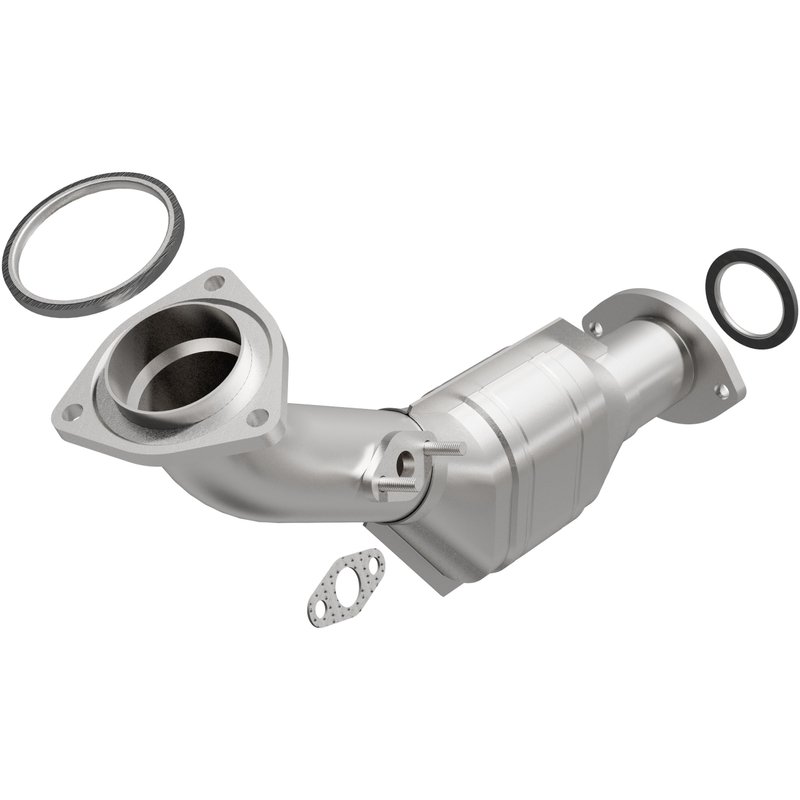

MagnaFlow 447185 Catalytic Converter - Front
| Brand | MagnaFlow 447185 |
|---|---|
| Position | Front |
| Mounting Hardware Included | Yes |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Tube Material | Stainless steel |
| Inlet Type | Bolt-on |
| Outlet Type | Bolt-on |
| Heat Shield Attached | No |
| Body Material | Stainless steel |
| Substrate Material | Ceramic |
| Inlet Gasket Included | Yes |
| Overall Length | 17.75 |
| Air Tube Count | 0 |
| Air Tube Adaptable | No |
| Clamp Included | No |
| Converter Quantity | 1 |
| Finish | Stainless steel |
| Hangers Included | No |
| Heat Shield Material | None |
| Oxygen Sensor Location | Pre converter |
| Type | Direct-fit |
| Product line | Direct-Fit CALIFORNIA OBDII CONVERTERS |
| Fits | Toyota · 10 vehicles |
Direct-fit replacement. Bolt-on design with no cutting or welding required.
Stainless steel construction. Helps resist corrosion for long-term durability.
CARB compliant. Meets California Air Resource Board requirements.
Cross-references 17410-07040, 17410-07041 and 1741007040 for the same application. See all 4.
California OBDII Direct-Fit Converter
MagnaFlow 447185 is a California Grade, CARB-compliant direct-fit catalytic converter for select 2000-2004 Toyota Tacoma and 2000-2004 Toyota Tundra front applications. It is built for bolt-on replacement, with stainless steel construction and a ceramic substrate to support OE-style fitment and emissions performance.
Designed for the MagnaFlow Direct-Fit CALIFORNIA OBDII CONVERTERS line, this part focuses on vehicle-specific replacement fitment for California and CARB-restricted states. The design uses mandrel-bent tubing to reduce flow restriction, and the part is engineered from 3D scanning data to match original equipment dimensions and function.
- Fits 2000-2004 Toyota Tacoma, front
- Fits 2000-2004 Toyota Tundra, front
- CARB-compliant replacement for listed California applications
- Stainless steel body and tubing for corrosion resistance
- Ceramic substrate with bolt-on inlet and outlet connections
- Includes inlet gasket and mounting hardware
- Interchanges with OE part numbers 17410-07040 and 17410-07041
Detailed Product Overview
MagnaFlow 447185 is a direct-fit catalytic converter built for the front position on select Toyota trucks. It is designed to meet or exceed California Air Resources Board requirements for the listed vehicles, making it a practical replacement when you need emissions-system service on a 2000-2004 Toyota Tacoma or 2000-2004 Toyota Tundra. The stainless steel construction helps resist corrosion, while the bolt-on design supports a cleaner replacement process without cutting or welding.
This part cross-references OE numbers 17410-07040 and 17410-07041 for the same application.
Common Problems This Part Can Address
- Check engine light caused by catalytic converter efficiency faults
- Failed emissions inspection on a CARB-regulated vehicle
- Rusted or leaking factory converter connections
- Exhaust restriction from a worn or damaged converter
- Fitment issues when replacing an original front converter on Toyota Tacoma or Toyota Tundra
Installation Notes
Installation is straightforward for a direct-fit exhaust replacement and does not require cutting or welding. Use the included gasket and hardware during installation, and verify the vehicle’s engine family and emissions certification before ordering. This converter is intended for the front position on the listed Toyota Tacoma and Toyota Tundra applications.
Quality Assurance
MagnaFlow uses 3D scanning during development to help the part fit and function like the original equipment. MagnaFlow 447185 is built to comply with CARB guidelines for the listed vehicles and is designed for legal use in California and other CARB-restricted states where applicable.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Toyota | Tacoma | 3.4L | V6 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-103; Engine Family Number 4TYXT03.4VRM; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2004 | Toyota | Tundra | 3.4L | V6 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-103; Engine Family Number 4TYXT03.4VRM; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2003 | Toyota | Tacoma | 3.4L | V6 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-103; Engine Family Number 3TYXT03.4FFP; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2003 | Toyota | Tundra | 3.4L | V6 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-103; Engine Family Number 3TYXT03.4FFP; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2002 | Toyota | Tacoma | 3.4L | V6 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-103; Engine Family Number 2TYXT03.4FFP; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2002 | Toyota | Tundra | 3.4L | V6 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-103; Engine Family Number 2TYXT03.4FFP; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2001 | Toyota | Tacoma | 3.4L | V6 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-103; Engine Family Number 1TYXT03.4FFP; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2001 | Toyota | Tundra | 3.4L | V6 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-103; Engine Family Number 1TYXT03.4FFP; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2000 | Toyota | Tacoma | 3.4L | V6 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-103; Engine Family Number YTYXT03.4FFR; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2000 | Toyota | Tundra | 3.4L | V6 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-103; Engine Family Number YTYXT03.4FFR; Direct-Fit CALIFORNIA OBDII CONVERTERS |
