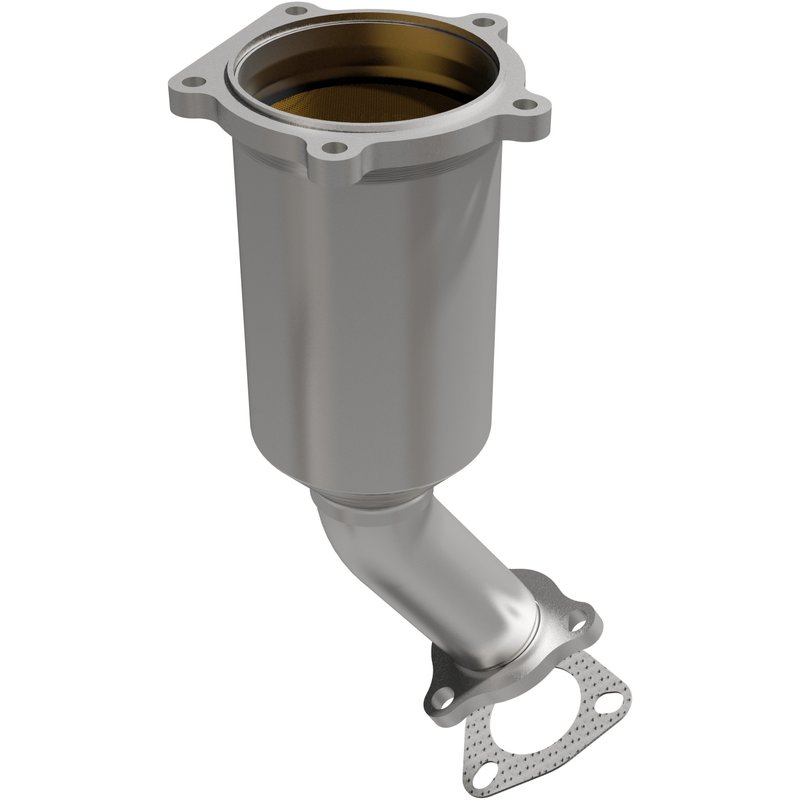

MagnaFlow 452096 Catalytic Converter - Front
| Brand | MagnaFlow 452096 |
|---|---|
| Position | Front |
| Mounting Hardware Included | Yes |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Tube Material | Stainless steel |
| Inlet Type | Bolt-on |
| Outlet Type | Bolt-on |
| Heat Shield Attached | No |
| Body Material | Stainless steel |
| Substrate Material | Ceramic |
| Outlet Gasket Included | No |
| Overall Length | 12.625 |
| Air Tube Count | 0 |
| Sensor Port Count | 0 |
| Air Tube Adaptable | No |
| Clamp Included | No |
| Converter Quantity | 1 |
| Finish | Stainless steel |
| Hangers Included | No |
| Heat Shield Material | None |
| Main Piping Diameter | 2 |
| Mounting Hardware Included | Yes |
| Oxygen Sensor Location | None |
| Type | Direct-fit |
| Product line | Direct-Fit CALIFORNIA OBDII CONVERTERS |
| Fits | Nissan · 5 vehicles |
Direct-fit replacement. Installs with bolt-on connections and no cutting or welding required.
Stainless steel construction. Resists corrosion for dependable exhaust service.
CARB compliant. Meets California Air Resources Board requirements for legal use in restricted states.
Cross-references 208A0F4525, 14002-3S600 and 14002-3S610 for the same application. See all 9.
California OBDII Direct-Fit Converter
MagnaFlow 452096 is a California Grade, CARB-compliant direct-fit catalytic converter for the front position on select 2000-2004 Nissan Frontier models. It is built for a bolt-on replacement and uses stainless steel construction with a ceramic substrate to restore exhaust flow and emissions control without cutting or welding.
Designed for the 2000-2004 Nissan Frontier, this MagnaFlow California OBDII converter follows the OE spun-body layout for a direct replacement that aligns with factory mounting points. The compact design, mandrel-bent tubing, and laser-fusion weld construction are used to support proper fitment and reduce leak points. Part number 452096 also cross-references OE numbers such as 14002-3S600 and 14002-3S610 for the same application.
Key Features
- Direct-fit catalytic converter for the front exhaust position
- CARB-compliant California Grade design for listed vehicles
- Stainless steel body and tubing for corrosion resistance
- Ceramic substrate with bolt-on inlet and outlet connections
- OE-style spun body construction with laser-fusion weld
- Includes mounting hardware for installation
- Fits 2000-2004 Nissan Frontier, front
Fitment Details
- Fits 2004 Nissan Frontier, front. Notes: Certification Level: LEV1 LEV; CARB Executive Order D-193-124; Engine Family Number 4NSXT02.4N4A.
- Fits 2003 Nissan Frontier, front. Notes: Certification Level: LEV1 LEV; CARB Executive Order D-193-124; Engine Family Number 3NSXT02.4C4A.
- Fits 2002 Nissan Frontier, front. Notes: Certification Level: LEV1 LEV; CARB Executive Order D-193-124; Engine Family Number 2NSXT02.4C4B.
- Fits 2001 Nissan Frontier, front. Notes: Certification Level: LEV1 LEV; Split Date From: From 6/1/2001; CARB Executive Order D-193-124; Engine Family Number 1NSXT02.4C4A.
- Fits 2000 Nissan Frontier, front. Notes: Certification Level: TLEV; Split Date From: From 6/1/2001; CARB Executive Order D-193-124; Engine Family Number YNSXT02.423A.
What It Helps Address
- Check engine light concerns related to a failed front catalytic converter
- Exhaust leaks at the converter connection points
- Restricted exhaust flow from a worn or damaged converter
- Emissions compliance issues on listed California-certified applications
- Fitment problems from non-direct replacement exhaust parts
Installation Notes
This direct-fit converter is designed for bolt-on installation using the proper tools, with no cutting or welding required. Use the included gaskets to help achieve a proper seal and reduce the chance of exhaust leaks. Confirm the vehicle’s year, engine family, and CARB Executive Order details before installation on a Nissan Frontier.
Quality Assurance
MagnaFlow uses 3D scanning during development to match OE dimensions and function, and this converter is certified for legal use in California and other CARB-restricted states on the listed vehicles. Part number 452096 is built to meet or exceed California Air Resources Board requirements for the specified fitment.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2004 | Nissan | Frontier | 2.4L | L4 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-124; Engine Family Number 4NSXT02.4N4A; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2003 | Nissan | Frontier | 2.4L | L4 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-124; Engine Family Number 3NSXT02.4C4A; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2002 | Nissan | Frontier | 2.4L | L4 | Front | Certification Level : LEV1 LEV; CARB Executive Order D-193-124; Engine Family Number 2NSXT02.4C4B; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2001 | Nissan | Frontier | 2.4L | L4 | Front | Certification Level : LEV1 LEV; Split Date From: From 6/1/2001; CARB Executive Order D-193-124; Engine Family Number 1NSXT02.4C4A; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2000 | Nissan | Frontier | 2.4L | L4 | Front | Certification Level : TLEV; Split Date From: From 6/1/2001; CARB Executive Order D-193-124; Engine Family Number YNSXT02.423A; Direct-Fit CALIFORNIA OBDII CONVERTERS |
