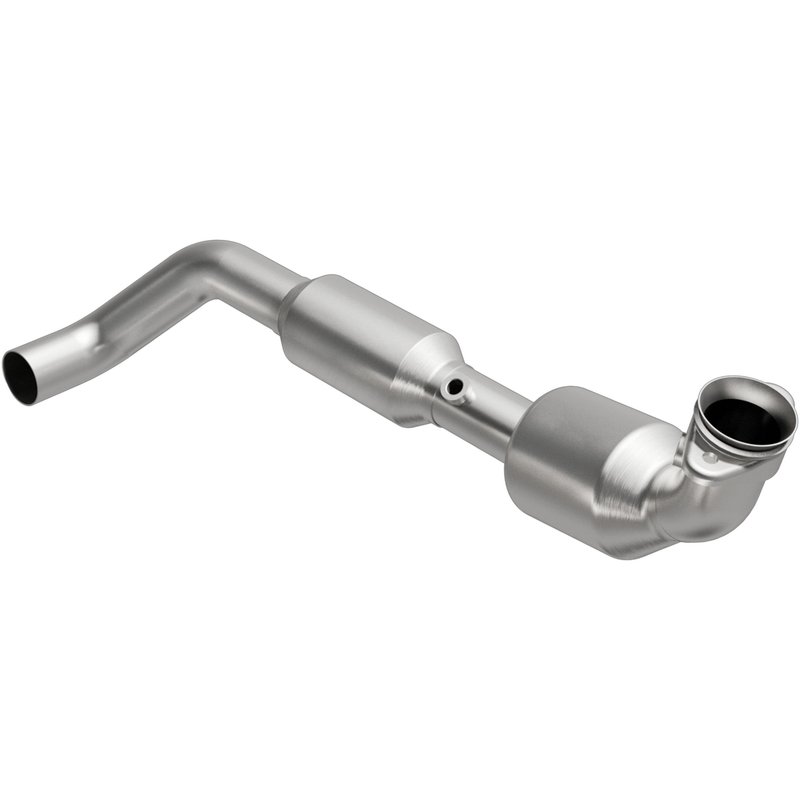

MagnaFlow 5481705 Catalytic Converter - Left
| Brand | MagnaFlow 5481705 |
|---|---|
| Position | Left |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Tube Material | Stainless steel |
| Inlet Type | Bolt-on |
| Outlet Type | Clamp-on |
| Heat Shield Attached | No |
| Inlet Quantity | 1 |
| Body Material | Stainless steel |
| Outlet Quantity | 1 |
| Substrate Material | Ceramic |
| Inlet Gasket Included | No |
| Inlet Mounting Hardware Included | No |
| Outlet Gasket Included | No |
| Outlet Mounting Hardware Included | No |
| Overall Length | 33.875 |
| Air Tube Count | 0 |
| Sensor Port Count | 2 |
| Air Tube Adaptable | No |
| Body Height Position Front | 5 |
| Body Height Position Rear | 4 |
| Body Length Position Front | 7.875 |
| Body Length Position Rear | 9 |
| Body Shape | Round |
| Body Type | Spun |
| Body Width Position Front | 5 |
| Body Width Position Rear | 4 |
| Clamp Included | No |
| Converter Quantity | 2 |
| Finish | Stainless steel |
| Product line | Direct-Fit CALIFORNIA OBDII CONVERTERS |
| Fits | Ford · 2 vehicles |
Direct-fit replacement. Installs with bolt-on and clamp-on connections, no cutting or welding required.
Corrosion-resistant stainless steel. Helps the converter stand up to harsh exhaust conditions.
CARB compliant. Meets California Air Resources Board requirements for legal use in restricted states.
California OBDII Direct-Fit Converter
MagnaFlow 5481705 is a California Grade CARB-compliant direct-fit catalytic converter built for the 2004-2005 Ford F-150, left position. It is engineered to replace the original exhaust component with a bolt-on, no-cutting, no-welding installation when used with the proper tools.
Part of MagnaFlow’s Direct-Fit CALIFORNIA OBDII CONVERTERS line, this converter is designed around OE-style fitment and emissions compliance for listed California and CARB-restricted applications. The MagnaFlow 5481705 uses stainless steel construction, a ceramic substrate, and a spun-body design to match factory packaging and exhaust routing.
- Fits 2004 Ford F-150, left
- Fits 2005 Ford F-150, left
- CARB-compliant replacement for listed California and CARB-restricted vehicles
- Direct-fit design with bolt-on inlet and clamp-on outlet
- Stainless steel body and tubing for corrosion resistance
- OE-style spun body with laser fusion weld to reduce leak points
- Pre- and post-converter oxygen sensor locations
- Designed with 2.625-inch inlet and 2.5-inch outlet dimensions
Fitment and Product Details
This MagnaFlow catalytic converter is built specifically for the Ford F-150 2004-2005 left-side application listed in the fitment data. The compact, low-mass construction supports thermal efficiency, while the mandrel-bent stainless tubing helps maintain exhaust flow characteristics. MagnaFlow 5481705 is a direct replacement for the original equipment-style converter on the specified Ford F-150 models.
This part cross-references Walker (e.g., 5481705, 5481705) for the same application.
What This Part Helps Address
- Check engine light caused by catalytic converter efficiency faults
- Failed emissions inspection on a CARB-regulated vehicle
- Corrosion-related exhaust deterioration at the converter body
- Leak concerns at the converter seam or connection points
- Factory converter replacement on a 2004-2005 Ford F-150, left side
Installation Notes
Install using the proper tools and verify all sensor and flange connections before final tightening. This direct-fit unit uses a bolt-on inlet and clamp-on outlet, and no cutting or welding is required for installation on the listed vehicle applications. Confirm the vehicle’s emissions certification and engine family against the fitment notes before ordering.
Quality Assurance
MagnaFlow uses 3D scanning and metrology during development to match OE fit and function. This converter is designed to meet or exceed California Air Resources Board requirements and has undergone additional testing for legal use in California and other CARB-restricted states on the listed vehicles.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2005 | Ford | F-150 | RWD | 5.4L | V8 | Left | Certification Level : LEV2 LEV; CARB Executive Order D-193-146; Engine Family Number 5FMXT05.4R4P; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2004 | Ford | F-150 | RWD | 5.4L | V8 | Left | Certification Level : LEV2 LEV; CARB Executive Order D-193-146; Engine Family Number 4FMXT05.4R4P; Direct-Fit CALIFORNIA OBDII CONVERTERS |
