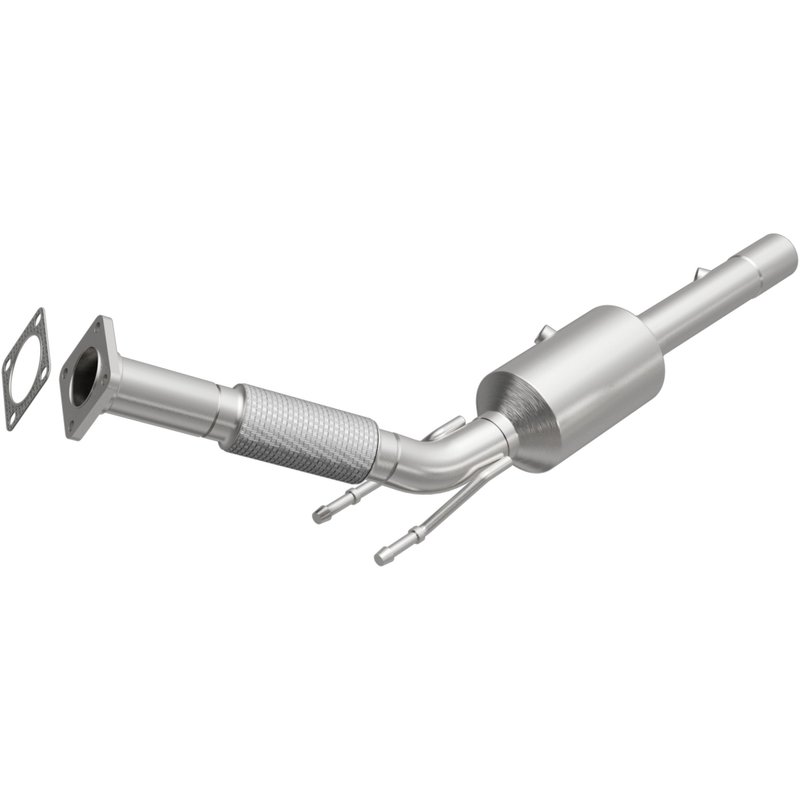

MagnaFlow 5561990 Catalytic Converter
| Brand | MagnaFlow 5561990 |
|---|---|
| Mounting Hardware Included | Yes |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Tube Material | Stainless steel |
| Inlet Type | Bolt-on |
| Outlet Type | Clamp-on |
| Heat Shield Attached | No |
| Body Material | Stainless steel |
| Substrate Material | Ceramic |
| Overall Length | 38.75 |
| Air Tube Count | 0 |
| Sensor Port Count | 1 |
| Sensor Port Count | 2 |
| Air Tube Adaptable | No |
| Clamp Included | No |
| Converter Quantity | 1 |
| Finish | Stainless steel |
| Gasket Included | Yes |
| Hangers Included | Yes |
| Heat Shield Material | None |
| Main Piping Diameter | 2.25 |
| Oxygen Sensor Location | Midbed and post converter |
| Type | Direct-fit |
| Product line | Direct-Fit CALIFORNIA OBDII CONVERTERS |
| Fits | Volkswagen · 6 vehicles |
Direct-fit replacement. Installs with no cutting or welding required.
Stainless steel construction. Resists corrosion for long-lasting exhaust performance.
CARB compliant. Meets California Air Resources Board requirements.
Cross-references 1K0 254 503 C, 1K0 254 503 S and 1K0 254 506 T for the same application. See all 24.
California OBDII Direct-Fit Converter
MagnaFlow 5561990 is a California Grade, CARB-compliant direct-fit catalytic converter built for specific Volkswagen applications. It is designed to help keep the check engine light off while restoring proper exhaust flow and emissions control on the listed 2005-2009 Volkswagen Jetta and 2006-2009 Volkswagen Rabbit models.
As part of MagnaFlow’s Direct-Fit CALIFORNIA OBDII CONVERTERS line, this converter is engineered for OE-style fitment with no cutting or welding required. The spun-body stainless steel construction, ceramic substrate, and mandrel-bent tubing support a clean installation and a factory-style replacement path for emissions service.
Key Features
- Direct-fit catalytic converter for specific Volkswagen Jetta and Volkswagen Rabbit applications
- CARB-compliant design for legal use in California and other CARB-restricted states on listed vehicles
- Stainless steel body and tubing for corrosion resistance
- Ceramic substrate for emissions conversion performance
- OE-style spun body design with a single laser fusion weld to reduce leak points
- Includes gasket and hangers for installation support
- 2.25-inch main piping diameter
- Oxygen sensor locations: midbed and post converter
Fitment and Application
Compatible with 2005-2009 Volkswagen Jetta and 2006-2009 Volkswagen Rabbit applications listed for CARB Executive Order D-193-141. Fits 2005 Volkswagen Jetta, N/A; Fits 2006 Volkswagen Jetta, N/A; Fits 2007 Volkswagen Jetta, N/A; Fits 2008 Volkswagen Jetta, N/A; Fits 2009 Volkswagen Jetta, N/A; Fits 2006 Volkswagen Rabbit, N/A; Fits 2007 Volkswagen Rabbit, N/A; Fits 2008 Volkswagen Rabbit, N/A; Fits 2009 Volkswagen Rabbit, N/A.
This part cross-references OE numbers 1K0 254 511 and 1K0 254 510 TX for the same application. Part number 5561990 is also listed with additional OE interchange references for these Volkswagen platforms.
What This Converter Helps Address
- Check engine light concerns related to catalytic converter efficiency
- Failed emissions inspection on the listed Volkswagen applications
- Corrosion-related replacement needs on aging factory exhaust components
- Exhaust leaks at worn converter connections or seals
- Fitment issues caused by non-direct replacement parts
Installation Notes
Install using the proper tools and follow the vehicle-specific service procedure. This direct-fit design does not require cutting or welding, and the included gasket and hangers help support a cleaner installation. Verify sensor placement, inlet and outlet orientation, and CARB application coverage before installation. Part number 5561990 is intended for the listed Volkswagen Jetta and Volkswagen Rabbit fitments only.
Quality Assurance
MagnaFlow uses 3D scanning during development to match OE dimensions and function more closely. The converter is built to meet or exceed California Air Resources Board requirements and has undergone additional testing for CARB compliance on the listed vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Volkswagen | Jetta | 2.5L | L5 | N/A | Certification Level : LEV2 ULEV; CARB Executive Order D-193-141; Engine Family Number 9VWXV02.5253; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2009 | Volkswagen | Jetta | 2.5L | L5 | N/A | Certification Level : LEV2 ULEV; CARB Executive Order D-193-141; Engine Family Number 9VWXV02.5U35; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2008 | Volkswagen | Jetta | 2.5L | L5 | N/A | Certification Level : LEV2 ULEV; CARB Executive Order D-193-141; Engine Family Number 8VWXV02.5253; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2007 | Volkswagen | Jetta | 2.5L | L5 | N/A | Certification Level : LEV2 ULEV; CARB Executive Order D-193-141; Engine Family Number 7VWXV02.5253; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2006 | Volkswagen | Jetta | 2.5L | L5 | N/A | Certification Level : LEV2 ULEV; CARB Executive Order D-193-141; Engine Family Number 6VWXV02.5253; Direct-Fit CALIFORNIA OBDII CONVERTERS |
| 2005 | Volkswagen | Jetta | 2.5L | L5 | N/A | Certification Level : LEV2 ULEV; CARB Executive Order D-193-141; Engine Family Number 5VWXV02.5253; Direct-Fit CALIFORNIA OBDII CONVERTERS |
