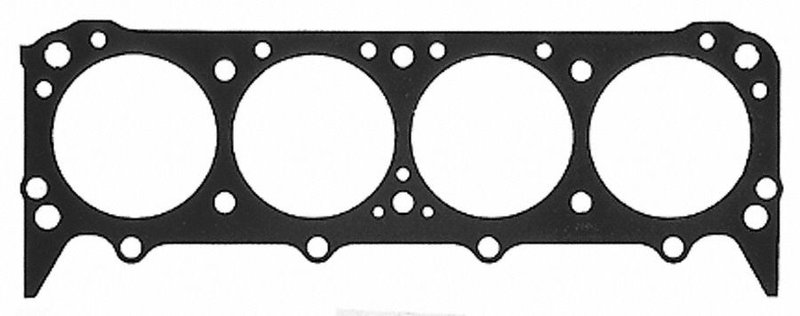

Mahle 3467 Engine Cylinder Head Gasket

Mahle 3467 Cylinder Head Gasket

The Mahle 3467 engine cylinder head gasket is a composite OEM-standard sealing component built for dependable cylinder head sealing in compatible Jeep applications. It uses a 1.27 mm thickness and a 108.46 mm cylinder bore diameter to match the specified engine setup.

Key Features

• Composite cylinder head gasket material for OEM-standard service replacement
• 1.27 mm thickness for proper sealing stack-up
• 108.46 mm cylinder bore diameter
• Head gasket only; gasket sealant is not included
• Manufactured by Mahle, a brand known for OE-level sealing products

Product Details

Mahle 3467 is a composite engine cylinder head gasket made for sealing the combustion chamber, coolant passages, and oil passages between the cylinder head and engine block. In Jeep Grand Wagoneer, Jeep J10, Jeep J20, Jeep Cherokee, and Jeep Wagoneer applications, this gasket supports a precise OEM-standard repair when the original head gasket has failed or the engine has been rebuilt. This part cross-references FEL-PRO 8266 PT-1 for the same application.

Compatible With 1984-1991 Jeep Grand Wagoneer, N/A; 1974-1988 Jeep J10, N/A; 1974-1988 Jeep J20, N/A; 1974-1983 Jeep Cherokee, N/A; and 1972-1983 Jeep Wagoneer, N/A. Mahle 3467 is a direct-fit sealing solution for these listed vehicles when the engine specification matches the cataloged application.

Common Repair Uses

• Head gasket leakage causing coolant loss
• Compression loss from a failed cylinder head seal
• Oil and coolant mixing at the head-to-block interface
• Overheating related to combustion gas leakage
• Engine rebuilds requiring a replacement cylinder head gasket

Installation Notes

Clean and inspect the cylinder head and block mating surfaces before installation. Replace cylinder head bolts when using a composite engine cylinder head gasket, as noted in the fitment data. Verify bore diameter, thickness, and engine application before assembly to ensure proper sealing performance.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide for sealing applications that require consistent fit and material quality. This part is built to OEM-standard specifications for the listed Jeep applications.
