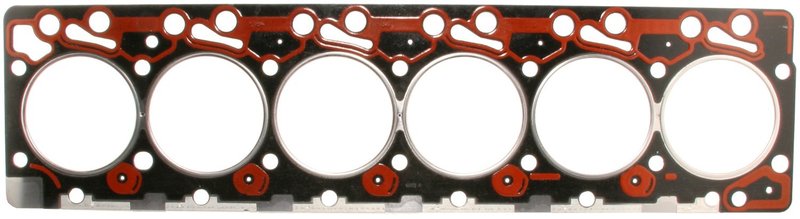

Mahle 4068E Engine Cylinder Head Gasket
| Brand | Mahle 4068E |
|---|---|
| Material | Composite |
| Thickness | 0.08 |
| Thickness | 2.06 |
| Cylinder Bore Diameter | 106.05 |
| Cylinder Bore Diameter | 4.18 |
| Gasket Sealant Included | No |
| Additional Package Contents | Head gasket |
| Cylinder Head Gasket Material | Composite |
| Cylinder Head Gasket Thickness | 0.50 mm oversize |
| Item Grade | Oem standard |
| Package Quantity | 1 |
| Torque To Yield | Yes |
| Fits | Dodge · 56 vehicles |
OEM standard. Built for service replacement sealing performance in demanding engine applications.
Composite construction. Provides dependable sealing with a material choice suited to head gasket service.
Oversize thickness. Specified at 0.50 mm for applications that require added gasket thickness.
Cross-references Cummins 3283339, Cummins 3918307 and FEL-PRO 9523 PT for the same application. See all 4.
$109.86Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
$109.86
Free shipping
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Cylinder Head Gasket options
Engine Cylinder Head Gasket Overview
Mahle 4068E is a composite engine cylinder head gasket built to OEM standard requirements for sealing performance. It is specified as a 0.50 mm oversize gasket and is listed for Cummins-powered Dodge Ram applications where precise head sealing matters.
Key Features
- Composite gasket material for dependable sealing under engine load.
- 0.50 mm oversize thickness for applications that require added gasket thickness.
- OEM standard item grade for service replacement use.
- No gasket sealant included.
- Torque-to-yield fastener use is noted in the fitment data.
Fitment Details
Compatible With 1989-1993 Dodge D250, N/A. Compatible With 1989-1993 Dodge D350, N/A. Compatible With 1989-1993 Dodge W250, N/A. Compatible With 1989-1993 Dodge W350, N/A. Compatible With 1994-1998 Dodge Ram 2500, N/A. Compatible With 1994-1998 Dodge Ram 3500, N/A.
This part cross-references FEL-PRO (e.g., 9523 PT) for the same application.
What It Is Used For
- Sealing the cylinder head to the engine block.
- Addressing combustion pressure loss from a worn head gasket.
- Replacing a gasket that no longer maintains proper compression sealing.
- Supporting repairs where the fitment notes call for a thicker head gasket.
Installation Notes and Tips
Fitment notes specify cylinder head bolt replacement is recommended. Confirm the engine configuration and gasket thickness before installation, and follow the service procedure for torque-to-yield fasteners. Mahle 4068E should be matched to the listed Dodge Ram, D250, D350, W250, and W350 applications exactly as shown.
Quality Assurance
MAHLE gaskets are used by OEMs and technicians worldwide and are built to OEM standard expectations for sealing reliability.
This part fits 56 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1998 | Dodge | Ram 2500 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1998 | Dodge | Ram 3500 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1997 | Dodge | Ram 2500 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1997 | Dodge | Ram 3500 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1997 | Freightliner | FL50 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1997 | Freightliner | FL60 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1997 | Freightliner | FL70 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1997 | Freightliner | FS65 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1997 | Kenworth | T300 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1996 | Dodge | Ram 2500 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1996 | Dodge | Ram 3500 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1996 | Freightliner | FL50 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1996 | Freightliner | FL60 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1996 | Freightliner | FL70 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1996 | Freightliner | FS65 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1996 | Kenworth | K300 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1996 | Kenworth | T300 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1996 | Peterbilt | 200 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1995 | Dodge | Ram 2500 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1995 | Dodge | Ram 3500 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1995 | Freightliner | FL50 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1995 | Freightliner | FL60 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1995 | Freightliner | FL70 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1995 | Kenworth | K300 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1995 | Peterbilt | 200 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1994 | Dodge | Ram 2500 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1994 | Dodge | Ram 3500 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1994 | Freightliner | FL60 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1994 | Freightliner | FL70 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1994 | Kenworth | K300 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1994 | Peterbilt | 200 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1993 | Dodge | D250 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1993 | Dodge | D350 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1993 | Dodge | W250 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1993 | Dodge | W350 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1993 | Freightliner | FL60 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1993 | Freightliner | FL70 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1993 | Peterbilt | 200 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1992 | Dodge | D250 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1992 | Dodge | D350 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1992 | Dodge | W250 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1992 | Dodge | W350 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1992 | Freightliner | FL60 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1992 | Freightliner | FL70 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1991 | Dodge | D250 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1991 | Dodge | D350 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1991 | Dodge | W250 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1991 | Dodge | W350 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1990 | Dodge | D250 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1990 | Dodge | D350 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1990 | Dodge | W250 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1990 | Dodge | W350 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1989 | Dodge | D250 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1989 | Dodge | D350 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1989 | Dodge | W250 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| 1989 | Dodge | W350 | 5.9L | L6 | 0.50mm Thicker Head Gasket; Cylinder Head Bolt Replacement Recommended; Composite |
| No rows match your filter. | |||||
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Cummins — 3283339Cummins — 3918307FEL-PRO — 9523 PTFP Diesel — FP3283339
