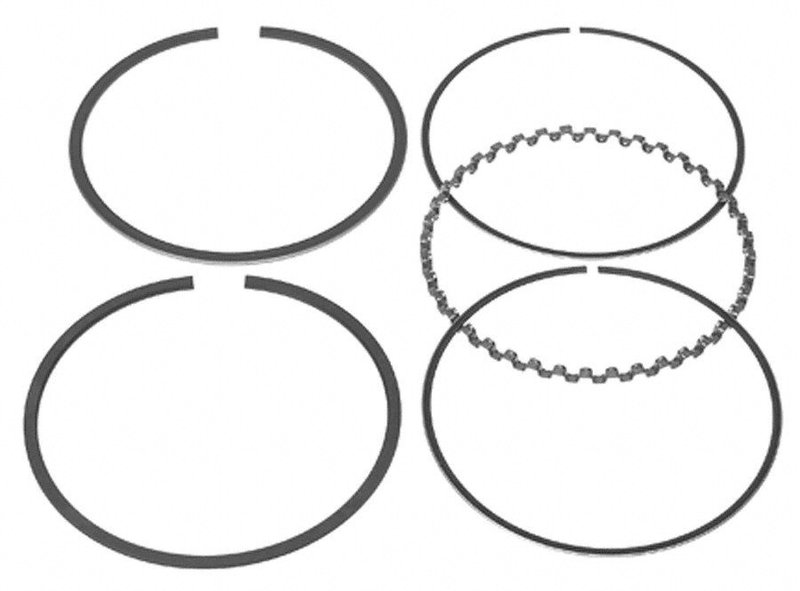

Mahle 41578 Engine Piston Ring Set

Engine Piston Ring Set for Infiniti, Mercury, and Nissan Vehicles

The Mahle 41578 engine piston ring set is designed to meet the precise specifications required for select Infiniti, Mercury, and Nissan models. Engineered with premium materials and coatings, this piston ring set ensures reliable performance and durability for your vehicle's cylinder block components.

• Bore diameter: 3.425 inches for accurate fitment
• Premium item grade for enhanced durability
• Shallow groove oil ring assembly made of stainless steel
• Oil ring assembly thickness of 2.80 mm for optimal oil control
• Chrome coating on piston ring face to reduce wear
• Standard piston ring oversize for direct replacement
• Second ring constructed from cast iron with 1.50 mm thickness
• Top ring made of carbon steel, 1.50 mm thick for effective sealing

Technical Details and Material Composition

This Mahle piston ring set (part number 41578) features a combination of materials selected for their specific roles in engine performance. The top ring is crafted from carbon steel with a 1.50 mm axial height, providing a strong seal against combustion gases. The second ring, made from cast iron and also 1.50 mm thick, assists in scraping excess oil from the cylinder walls. The oil ring assembly uses stainless steel in a shallow groove design with a 2.80 mm thickness to maintain proper lubrication without excessive oil consumption. The chrome face coating on the piston rings enhances wear resistance and extends service life.

Compatible Vehicles and Applications

This piston ring set is compatible with a range of Infiniti, Mercury, and Nissan vehicles, including:

• Infiniti 200SX, 300ZX, J30, M30, Maxima, Pathfinder, Quest, Villager
• Mercury models compatible with the specified bore diameter
• Nissan D21 and other listed models

It is designed for use in engine cylinder block components where a bore diameter of 3.425 inches is specified, making it suitable for maintenance or engine rebuilds on these vehicles.

Common Issues Addressed by This Piston Ring Set

• Reduced compression due to worn or damaged piston rings
• Excessive oil consumption caused by ineffective oil ring sealing
• Increased blow-by and engine performance loss
• Engine smoke resulting from poor piston ring sealing
• Wear and tear from standard piston ring materials and coatings

Installation Notes and Tips

Ensure the cylinder bore diameter matches the 3.425-inch specification before installation. Use proper ring compressors and follow manufacturer torque specifications during assembly. Inspect cylinder walls for wear or damage prior to installing the new piston ring set. Avoid forcing rings into place to prevent damage to the rings or piston grooves.

Quality Assurance and Warranty

Mahle piston rings are manufactured to meet OEM standards with strict quality control processes. The premium grade materials and coatings provide consistent performance and durability. While specific warranty details are not provided, Mahle products typically adhere to industry standards for reliability and fitment.
