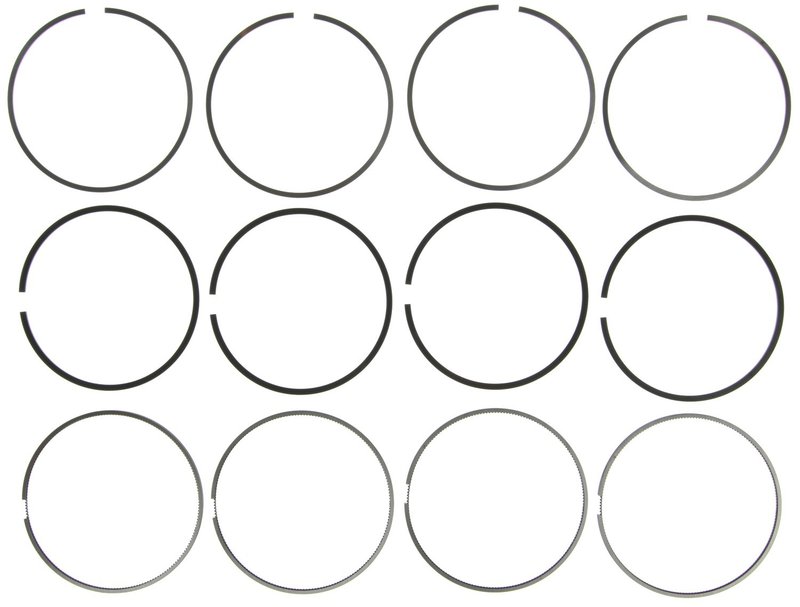

Mahle 42227.040 Engine Piston Ring Set

Overview

MAHLE 42227.040 is a premium engine piston ring set built for 0.040 in oversize applications. It is engineered around low-friction operation, controlled oil consumption, and extended service life for compatible Toyota engine rebuilds.

Key Features

• 0.040 in oversize for matched cylinder bore service.
• Top ring made from stainless steel for strength and wear resistance.
• Second ring made from cast iron for stable sealing performance.
• Oil ring assembly uses a 2-piece groove design with GNS material and coating.
• Premium-grade construction for precision engine rebuild work.

Detailed Description

MAHLE 42227.040 piston rings are built to OE-driven standards and focus on reducing friction while helping control engine oil consumption. The ring set uses a 3.7795 in bore diameter, 0.0470 in top and second ring thickness, and a 0.0787 in oil ring assembly thickness. Material selection includes stainless steel for the top ring, cast iron for the second ring, and GNS-treated oil ring components to support consistent sealing and durability. This part cross-references Hastings Piston Rings (e.g., 2C5261.040) for the same application.

For Toyota Hilux, Toyota Tacoma, Toyota Hiace, and Toyota 4Runner engine rebuilds, this MAHLE piston ring set supports oversize service where the cylinder bore has been machined for 0.040 in oversize rings. The part number 42227.040 is also useful when matching rebuild specifications to the correct bore and ring profile. MAHLE 42227.040 is a technical replacement choice for Toyota engine service where ring fitment and material consistency matter.

What It Is Used For

• Restoring cylinder sealing during engine rebuilds.
• Reducing oil consumption caused by worn rings.
• Addressing compression loss from ring wear or fatigue.
• Replacing rings after cylinder boring for oversize service.

Installation Notes and Tips

Verify bore diameter, oversize specification, and ring groove dimensions before installation. Confirm the engine build calls for 0.040 in oversize rings and match the ring set to the cylinder finish and piston specification. Professional engine assembly procedures and ring gap measurement are required for proper results.

Quality Assurance

MAHLE develops piston rings to OE requirements and focuses on friction reduction, oil control, and service life. Part number 42227.040 reflects that engineering approach for precision engine rebuild applications.
