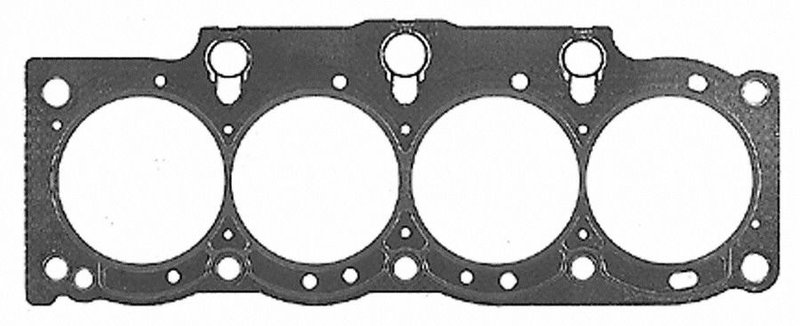

Mahle 4920 Engine Cylinder Head Gasket
OE Quality 60-Day Returns
Mahle

Mahle 4920 Engine Cylinder Head Gasket

Brand Mahle 4920
Material Composite
Thickness 0.06
Thickness 1.40
Cylinder Bore Diameter 3.50
Cylinder Bore Diameter 88.77
Gasket Sealant Included No
Additional Package Contents Head gasket
Cylinder Head Gasket Material Graphite
Item Grade Oem standard
Package Quantity 1
Torque To Yield Yes
Fits Toyota · 24 vehicles

OEM-standard grade. Built for factory-style sealing performance in engine service.

Graphite sealing material. Supports reliable combustion, oil, and coolant sealing at the head interface.

Precision thickness. 0.06 in. / 1.40 mm for accurate engine assembly fit.

Cross-references Beck/Arnley 035-1844, Beck/Arnley 035-1928 and Beck/Arnley 0351914 for the same application. See all 12.

$61.80Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $61.80
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Cylinder Head Gasket options

Engine Cylinder Head Gasket Overview

Mahle 4920 is an OEM-standard engine cylinder head gasket built for sealing performance in Toyota applications. It uses composite construction with a graphite sealing material and is specified with a 0.06 in. thickness for precise head-to-block sealing.

Fits 1987-1996 Toyota Camry, N/A. Fits 1987-1989 Toyota Celica, N/A. Fits 1991-1995 Toyota MR2, N/A. Fits 1994-1996 Toyota Celica, N/A. Fits 1996 Toyota RAV4, N/A. Fits 1997 Toyota Camry, N/A. Fits 1997 Toyota Celica, N/A.

Key Features

  • Composite gasket construction with graphite sealing material.
  • OEM-standard grade for factory-style fit and sealing performance.
  • 0.06 in. thickness, or 1.40 mm, for accurate engine assembly.
  • Torque-to-yield fastener specification noted for the application.
  • Gasket sealant is not included.

Detailed Description

Mahle 4920 is an engine cylinder head gasket for Toyota Camry, Toyota Celica, Toyota MR2, and Toyota RAV4 applications listed in the fitment data. The gasket is built with composite material and a graphite sealing layer to support combustion sealing, coolant separation, and oil control at the cylinder head interface. Mahle 4920 also cross-references FEL-PRO 9861 PT and Toyota 11115-74030 for the same application.

MAHLE gaskets are known for sealing products used by OEMs and technicians worldwide, and this part follows that OE-standard approach. For Toyota Camry and Toyota Celica repairs, confirm the engine build date and follow the application notes, especially the graphite bolt requirement on listed vehicles.

What It Helps Address

  • Coolant leakage at the cylinder head sealing surface.
  • Compression loss between the head and block.
  • Oil seepage caused by a worn head gasket.
  • Combustion gas leakage into the cooling system.
  • Sealing issues during cylinder head service or rebuild work.

Installation Notes

Use the fitment notes to verify engine build date and application details before installation. The listing specifies graphite cylinder head bolts for several applications, and torque-to-yield fasteners are noted. Follow the engine service procedure closely and inspect the mating surfaces before assembly.

Quality Assurance

Mahle 4920 is an OEM-standard gasket backed by MAHLE’s sealing product experience and OE-focused manufacturing approach. This part cross-references FEL-PRO 9861 PT for the same application.

This part fits 24 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
1997ToyotaCamry2.2LL4Cylinder Head Bolt Replacement Recommended; Graphite; Thru 12/96
1997ToyotaCelica2.2LL4Cylinder Head Bolt Replacement Recommended; Graphite; Thru 12/96
1996ToyotaCamry2.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1996ToyotaCelica2.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1996ToyotaRAV42.0LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1995ToyotaCamry2.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1995ToyotaCelica2.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1995ToyotaMR22.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1994ToyotaCamry2.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1994ToyotaCelica2.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1994ToyotaMR22.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1993ToyotaCamry2.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1993ToyotaMR22.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1992ToyotaCamry2.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1992ToyotaMR22.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1991ToyotaCamry2.0LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1991ToyotaMR22.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1990ToyotaCamry2.0LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1989ToyotaCamry2.0LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1989ToyotaCelica2.0LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1988ToyotaCamry2.0LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1988ToyotaCelica2.0LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1987ToyotaCamry2.0LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1987ToyotaCelica2.0LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
Directly replaces or cross-references 12 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 035-1844Beck/Arnley — 035-1928Beck/Arnley — 0351914FEL-PRO — 9861 PTGeneral Motors — 12482062Rol — HG33260Rol — HG33610Toyota — 11115-74030Toyota — 11115-74070Toyota — 11115-74080Toyota — 11115-74081Toyota — 11115-79015
