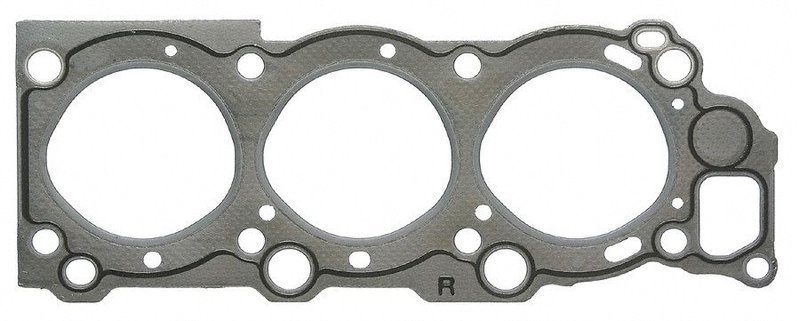

Mahle 54185 Engine Cylinder Head Gasket - Right

Mahle 54185 Cylinder Head Gasket

Mahle 54185 is an OEM-standard engine cylinder head gasket built for reliable sealing in select Toyota applications. It uses graphite cylinder head gasket material with a composite construction and a 1.27 mm (0.05 in) thickness to help maintain proper combustion chamber sealing and coolant separation.

Compatible With 1988-1995 Toyota 4Runner, right; 1988-1995 Toyota Pickup, right; and 1993-1994 Toyota T100, right. This Mahle 54185 head gasket is a direct-fit sealing component for the listed Toyota engine applications.

Key Features

• Engine cylinder head gasket for Toyota applications
• Composite material with graphite sealing surface
• 1.27 mm (0.05 in) thickness
• 3.52 in (89.41 mm) cylinder bore diameter
• OEM-standard item grade
• Torque-to-yield fastener application
• No gasket sealant included

Detailed Description

Mahle 54185 is engineered as a replacement cylinder head gasket for the right-side position on select Toyota 4Runner, Pickup, and T100 models. The graphite sealing material and composite construction support consistent head-to-block sealing under heat and pressure, while the specified bore diameter and thickness help match the original engine configuration. Mahle gaskets are widely used by OEMs and technicians for sealing performance in engine repair work, and this part follows that same OE-standard approach.

This part cross-references FEL-PRO 9728 PT for the same application. It also cross-references Toyota 11115-65030 as an OE reference number for this application. Mahle 54185 is a practical choice when replacing a leaking or damaged head gasket on the listed Toyota engines.

What It Helps Fix

• Coolant loss from a failed head gasket seal
• Combustion gas leakage between the cylinder head and block
• Oil and coolant mixing caused by sealing failure
• Compression loss that affects engine performance
• Overheating related to head gasket leakage

Installation Notes

Use graphite cylinder head bolts when installing this engine cylinder head gasket, as noted for the listed Toyota fitments. Clean and inspect the cylinder head and block mating surfaces before installation, and verify that the engine surface finish and bore dimensions match the gasket specifications. Follow the manufacturer service procedure for torque sequence and torque-to-yield fastener replacement requirements.

Quality Assurance

Mahle supplies sealing products used by OEMs and professional technicians worldwide. Mahle 54185 is built to OEM-standard expectations for fit and sealing performance in the listed Toyota applications.
