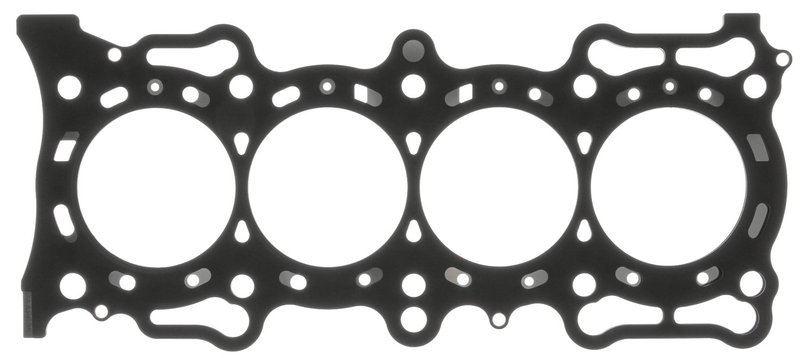

Mahle 54216 Engine Cylinder Head Gasket

Mahle 54216 Cylinder Head Gasket

The Mahle 54216 engine cylinder head gasket is an OEM-standard sealing solution built with multi-layered steel construction for precise combustion sealing. It is listed for select Honda, Acura, and Isuzu applications, including Honda Accord, Honda Odyssey, Acura CL, and Isuzu Oasis coverage across the 1994-2002 model years.

Key Features

• Multi-layered steel cylinder head gasket material for durable sealing performance
• OEM-standard item grade for direct replacement service
• 0.01 in. / 0.25 mm thickness specification
• 3.45 in. / 87.53 mm cylinder bore diameter
• Torque-to-yield fastener application
• No gasket sealant included
• Head gasket only, with no additional package contents listed

Detailed Description

Mahle 54216 is an engine cylinder head gasket engineered for applications that require a multi-layered steel sealing surface and torque-to-yield installation practices. Mahle gaskets are used by OEMs and technicians worldwide for sealing performance in demanding engine environments. This part number is cross-referenced with Beck/Arnley 035-1941 for the same application.

Compatible With select Honda Accord, Honda Odyssey, Acura CL, and Isuzu Oasis applications, Mahle 54216 is a direct-fit style replacement for engines that call for the specified bore diameter and MLS gasket construction. The part number 54216 is also referenced against OE numbers used on Honda applications, making it a practical choice when servicing the cylinder head sealing system on these vehicles.

What It Helps Address

• Combustion gas leakage at the cylinder head sealing surface
• Coolant loss caused by a compromised head gasket
• Oil seepage between the cylinder head and engine block
• Compression loss that can affect engine performance
• Repeat sealing issues during cylinder head service

Installation Notes and Tips

For proper installation, follow the engine manufacturer’s torque sequence and torque-to-yield procedure. Replacement of cylinder head bolts is necessary for proper installation of the multi-layered steel gasket on the listed applications. Inspect the cylinder head and engine block surfaces for flatness, clean all mating surfaces thoroughly, and verify bore and thickness specifications before assembly. Mahle 54216 should be installed only on the applications listed in the fitment data.

• Fits 1994-2002 Honda Accord, N/A
• Fits 1997-1999 Acura CL, N/A
• Fits 1996-1999 Isuzu Oasis, N/A
• Fits 1995-1998 Honda Odyssey, N/A

Quality Assurance

Mahle supplies sealing products used in OEM and professional repair environments, and this gasket is built to OEM-standard expectations for fit and sealing performance. Part number 54216 is manufactured as a multi-layered steel head gasket for consistent service in the listed engine applications.
