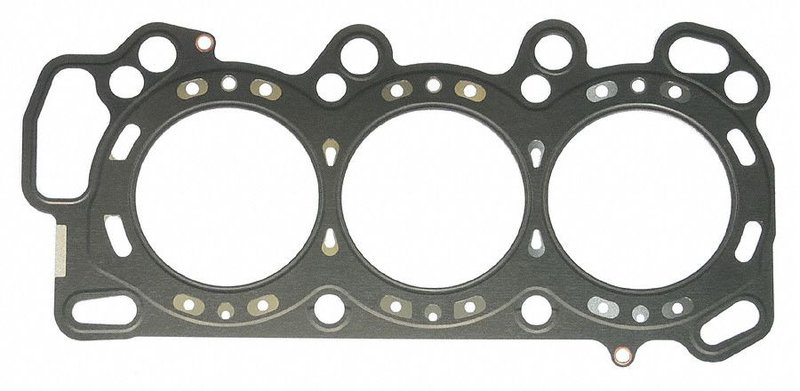

Mahle 54217 Engine Cylinder Head Gasket

Engine Cylinder Head Gasket for Accord and CL

This Mahle engine cylinder head gasket is built for direct sealing service on select Honda and Acura applications. It uses multi-layered steel construction and OEM-standard grading to support reliable combustion sealing in the engine assembly.

Key Features

• Multi-layered steel construction for consistent sealing performance
• OEM-standard item grade for service replacement use
• 0.71 mm thickness for the specified application
• Torque-to-yield fastener requirement noted for proper installation
• Fits select Honda Accord and Acura CL applications

Detailed Description

Mahle 54217 is an engine cylinder head gasket engineered for 1998-2002 Honda Accord and 1997-1999 Acura CL applications. The gasket uses multi-layered steel material and is specified with a 0.71 mm thickness and 87.00 mm cylinder bore diameter. For these applications, cylinder head bolts must be replaced during installation to achieve proper sealing with the multi-layered steel design. Mahle 54217 is a practical OE-style sealing solution for service work where accurate head gasket fitment matters.

This part cross-references FEL-PRO 26196 PT for the same application.

What It Helps Address

• Combustion gas leakage at the cylinder head interface
• Coolant or oil seepage caused by a worn head gasket
• Compression loss from a failing sealing surface
• Service replacement needs after cylinder head removal

Installation Notes and Tips

Fits 1998-2002 Honda Accord, N/A. Fits 1997-1999 Acura CL, N/A. Replace cylinder head bolts during installation, as required for proper use with this multi-layered steel gasket. Verify bore size, thickness, and engine application before assembly. Mahle 54217 should be installed on clean, flat mating surfaces following the service procedure for the engine.

Quality Assurance

MAHLE gaskets are trusted by OEMs and technicians worldwide for sealing applications. Part number 54217 is built to OEM-standard expectations for service replacement.
