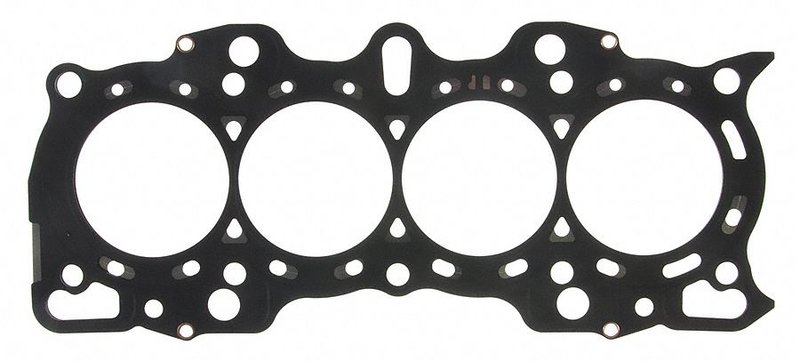

Mahle 54255 Engine Cylinder Head Gasket

Mahle 54255 Cylinder Head Gasket

Mahle 54255 is an OEM-standard engine cylinder head gasket built with multi-layered steel construction for reliable sealing at the cylinder head. It is a direct-fit replacement for select Honda CR-V applications and is specified for 1997-2001 Honda CR-V models.

Key Features

• Multi-layered steel head gasket construction
• OEM-standard replacement for engine sealing service
• 0.03 in. thickness / 0.71 mm thickness
• 3.33 in. / 84.58 mm cylinder bore diameter
• No gasket sealant included
• Includes head gasket only

Product Details

Built for the engine sealing system, this Mahle cylinder head gasket helps maintain compression and isolate combustion chambers from coolant and oil passages. The MLS design is commonly selected for precise sealing performance in modern engine rebuild and repair work. Mahle 54255 is a fitment-based replacement for 1997-2001 Honda CR-V models, and it cross-references Beck/Arnley 035-1972 and FEL-PRO 26159 PT for the same application.

For Honda CR-V cylinder head gasket replacement, Mahle 54255 provides the dimensions and material specification needed for a proper service repair. It is also listed under Honda part number 12251-P8R-004.

What It Helps Repair

• Coolant loss caused by head gasket sealing failure
• Combustion gas leakage between the cylinder head and block
• Oil and coolant mixing from a compromised sealing surface
• Compression loss that affects engine performance
• Sealing issues during Honda CR-V engine rebuild or head service

Installation Notes

Fits 1997-2001 Honda CR-V. Replacement of cylinder head bolts is necessary for proper installation of the multi-layered steel gasket. Clean and inspect the cylinder head and block surfaces before assembly, and verify all mating surfaces meet service specifications. Follow the vehicle manufacturer’s torque sequence and tightening procedure during installation.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide for engine sealing applications. This part is built to OEM-standard requirements for dependable fit and sealing performance in the specified Honda CR-V applications.
