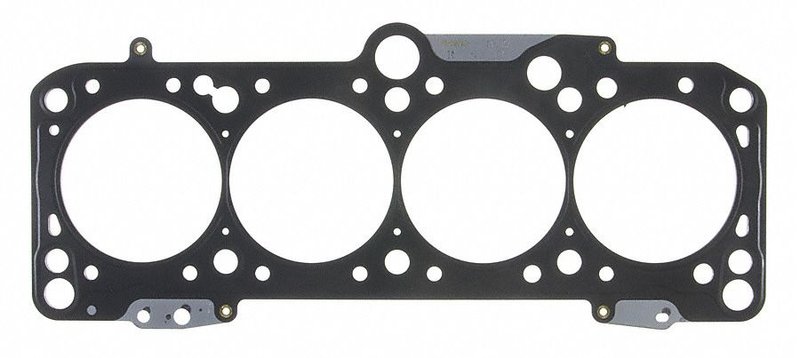

Mahle 54330 Engine Cylinder Head Gasket

Mahle 54330 Cylinder Head Gasket

The Mahle 54330 engine cylinder head gasket is an OEM-standard sealing solution for Volkswagen 4-cylinder applications. Built with multi-layered steel construction and a 1.50 mm thickness, it is specified for reliable combustion sealing in the 1993-2002 Volkswagen Golf, Jetta, Passat, and Cabrio fitments listed below.

Key Features

• Multi-layered steel cylinder head gasket for durable sealing performance
• OEM-standard item grade for direct replacement use
• 1.50 mm thickness and 83.57 mm cylinder bore diameter
• Torque-to-yield fastener application noted for proper installation
• Gasket sealant not included
• Mahle 54330 cross-references Beck/Arnley 035-2050 and FEL-PRO 26164 PT for the same application

Detailed Description

Mahle 54330 is an engine cylinder head gasket engineered for Volkswagen applications that require a multi-layered steel sealing surface. The gasket measures 0.06 in. (1.50 mm) thick and 3.29 in. (83.57 mm) at the cylinder bore diameter, supporting accurate head-to-block sealing in the specified Volkswagen Golf, Jetta, Passat, and Cabrio engines. Mahle gaskets are used by OEMs and technicians worldwide for sealing performance in demanding engine service work.

This part number, 54330, is a direct-fit sealing component for 1993-1999 Volkswagen Jetta, 1993-1998 Volkswagen Golf, 1995-1996 Volkswagen Passat, and 1995-2002 Volkswagen Cabrio applications listed in the fitment data. It is also referenced by Volkswagen 037 103 383 N.

Common Problems This Part Addresses

• Combustion gas leakage at the cylinder head interface
• Coolant or oil seepage between the head and engine block
• Compression loss from a worn or damaged head gasket
• Sealing issues after cylinder head service or engine teardown
• Improper sealing when replacing a failed OEM-style gasket

Installation Notes and Tips

• Fits 1995-2002 Volkswagen Cabrio, N/A; replacement of cylinder head bolts is necessary for proper installation of the multi-layered steel gasket.
• Fits 1993-1999 Volkswagen Jetta, N/A; replacement of cylinder head bolts is necessary for proper installation of the multi-layered steel gasket.
• Fits 1993-1998 Volkswagen Golf, N/A; replacement of cylinder head bolts is necessary for proper installation of the multi-layered steel gasket.
• Fits 1995-1996 Volkswagen Passat, N/A; replacement of cylinder head bolts is necessary for proper installation of the multi-layered steel gasket.
• Verify cylinder head and block surfaces are clean, flat, and within specification before assembly.

Quality Assurance

Mahle supplies sealing products built to OEM-standard expectations for engine service and replacement work. The 54330 head gasket is manufactured as a multi-layered steel component for consistent sealing in the listed Volkswagen applications.
