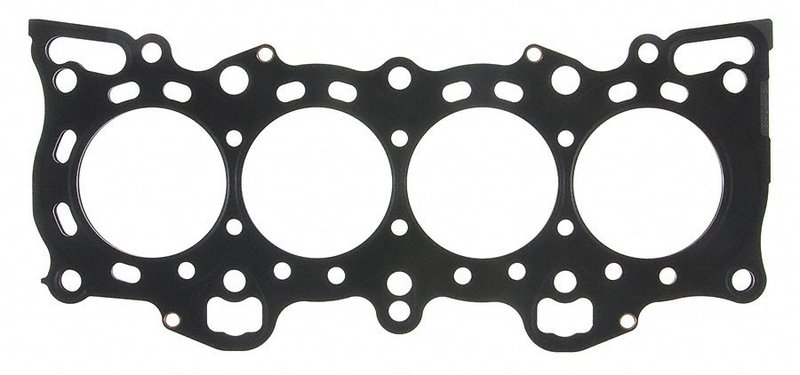

Mahle 54344 Engine Cylinder Head Gasket

Honda Civic Cylinder Head Gasket

The Mahle 54344 engine cylinder head gasket is an OEM-standard sealing solution for select Honda applications. Built with multi-layered steel construction and a 0.05 in. (1.24 mm) thickness, it is made for precise sealing in the combustion chamber and coolant/oil passages.

Compatible with 1988-1995 Honda Civic, 1993-1995 Honda Civic del Sol, and 1988-1991 Honda CRX, this Mahle head gasket supports accurate OE-style service work. The 3.00 in. (76.15 mm) cylinder bore diameter helps match the intended engine configuration, and the gasket sealant is not included.

Key Features

• Mahle 54344 engine cylinder head gasket for select Honda vehicles
• Multi-layered steel construction for durable sealing performance
• 0.05 in. / 1.24 mm thickness
• 3.00 in. / 76.15 mm cylinder bore diameter
• OEM standard grade for OE-style replacement service
• Head gasket only; sealant not included

Detailed Description

Mahle designs sealing products used by OEMs and technicians worldwide, and this cylinder head gasket follows that service-focused approach. The 54344 is engineered for Honda Civic, Honda Civic del Sol, and Honda CRX applications where a multi-layered steel head gasket is required for proper cylinder sealing and stable engine operation. Cross-reference numbers include FEL-PRO 26320 PT and Honda 12251-P01-004 for the same application.

Use this gasket when servicing the cylinder head on 1988-1995 Honda Civic, 1993-1995 Honda Civic del Sol, or 1988-1991 Honda CRX engines that call for the specified bore and thickness. The Mahle 54344 helps restore the sealing interface between the cylinder head and engine block during head gasket replacement.

What It Helps Address

• Compression loss from a worn or damaged head gasket
• Coolant leakage at the cylinder head sealing surface
• Oil seepage between the head and block
• Combustion sealing issues after engine teardown
• Service replacement for a failed OE-style Honda head gasket

Installation Notes and Tips

For proper installation, follow the factory service procedure for the specific Honda engine. Replacement of cylinder head bolts is necessary for proper installation of this multi-layered steel gasket on the listed Civic, Civic del Sol, and CRX applications. Inspect the cylinder head and block surfaces for flatness, cleanliness, and damage before assembly.

Quality Assurance

Mahle gaskets are built to meet OEM-standard expectations for sealing performance and application accuracy. The 54344 is a direct-fit style replacement for the listed Honda applications and is backed by Mahle’s reputation in engine sealing systems.
