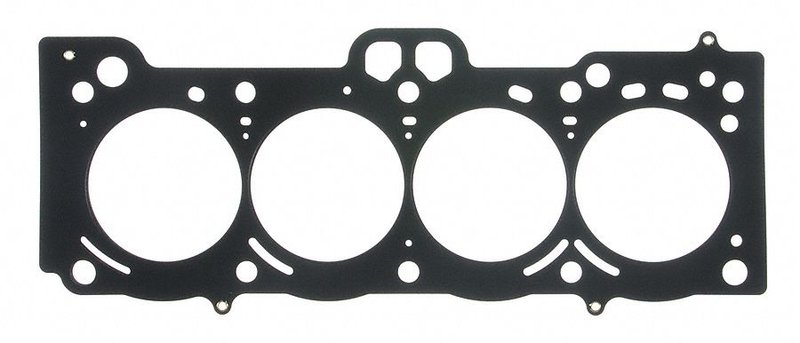

Mahle 54354 Engine Cylinder Head Gasket

Mahle 54354 Cylinder Head Gasket

Mahle 54354 is an OEM-standard engine cylinder head gasket built with multi-layered steel for reliable sealing in the combustion chamber and coolant/oil passages. It is a direct-fit sealing component for select Geo Prizm, Toyota Celica, and Toyota Corolla applications from 1993-1997.

Key Features

• Multi-layered steel construction for cylinder head sealing
• OEM-standard item grade for factory-style service replacement
• 0.04 in. thickness / 1.09 mm thickness
• 3.24 in. / 82.40 mm cylinder bore diameter
• Head gasket only; gasket sealant not included
• Mahle part number 54354 for catalog and service lookup

Detailed Description

This Mahle 54354 head gasket is engineered for engines that require a multi-layered steel sealing surface and precise bore alignment. Mahle supplies sealing products used by OEMs and technicians worldwide, and this gasket follows that service-focused approach with dimensions that support proper cylinder head sealing on 1993-1997 Geo Prizm, 1994-1997 Toyota Celica, and 1993-1997 Toyota Corolla applications. This part cross-references FEL-PRO 9955 PT and Toyota 11115-16121 for the same application.

What It Helps Address

• Combustion pressure leakage between the cylinder head and engine block
• Coolant seepage at the head-to-block sealing surface
• Oil leakage from a compromised head gasket seal
• Compression loss that affects engine performance and starting
• Service replacement needs after cylinder head removal or engine repair

Installation Notes and Tips

• Fits 1993-1997 Geo Prizm, N/A
• Fits 1994-1997 Toyota Celica, N/A
• Fits 1993-1997 Toyota Corolla, N/A
• Replacement of cylinder head bolts is necessary for proper installation of the multi-layered steel gasket.
• Inspect the cylinder head and engine block for flatness, corrosion, and residue before installation.
• Follow the engine manufacturer’s torque sequence and torque specifications during assembly.

Quality Assurance

Mahle sealing products are trusted in OEM and professional repair environments, and this gasket is built to OEM-standard expectations for fit and sealing performance. Mahle 54354 is a service-grade replacement for the listed Geo and Toyota applications.
