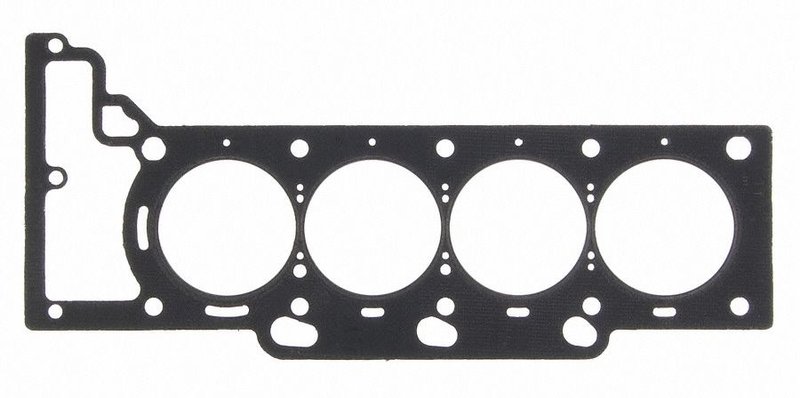

Mahle 54356 Engine Cylinder Head Gasket - Left

Mahle 54356 Cylinder Head Gasket

Mahle 54356 is an OEM-standard engine cylinder head gasket built for left-side applications that require reliable sealing between the cylinder head and engine block. It uses graphite cylinder head gasket material with a composite construction and a 1.65 mm thickness for precise fitment on confirmed applications.

Compatible with select Buick Lucerne, Cadillac DTS, Cadillac DeVille, Pontiac Bonneville, Cadillac Seville, Cadillac Eldorado, and Cadillac Allante left-side applications, this gasket is specified for engines that use torque-to-yield fasteners. Mahle 54356 is a direct-fit sealing component for service work where head gasket integrity is critical.

Key Features

• Engine cylinder head gasket for left-side applications
• Composite construction with graphite gasket material
• 1.65 mm thickness for OE-style sealing dimensions
• 93.98 mm cylinder bore diameter
• OEM standard item grade
• Torque-to-yield fastener application
• No gasket sealant included

Product Details

Mahle 54356 is engineered as a replacement head gasket for vehicles that need dependable combustion sealing, coolant sealing, and oil control at the cylinder head interface. The graphite sealing surface and composite base support consistent clamping performance on the listed left-side fitments. This part cross-references FEL-PRO 26150 PT and General Motors 12560632 for the same application. For buyers searching for a Buick Lucerne head gasket, Cadillac DTS head gasket, or Cadillac DeVille cylinder head gasket, Mahle 54356 matches the confirmed fitment data for those left-side applications.

What It Helps Address

• Compression loss from a failed cylinder head gasket
• Coolant leakage into the combustion chamber or oil passages
• Oil seepage at the cylinder head sealing surface
• Overheating caused by compromised head gasket sealing
• Rough running or misfire conditions tied to head gasket failure

Installation Notes

Use graphite cylinder head bolts when installing this engine cylinder head gasket, as noted in the fitment data. Verify the cylinder bore diameter, thickness, and left-side application before installation. Follow the vehicle service manual for surface preparation, torque sequence, and torque-to-yield tightening procedures. Confirm the head and block surfaces are clean, flat, and free of debris before assembly.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide for engine sealing applications. Mahle 54356 is built to OEM-standard expectations for fit and sealing performance on the listed Buick, Cadillac, and Pontiac applications.
