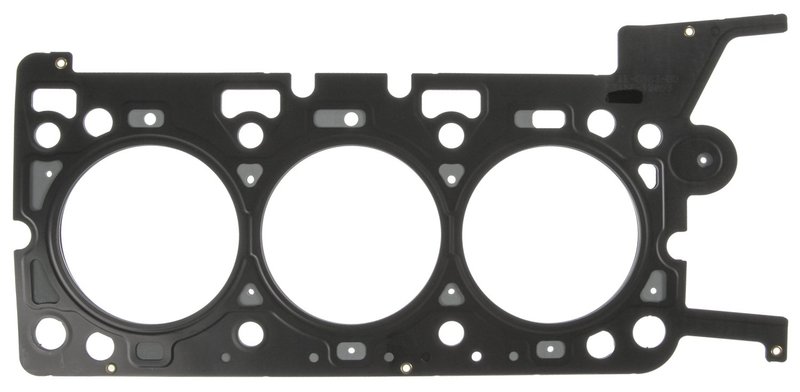

Mahle 54364 Engine Cylinder Head Gasket - Left

Engine Cylinder Head Gasket Overview

Mahle 54364 is an OEM-standard engine cylinder head gasket built with multi-layered steel for reliable sealing under combustion pressure. It is specified for left-side applications and uses a 0.03-inch (0.86 mm) thickness with a 3.57-inch (90.68 mm) cylinder bore diameter.

Key Features

• Multi-layered steel construction for consistent sealing performance.
• OEM-standard grade for service and replacement use.
• 0.03-inch thickness, listed as 0.86 mm.
• 3.57-inch cylinder bore diameter, listed as 90.68 mm.
• No gasket sealant included.
• Torque-to-yield fastener requirement noted for listed applications.

Detailed Description

Mahle 54364 is an engine cylinder head gasket for select Ford, Mazda, and Mercury applications, including Fits 2001-2004 Mazda Tribute, left; Fits 2003 Ford Escape, left; Fits 1999-2003 Ford Taurus, left; Fits 2002-2003 Mazda MPV, left; Fits 1999-2003 Mercury Sable, left; and Fits 2001-2002 Ford Escape, left. The multi-layered steel design is used to maintain sealing integrity between the cylinder head and engine block, while the OEM-standard construction supports accurate replacement service. This part number, 54364, cross-references FEL-PRO 9540 PT and Ford XF1Z 6051-BA for the same application.

What It Is Used For

• Combustion gas leakage at the cylinder head sealing surface.
• Coolant or oil seepage between the head and block.
• Compression loss caused by a failed head gasket.
• Service replacement after cylinder head removal.
• Repair work requiring a multi-layered steel gasket.

Installation Notes and Tips

Confirm the left-side application and match the engine configuration before installation. The fitment notes specify cylinder head bolt replacement for proper installation on several listed vehicles, and torque-to-yield fasteners are noted for this part. Clean and inspect the mating surfaces carefully, and verify bore diameter and thickness against the engine specification before assembly.

Quality Assurance

MAHLE gaskets are trusted by OEMs and technicians worldwide for sealing applications. Part number 54364 is built to OEM-standard requirements for dependable service replacement.
