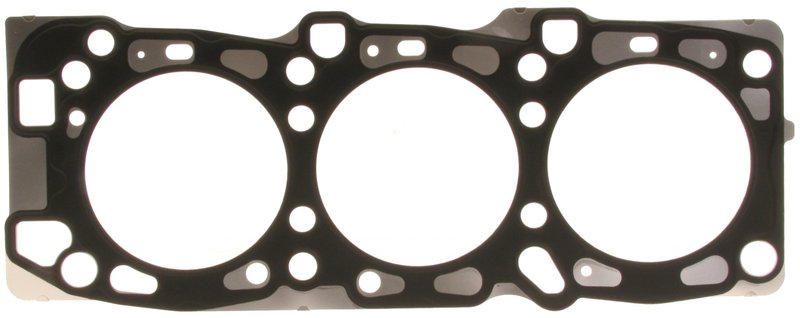

Mahle 54452 Engine Cylinder Head Gasket - Left

Mahle 54452 Cylinder Head Gasket

The Mahle 54452 engine cylinder head gasket is an OEM-standard sealing solution built with multi-layered steel construction for dependable combustion sealing. It is specified for left-side applications on select Hyundai and Kia vehicles, including Santa Fe, Amanti, Sorento, XG350, and Sedona models.

Mahle gaskets are used by OEMs and technicians worldwide for precise sealing performance in engine repair. This Mahle 54452 head gasket is built for the 3.71-inch / 94.11 mm cylinder bore and uses a 0.03-inch / 0.85 mm multi-layered steel design.

Key Features

• Multi-layered steel cylinder head gasket for engine sealing
• OEM standard item grade for service replacement
• 0.03 in / 0.85 mm thickness
• 3.71 in / 94.11 mm cylinder bore diameter
• Torque-to-yield fastener application
• No gasket sealant included
• Includes head gasket only

Detailed Description

Mahle 54452 is a multi-layered steel engine cylinder head gasket engineered for precise sealing between the cylinder head and engine block. Its OEM-standard construction supports consistent compression sealing in repair work where accurate bore match and thickness are critical. This part cross-references FEL-PRO 26294 PT for the same application.

Compatible With 2003-2006 Hyundai Santa Fe, left; 2004-2006 Kia Amanti, left; 2003-2006 Kia Sorento, left; 2002-2005 Hyundai XG350, left; and 2002-2005 Kia Sedona, left. The Mahle 54452 is also referenced by Hyundai 22311-39502 and Kia 22311-39502.

Common Repair Uses

• Head gasket replacement after combustion sealing failure
• Repair for coolant loss caused by gasket leakage
• Correction of oil and coolant mixing at the cylinder head
• Restoration after overheating-related head service
• Service work requiring a torque-to-yield gasket application

Installation Notes

Replacement of cylinder head bolts is necessary for proper installation of this multi-layered steel gasket. Verify cylinder bore diameter, thickness, and left-side fitment before assembly. Follow the vehicle service procedure for surface preparation, torque sequence, and torque-to-yield fastener replacement requirements.

Quality Assurance

Mahle supplies sealing products used in OEM and professional repair environments, and this gasket is built to OEM-standard specifications for the listed applications. Confirm fitment against the vehicle’s engine configuration before installation.
