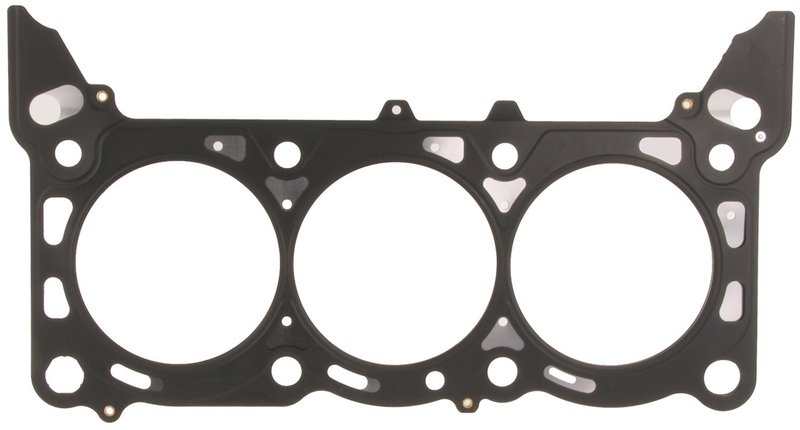

Mahle 54454 Engine Cylinder Head Gasket - Left

Mahle 54454 Cylinder Head Gasket

Mahle 54454 is an OEM-standard engine cylinder head gasket built with multi-layered steel construction for dependable sealing under combustion pressure. It is a direct-fit left-side head gasket for select Ford applications, including Ford F-150, Mustang, Freestar, Windstar, and E-Series models.

For Ford F-150 left cylinder head gasket replacement, Ford Mustang left head gasket service, or other Ford V6 engine sealing repairs, Mahle 54454 provides the thickness and bore sizing needed for the specified application.

Key Features

• Multi-layered steel construction for consistent cylinder head sealing
• OEM-standard replacement for engine gasket service
• 0.010 in thickness, 1.35 mm thickness specification
• 99.70 mm cylinder bore diameter / 3.93 in bore diameter
• Torque-to-yield application: Yes
• Gasket sealant not included
• Fits left-side cylinder head applications listed below

Detailed Description

Mahle 54454 is engineered as a multi-layered steel cylinder head gasket for Ford engines that require a left-side head gasket with a 0.010 in thickness specification. Mahle gaskets are used by OEMs and technicians worldwide for sealing performance in engine repair, and this part follows that OE-standard approach with the correct bore diameter and material construction for the listed vehicles. This part cross-references Fel-Pro 26505 PT for the same application.

Compatible With Ford F-150, Ford Mustang, Ford Freestar, Ford Windstar, Ford E-150, Ford E-250, Ford E-150 Econoline, Ford E-250 Econoline, Ford E-150 Club Wagon, Ford E-150 Econoline Club Wagon, Ford F-150 Heritage, and Ford E-150 applications where the left-side head gasket specification matches this part number 54454.

What It Helps Address

• Combustion gas leakage at the cylinder head sealing surface
• Coolant or oil seepage from a failed head gasket
• Compression loss caused by gasket failure
• Overheating related to compromised head sealing
• Repeat repair issues when the correct thickness and bore size are required

Installation Notes and Tips

• Verify engine code, cylinder head side, and gasket thickness before installation.
• Cylinder head bolt replacement is recommended for the listed applications.
• Torque-to-yield fasteners are specified for this part.
• Inspect the cylinder head and block surfaces for flatness and contamination before assembly.
• Follow the vehicle service manual for torque sequence and final tightening steps.

Quality Assurance

Mahle manufactures sealing products used to OE standards, and 54454 is built to match the demands of engine repair on the listed Ford applications. The part number 54454 is intended for precise fitment and sealing performance in the specified left-side cylinder head applications.
