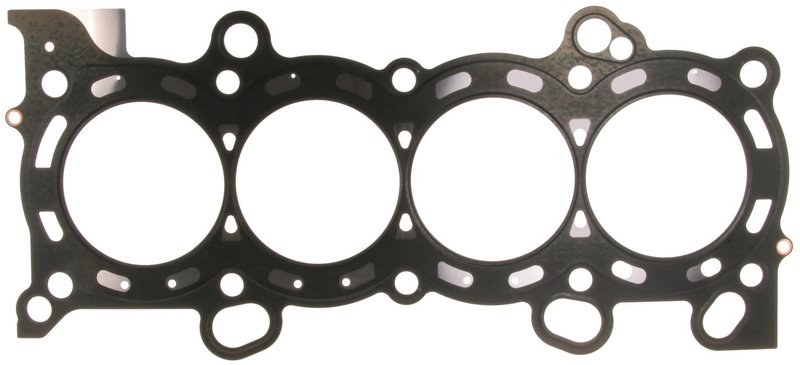

Mahle 54460 Engine Cylinder Head Gasket

Mahle 54460 Cylinder Head Gasket for Honda CR-V

The Mahle 54460 engine cylinder head gasket is an OEM-standard sealing component built with multi-layered steel construction for reliable combustion sealing and coolant/oil separation. It is a direct-fit option for 2002-2006 Honda CR-V applications that require a replacement head gasket with the correct bore and thickness specifications.

Key Features

• Multi-layered steel cylinder head gasket construction
• OEM-standard item grade for factory-style fit and sealing performance
• 0.03 in. / 0.71 mm thickness
• 3.46 in. / 87.76 mm cylinder bore diameter
• No gasket sealant included
• Torque-to-yield fastener application
• Fits 2002-2006 Honda CR-V, N/A

Product Details

Mahle designs sealing products used by OEMs and technicians worldwide, and the 54460 head gasket follows that approach with a multi-layered steel design for stable sealing under cylinder head clamping loads. This part number, 54460, is specified for 2002-2006 Honda CR-V models and is intended for engines that require an OEM-standard replacement head gasket with the listed bore and thickness dimensions. This part cross-references Honda 12251-PPA-004 and FEL-PRO 26244 PT for the same application.

Common Repair Applications

• Head gasket failure causing combustion leakage
• Coolant loss from a compromised cylinder head seal
• Oil and coolant mixing at the head-to-block interface
• Compression loss affecting engine performance
• Overheating related to sealing damage

Installation Notes and Tips

Fits 2002-2006 Honda CR-V, N/A. Replacement of cylinder head bolts is necessary for proper installation of this multi-layered steel gasket. Verify cylinder head and block surfaces are clean, flat, and within specification before assembly. Follow the manufacturer’s torque sequence and torque-to-yield fastener procedure during installation of Mahle 54460.

Quality Assurance

Mahle gaskets are engineered to meet OEM-standard sealing requirements and are trusted in professional repair environments for consistent fit and sealing performance.
