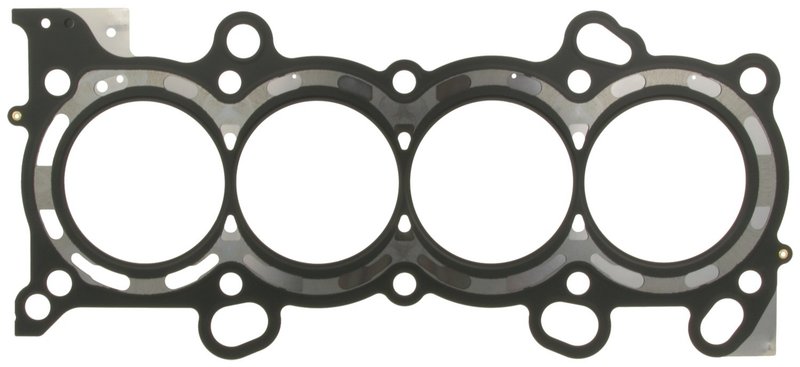

Mahle 54523 Engine Cylinder Head Gasket

Mahle 54523 Cylinder Head Gasket

The Mahle 54523 engine cylinder head gasket is an OEM-standard sealing solution for select Honda applications. Built with multi-layered steel construction and a 0.03 in. (0.71 mm) thickness, it is specified for reliable combustion sealing and consistent head-to-block sealing performance.

Compatible with 2003-2006 Honda Element and 2003-2005 Honda Accord applications, this gasket is a direct-fit service part for engine repair work that requires precise sealing. Mahle gaskets are trusted by OEMs and technicians for dependable sealing performance, and this Mahle 54523 gasket follows that same OE-focused approach.

Key Features

• Multi-layered steel cylinder head gasket construction
• OEM-standard item grade for service replacement
• 0.03 in. / 0.71 mm thickness
• 3.46 in. / 87.76 mm cylinder bore diameter
• No gasket sealant included
• Torque-to-yield fastener application
• Head gasket only, as listed

Detailed Description

Mahle 54523 is an engine cylinder head gasket engineered for Honda Accord and Honda Element applications that require a multi-layered steel sealing design. The MLS construction helps maintain a stable seal under combustion pressure, while the OEM-standard specification supports accurate fitment during cylinder head service. This part cross-references FEL-PRO 26243 PT for the same application.

Use this gasket when servicing the cylinder head on 2003-2005 Honda Accord or 2003-2006 Honda Element engines that match the listed bore and thickness specifications. The Mahle 54523 part number is also referenced by Honda OE numbers 12251-RAA-A01, 12251-RAA-A02, and 12251-RAA-J01.

What It Helps Address

• Combustion gas leakage at the cylinder head sealing surface
• Coolant loss caused by a failed head gasket seal
• Oil seepage between the cylinder head and engine block
• Compression loss affecting engine performance
• Sealing issues after cylinder head service or repair

Installation Notes and Tips

Fits 2003-2006 Honda Element, N/A. Fits 2003-2005 Honda Accord, N/A. Replacement of cylinder head bolts is necessary for proper installation of this multi-layered steel gasket. Confirm engine specifications, clean both mating surfaces thoroughly, and follow the manufacturer’s torque sequence and torque-to-yield procedure during assembly.

Quality Assurance

Mahle supplies sealing products used by OEMs and professional technicians worldwide. The 54523 is an OEM-standard cylinder head gasket built to meet the demands of engine repair and restoration work on select Honda applications.
