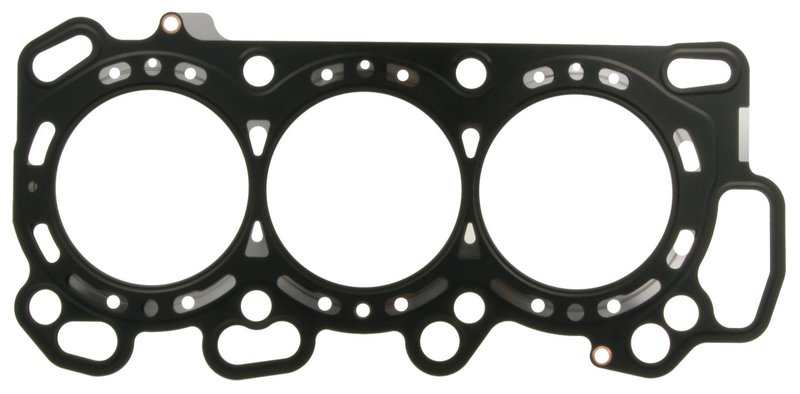

Mahle 54530 Engine Cylinder Head Gasket

Mahle 54530 Cylinder Head Gasket

Mahle 54530 is an OEM-standard engine cylinder head gasket built with multi-layered steel construction for precise sealing performance. It is a direct-fit option for select Acura RL and Acura TL applications from 2005-2008, including vehicles that require torque-to-yield cylinder head bolts during installation.

Key Features

• Multi-layered steel cylinder head gasket material
• OEM-standard grade for engine sealing service
• 0.04 in. / 0.91 mm thickness
• 3.52 in. / 89.48 mm cylinder bore diameter
• No gasket sealant included
• Designed for torque-to-yield fastener applications
• Cross-references Acura 12251-RJA-004 and FEL-PRO 26329 PT for the same application

Detailed Description

Mahle 54530 cylinder head gasket is engineered for reliable sealing between the engine block and cylinder head in select Acura V6 applications. The multi-layered steel design supports consistent combustion sealing and coolant/oil separation, while the OEM-standard specification aligns with factory-style service requirements. This part number is used on 2005-2008 Acura RL and 2007-2008 Acura TL models, making it a focused choice for Acura RL head gasket replacement and Acura TL cylinder head gasket service.

Common Repair Uses

• Head gasket replacement after combustion sealing failure
• Repair for coolant loss caused by cylinder head sealing issues
• Correction of oil and coolant mixing from a failed gasket
• Service for overheating concerns tied to head gasket leakage
• Engine teardown repair requiring a new MLS head gasket

Installation Notes

Fits 2005-2008 Acura RL, N/A. Fits 2007-2008 Acura TL, N/A. Replacement of cylinder head bolts is necessary for proper installation of this multi-layered steel gasket, and torque-to-yield fasteners must be handled according to factory service procedures. Verify cylinder head and block surfaces are clean, flat, and within specification before assembly. Mahle 54530 should be installed with the correct torque sequence and final tightening steps for the engine platform.

Quality Assurance

Mahle gaskets are used in OEM-level sealing applications and are trusted by technicians and vehicle manufacturers worldwide. Mahle 54530 is built to meet OEM-standard expectations for fit and sealing performance in the listed Acura RL and Acura TL applications.
