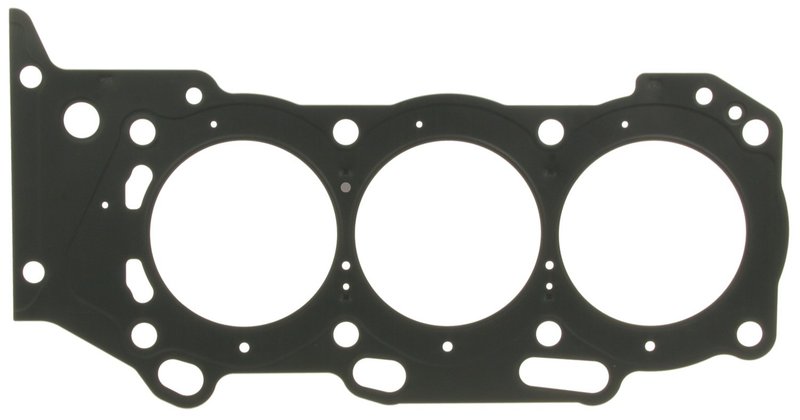

Mahle 54536 Engine Cylinder Head Gasket - Left

Mahle 54536 Cylinder Head Gasket

The Mahle 54536 engine cylinder head gasket is an OEM-standard sealing solution for select Toyota and Lexus V6 applications. Built with multi-layered steel construction and a 0.02 in. (0.61 mm) thickness, it supports reliable combustion sealing where precise head-to-block sealing is critical.

Compatible with 2005-2018 Toyota Avalon, 2007-2017 Toyota Camry, 2008-2016 Toyota Highlander, 2007-2016 Toyota Sienna, 2009-2016 Toyota Venza, 2006-2012 Toyota RAV4, and select Lexus ES350, GS350, GS450h, IS300, IS350, RC300, RC350, RX350, and RX450h left-side applications. This part cross-references Toyota 11116-0P010 and FEL-PRO 26321 PT for the same application.

Key Features

• Multi-layered steel cylinder head gasket for durable sealing performance
• OEM-standard item grade for factory-style service replacement
• 0.02 in. / 0.61 mm thickness for precise fitment
• 3.78 in. / 95.89 mm cylinder bore diameter
• No gasket sealant included
• Torque-to-yield fastener application

Detailed Description

Mahle 54536 is a left-side engine cylinder head gasket engineered for specific Toyota and Lexus engines that require a multi-layered steel sealing design. Mahle gaskets are trusted by OEMs and technicians for consistent sealing performance, and this gasket follows that approach with an OEM-standard specification and exact bore sizing for the listed applications. For Toyota Camry, Avalon, Highlander, Sienna, Venza, and RAV4, as well as Lexus ES350, GS350, GS450h, IS300, IS350, RC300, RC350, RX350, and RX450h, the Mahle 54536 helps restore proper cylinder head sealing during engine service.

Common Repair Uses

• Head gasket failure causing combustion leakage
• Coolant loss from cylinder head sealing issues
• Compression loss affecting engine performance
• Overheating related to sealing damage
• Oil and coolant cross-contamination at the head gasket interface

Installation Notes and Tips

Replacement of cylinder head bolts is necessary for proper installation of this multi-layered steel gasket. Verify left-side application, engine configuration, and bore dimensions before installation. Clean all mating surfaces thoroughly and follow the manufacturer’s torque sequence and torque-to-yield procedure for the listed Toyota and Lexus models.

Quality Assurance

Mahle supplies sealing products used by OEMs and professional technicians worldwide. The 54536 is built to OEM-standard expectations for fit and sealing integrity in the specified Toyota and Lexus applications.
