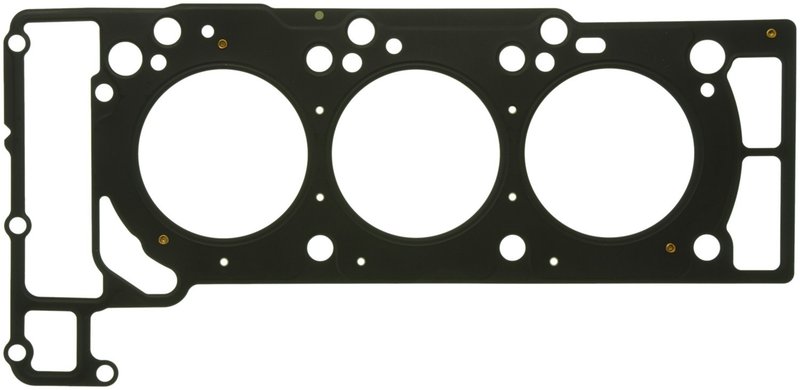

Mahle 54590 Engine Cylinder Head Gasket - Right

Mahle Cylinder Head Gasket for Mercedes-Benz V6

The Mahle 54590 engine cylinder head gasket is an OEM-standard sealing component built with multi-layered steel construction for the right-side cylinder head on select Mercedes-Benz and Chrysler applications. It is specified for torque-to-yield fastener use and is intended for repairs that require precise head sealing and stable combustion chamber integrity.

Key Features

• Multi-layered steel cylinder head gasket construction
• OEM Standard item grade for factory-style service replacement
• 0.02 in. / 0.56 mm thickness
• 3.63 in. / 92.08 mm cylinder bore diameter
• Torque-to-yield fastener application
• No gasket sealant included
• Head gasket included as the additional package content

Product Details

Mahle 54590 is a right-side engine cylinder head gasket engineered for select Mercedes-Benz C240, C320, CLK320, E320, C32 AMG, SLK32 AMG, SLK320, ML320, and C280 applications, as well as the 2004-2008 Chrysler Crossfire. Mahle gaskets are widely used in OEM and professional repair environments because they focus on consistent sealing performance and dimensional accuracy. This part cross-references FEL-PRO 26434 PT and Mercedes-Benz 112 016 04 20 for the same application.

What This Gasket Helps Address

• Coolant or combustion leakage at the cylinder head interface
• Compression loss between the head and engine block
• Oil seepage from a compromised head sealing surface
• Overheating concerns caused by head gasket failure
• Repair needs after cylinder head service or engine teardown

Installation Notes and Tips

Fits 2004-2008 Chrysler Crossfire, right. Fits 2001-2005 Mercedes-Benz C240, right. Fits 2001-2005 Mercedes-Benz C320, right. Fits 1998-2005 Mercedes-Benz CLK320, right. Fits 1998-2005 Mercedes-Benz E320, right. Fits 2002-2004 Mercedes-Benz C32 AMG, right. Fits 2002-2004 Mercedes-Benz SLK32 AMG, right. Fits 2001-2004 Mercedes-Benz SLK320, right. Fits 1998-2003 Mercedes-Benz ML320, right. Fits 1998-2000 Mercedes-Benz C280, right.

Replacement of cylinder head bolts is necessary for proper installation of this multi-layered steel gasket. Verify head and block surfaces are clean, flat, and within specification before assembly. Follow the vehicle service manual for torque sequence, torque-to-yield procedures, and final inspection.

Quality Assurance

Mahle manufactures sealing products used by OEMs and technicians worldwide, and this gasket is built to OEM-standard expectations for fit and sealing performance in the listed applications.
