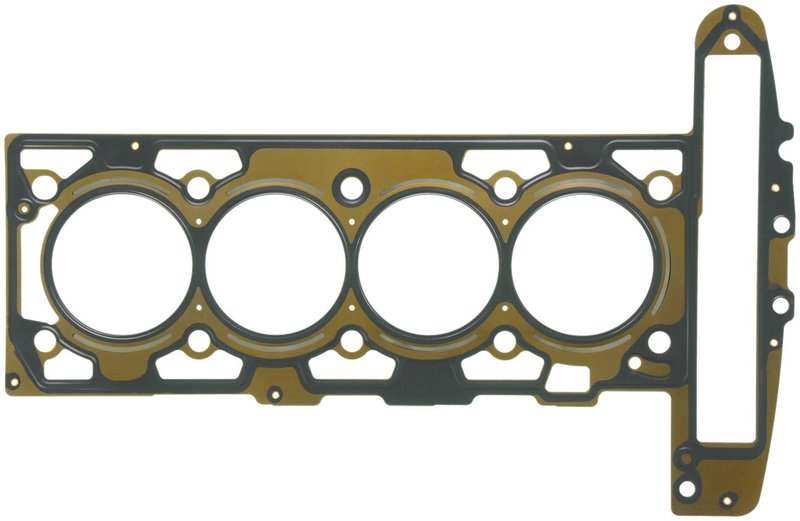

Mahle 54633 Engine Cylinder Head Gasket

Mahle Cylinder Head Gasket for Saab 9-3, 9-3X, 9-5

Mahle 54633 is an OEM-standard engine cylinder head gasket built with multi-layered steel construction for precise sealing performance. It is a direct-fit sealing component for select Saab applications, including Saab 9-3, Saab 9-3X, and Saab 9-5 models.

Key Features

• Multi-layered steel cylinder head gasket construction
• OEM-standard item grade for factory-style fit and sealing
• 0.04 in. / 1.04 mm thickness
• 3.42 in. / 86.74 mm cylinder bore diameter
• No gasket sealant included
• Torque-to-yield application
• Includes head gasket only

Detailed Product Overview

Mahle 54633 is engineered for engine sealing service where cylinder head integrity is critical. The multi-layered steel design supports consistent compression sealing across the combustion chamber, coolant passages, and oil passages. This part cross-references FEL-PRO 26584 PT and Saab 93175913 for the same application. It is a strong match for Saab 9-3 cylinder head gasket replacement needs, as well as Saab 9-3X and Saab 9-5 service work that requires an OEM-standard sealing solution.

For buyers searching for a Mahle 54633 head gasket, this part is specified with a 1.04 mm thickness and 86.74 mm bore diameter. The torque-to-yield note is important for installation planning because cylinder head bolts must be replaced for proper installation of the multi-layered steel gasket.

Common Repair Uses

• Repairing combustion gas leakage between the cylinder head and engine block
• Addressing coolant loss caused by head gasket sealing failure
• Correcting oil and coolant cross-contamination at the head sealing surface
• Restoring compression loss from a damaged cylinder head gasket
• Replacing a worn gasket during cylinder head service on Saab 9-3, Saab 9-3X, or Saab 9-5 engines

Installation Notes

Fits 2003-2011 Saab 9-3, N/A. Fits 2010-2011 Saab 9-3X, N/A. Fits 2011 Saab 9-5, N/A. Replacement of cylinder head bolts is necessary for proper installation of the multi-layered steel gasket. Clean and inspect the head and block sealing surfaces before assembly, and verify bore and thickness requirements against the engine specification before installation.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide for engine sealing applications. Mahle 54633 is built to OEM-standard expectations for fitment and sealing performance in the listed Saab applications.
