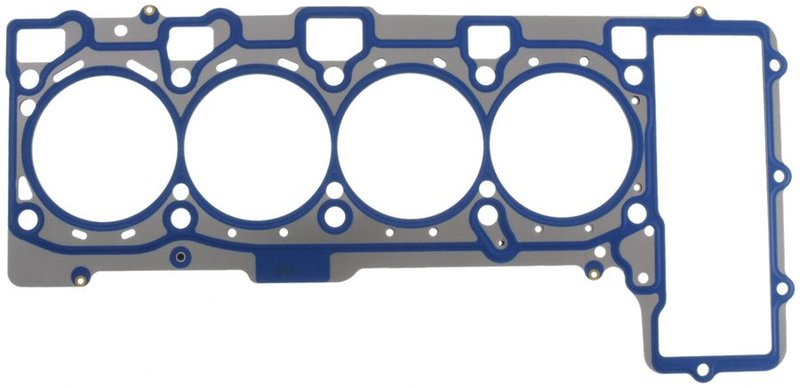

Mahle 54672 Engine Cylinder Head Gasket - Right

OE-Style Cylinder Head Gasket for Audi and Volkswagen

The Mahle 54672 engine cylinder head gasket is a multi-layered steel sealing solution built to OE standard requirements. It is specified for select Audi R8, A8 Quattro, S5, A6 Quattro, Q7, RS4, and Volkswagen Touareg applications with right-side fitment.

Mahle gaskets are used by OEMs and technicians worldwide for dependable engine sealing. This gasket is engineered for the 84.95 mm cylinder bore diameter and 1.40 mm thickness listed for this application.

Key Features

• Multi-layered steel construction for cylinder head sealing
• OE standard item grade
• 1.40 mm thickness for the specified application
• 84.95 mm cylinder bore diameter
• No gasket sealant included
• Designed for right-side engine applications

Detailed Description

Mahle 54672 is an engine cylinder head gasket made from multi-layered steel to match the sealing demands of modern performance and luxury engines. It is a direct-fit sealing component for select Audi and Volkswagen models, including the Audi R8, Audi A8 Quattro, Audi S5, Audi A6 Quattro, Audi Q7, Audi RS4, and Volkswagen Touareg. The Mahle 54672 part number is also referenced under OE and aftermarket cross numbers for the same application.

This part cross-references Audi and Volkswagen OE number 079 103 383 AQ for the same application.

What This Part Helps Address

• Combustion gas leakage at the cylinder head interface
• Coolant seepage between the head and engine block
• Oil leakage from a compromised head gasket seal
• Compression loss that affects engine performance
• Sealing issues after cylinder head service or rebuild work

Installation Notes and Tips

Fits 2014-2015 Audi R8, right; 2008-2012 Audi R8, right; 2007-2012 Audi A8 Quattro, right; 2008-2012 Audi S5, right; 2007-2011 Audi A6 Quattro, right; 2007-2010 Audi Q7, right; 2007-2009 Volkswagen Touareg, right; and 2007-2008 Audi RS4, right. Replacement of cylinder head bolts is necessary for proper installation of the multi-layered steel gasket. Verify engine code, cylinder bank, and sealing surface condition before assembly. The Mahle 54672 should be installed on a clean, flat mating surface to maintain proper sealing performance.

Quality Assurance

Mahle supplies sealing products used by OEMs and technicians around the globe, and this gasket is built to OE standard specifications for the listed applications. The Mahle 54672 is manufactured as a precision engine sealing component for consistent fit and function in Audi and Volkswagen service work.
