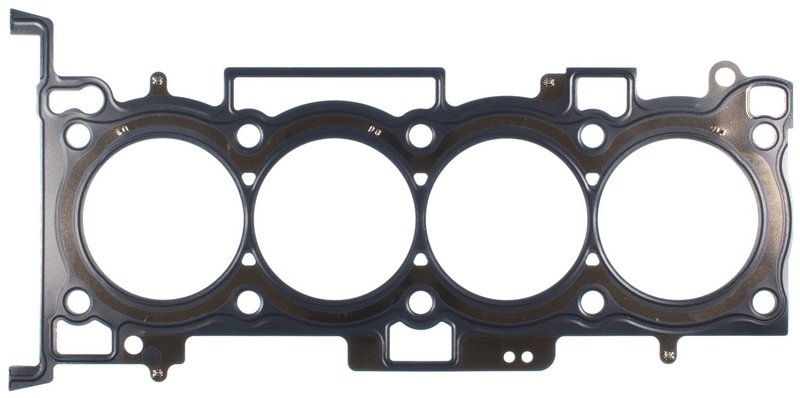

Mahle 54741 Engine Cylinder Head Gasket

Mahle 54741 Cylinder Head Gasket for Hyundai and Kia

The Mahle 54741 engine cylinder head gasket is an OEM-standard sealing solution for select Hyundai and Kia applications. Built with multi-layered steel construction, it supports reliable combustion sealing in high-load engine environments and is specified for vehicles that require torque-to-yield fastener replacement during service.

Key Features

• Multi-layered steel cylinder head gasket for durable sealing performance
• OEM-standard item grade for factory-style service replacement
• 0.04 in. / 1.09 mm thickness for precise head sealing
• 3.53 in. / 89.69 mm cylinder bore diameter
• No gasket sealant included; installs as a dry MLS gasket
• Torque-to-yield fastener application

Detailed Description

Mahle 54741 is an engine cylinder head gasket engineered for select Hyundai Sonata, Tucson, Santa Fe, and Kia Optima, Forte, Sorento, Sportage, Rondo, Magentis, and related applications. The multi-layered steel design helps maintain a stable seal between the cylinder head and engine block, while the OEM-standard construction supports service work that follows original equipment specifications. This part cross-references FEL-PRO 26333 PT and Hyundai 22311-2G700 for the same application.

Mahle gaskets are used by OEMs and technicians worldwide, and this part number is built for engines that require accurate bore coverage and controlled compressed thickness. If you are replacing a blown head gasket on a Hyundai Sonata or Kia Optima, Mahle 54741 provides the sealing profile needed for proper engine reassembly.

Common Problems This Part Helps Address

• Coolant loss from a failed cylinder head gasket seal
• Compression leakage between cylinders or into the cooling system
• Overheating caused by combustion gases entering the coolant passages
• Oil and coolant mixing from head gasket failure
• Loss of engine performance after cylinder head service

Installation Notes and Tips

• Fits 2006-2016 Kia Optima, N/A
• Fits 2006-2015 Hyundai Sonata, N/A
• Fits 2010-2013 Hyundai Tucson, N/A
• Fits 2010-2013 Kia Forte, N/A
• Fits 2010-2013 Kia Forte Koup, N/A
• Fits 2012-2013 Kia Forte5, N/A
• Fits 2011-2013 Kia Sorento, N/A
• Fits 2011-2013 Kia Sportage, N/A
• Fits 2010-2012 Hyundai Santa Fe, N/A
• Fits 2007-2012 Kia Rondo, N/A
• Fits 2011 Hyundai Tucson, N/A; cylinder head bolt replacement recommended
• Fits 2007-2010 Kia Magentis, N/A

Replacement of cylinder head bolts is necessary for proper installation of this multi-layered steel gasket in the listed applications. Verify engine code, head surface condition, and bolt torque procedure before assembly. Clean mating surfaces thoroughly and follow the manufacturer’s tightening sequence and torque specifications during installation.

Quality Assurance

Mahle manufactures sealing products used in OEM and professional repair environments, and this gasket is built to OEM-standard requirements for the listed Hyundai and Kia applications. The part is supplied without sealant and without additional package contents.
