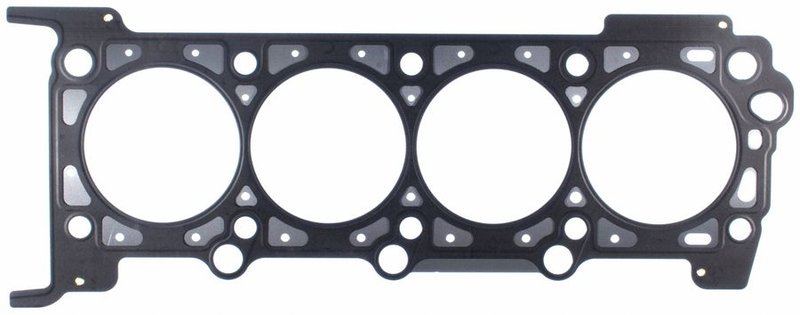

Mahle 54759 Engine Cylinder Head Gasket - Right

Mahle Cylinder Head Gasket for Ford V8 Applications

Mahle Part Number 54759 is an OEM-standard engine cylinder head gasket built for sealing performance in select Ford, Lincoln, and Mercury V8 applications. This multi-layered steel gasket is specified for the right side and is engineered for the 3.64 in / 92.30 mm cylinder bore used in the listed vehicles.

For Ford F-150, E-150, E-250, E-350 Super Duty, Crown Victoria, Lincoln Town Car, and Mercury Grand Marquis applications, Mahle 54759 provides the sealing construction technicians expect when servicing the cylinder head. The design uses multi-layered steel and requires torque-to-yield fastener replacement during installation.

Key Features

• Mahle Part Number 54759 cylinder head gasket
• Multi-layered steel construction for engine sealing
• OEM standard item grade
• Right-side application
• 3.64 in / 92.30 mm cylinder bore diameter
• Thickness: 0.04 in / 1.04 mm
• No gasket sealant included
• Torque-to-yield fastener application

Detailed Description

Mahle 54759 is a cylinder head gasket for engines that require a multi-layered steel sealing surface and precise bore alignment. Mahle gaskets are used by OEMs and technicians worldwide for engine sealing applications, and this part follows that OE-standard approach for the listed Ford, Lincoln, and Mercury vehicles. This part cross-references Ford 9W7Z 6051-A and FEL-PRO 26483 PT for the same application.

Compatible With 2009-2016 Ford E-350 Super Duty, right; 2009-2014 Ford E-150, right; 2009-2014 Ford E-250, right; 2009-2011 Ford Crown Victoria, right; 2009-2011 Lincoln Town Car, right; 2009-2011 Mercury Grand Marquis, right; and 2009-2010 Ford F-150, right. Mahle 54759 is a direct-fit sealing component for these engine service jobs when the correct cylinder head and fastener specifications are followed.

What It Helps Address

• Coolant leakage at the cylinder head sealing surface
• Compression loss between the head and engine block
• Combustion sealing issues after head service
• Oil and coolant cross-contamination caused by gasket failure
• Repeat repairs when the original head gasket no longer seals properly

Installation Notes and Tips

Replace the cylinder head bolts during installation, as required for this torque-to-yield application. Verify the right-side position, cylinder bore diameter, and engine code before assembly. Clean and inspect the mating surfaces carefully, and follow the vehicle manufacturer’s torque sequence and angle specifications during reassembly.

Quality Assurance

Mahle supplies OEM-standard sealing products trusted in engine repair and original equipment applications. Part Number 54759 is built as a multi-layered steel cylinder head gasket to meet the sealing demands of the listed Ford, Lincoln, and Mercury vehicles.
