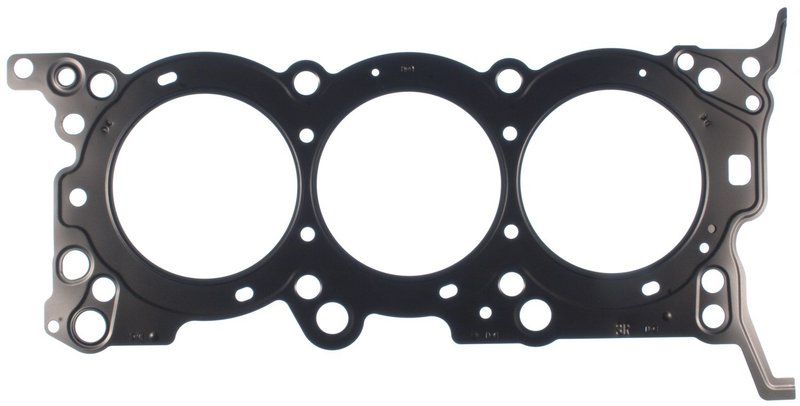

Mahle 54762 Engine Cylinder Head Gasket - Right

Mahle 54762 Cylinder Head Gasket

The Mahle 54762 engine cylinder head gasket is an OEM-standard sealing solution for select Hyundai and Kia applications. Built with multi-layered steel construction, it is specified for precise sealing performance in the right-side cylinder head position.

Key Features

• Multi-layered steel cylinder head gasket material for durable sealing
• OEM standard item grade for factory-style replacement
• 0.50 mm thickness / 0.02 in thickness specification
• 3.65 in cylinder bore diameter / 93.65 mm bore diameter
• No gasket sealant included
• Mahle part number 54762

Product Details

Mahle 54762 is an engine cylinder head gasket engineered for right-side applications on select Hyundai Santa Fe XL, Hyundai Azera, Hyundai Santa Fe, Hyundai Sonata, Kia Sedona, Kia Sorento, and related vehicles listed below. The multi-layered steel design supports consistent combustion sealing and coolant/oil separation in demanding engine environments. This part cross-references Hyundai/Kia OE numbers 22311-3C120 and 22311-3C140 for the same application.

Vehicle Fitment

• Fits 2013-2016 Hyundai Santa Fe XL, Right. Replacement of cylinder head bolts necessary for proper installation of multi-layered steel gasket.
• Fits 2014 Kia Sedona, Right. Replacement of cylinder head bolts necessary for proper installation of multi-layered steel gasket.
• Fits 2011-2012 Kia Sedona, Right. Replacement of cylinder head bolts necessary for proper installation of multi-layered steel gasket.
• Fits 2007-2011 Hyundai Azera, Right. Replacement of cylinder head bolts necessary for proper installation of multi-layered steel gasket.
• Fits 2011 Kia Sorento, Right. Replacement of cylinder head bolts necessary for proper installation of multi-layered steel gasket.
• Fits 2008-2009 Kia Sorento, Right. Replacement of cylinder head bolts necessary for proper installation of multi-layered steel gasket.
• Fits 2007-2010 Hyundai Santa Fe, Right. Replacement of cylinder head bolts necessary for proper installation of multi-layered steel gasket.
• Fits 2006-2010 Hyundai Sonata, Right. Replacement of cylinder head bolts necessary for proper installation of multi-layered steel gasket.

Common Repair Uses

• Head gasket replacement after combustion sealing failure
• Repair for coolant loss caused by cylinder head sealing issues
• Repair for oil and coolant mixing at the head-to-block interface
• Correction of compression loss in the right-side cylinder bank
• Service work on Hyundai Santa Fe XL, Sonata, Santa Fe, Azera, and Kia Sedona or Sorento engines

Installation Notes

Clean and inspect the cylinder head and block mating surfaces before installation. Follow the engine service procedure for torque sequence and torque-angle specifications, and replace the cylinder head bolts as noted for proper installation of this multi-layered steel gasket. Verify bore diameter, thickness, and right-side application before assembly.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide for engine sealing applications. The 54762 gasket is built to OEM-standard requirements for dependable fit and sealing performance in the listed Hyundai and Kia vehicles.
