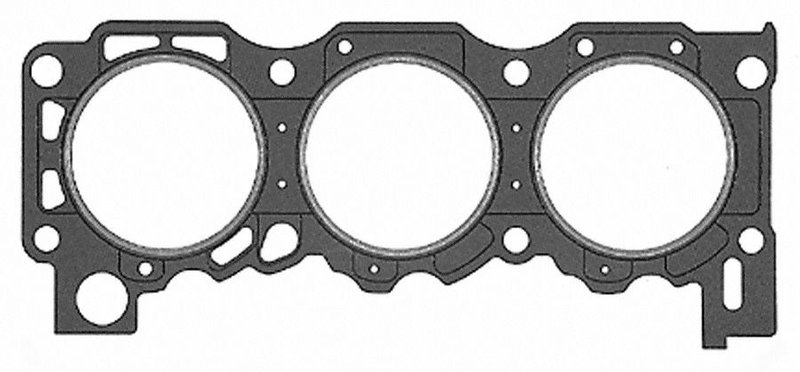

Mahle 5722 Engine Cylinder Head Gasket - Right

Mahle 5722 Cylinder Head Gasket

The Mahle 5722 engine cylinder head gasket is an OEM-standard sealing component for select Ford applications. Built with composite gasket material and a 0.05 in. (1.36 mm) thickness, it is specified for a 3.74 in. (95.00 mm) cylinder bore and uses a torque-to-yield fastener setup.

Key Features

• Composite cylinder head gasket material for engine sealing
• OEM standard item grade for service replacement use
• 0.05 in. / 1.36 mm thickness
• 3.74 in. / 95.00 mm cylinder bore diameter
• Torque-to-yield application
• Head gasket only; gasket sealant not included

Application Details

Compatible with 1986-1992 Ford Ranger, right side, and 1986-1990 Ford Bronco II, right side. This Mahle 5722 head gasket is a direct-fit sealing solution for these Ford engine applications and is commonly searched as a Ford Ranger right cylinder head gasket or Ford Bronco II right head gasket replacement. This part cross-references FEL-PRO 9510 PT for the same application.

What It Helps Address

• Coolant leakage at the cylinder head sealing surface
• Compression loss between the head and engine block
• Combustion gas leakage caused by a worn gasket
• Oil seepage at the head-to-block interface
• Sealing issues after cylinder head service or rebuild work

Installation Notes

Replace cylinder head bolts when using a composite engine cylinder head gasket on these Ford applications. Verify cylinder bore diameter, gasket thickness, and right-side fitment before installation. Clean and inspect the mating surfaces carefully to support proper sealing on the Ford Ranger and Ford Bronco II.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide for engine sealing applications. The 5722 is built to OEM-standard expectations for fit and sealing performance in the listed Ford Ranger and Ford Bronco II applications.
