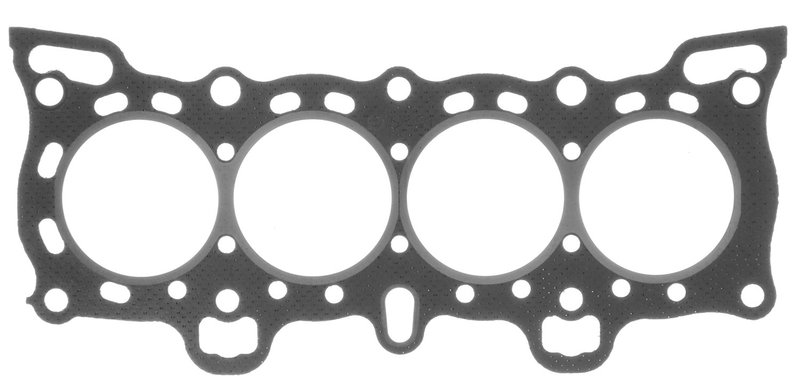

Mahle 5731 Engine Cylinder Head Gasket
OE Quality 60-Day Returns
Mahle

Mahle 5731 Engine Cylinder Head Gasket

Brand Mahle 5731
Material Composite
Thickness 0.05
Thickness 1.27
Cylinder Bore Diameter 2.99
Cylinder Bore Diameter 75.95
Gasket Sealant Included No
Additional Package Contents Head gasket
Cylinder Head Gasket Material Graphite
Item Grade Oem standard
Package Quantity 1
Fits Honda · 23 vehicles

OEM-standard fit. Composite construction with graphite sealing material for reliable cylinder head sealing.

Precise sealing thickness. 1.27 mm profile helps maintain accurate compression sealing during engine service.

Trusted sealing brand. Mahle gaskets are used by OEMs and technicians around the world.

Cross-references FEL-PRO 9123 PT, FEL-PRO 26320 PT and Honda 12251-PM3-003 for the same application. See all 6.

$33.94Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $33.94
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Cylinder Head Gasket options

Engine Cylinder Head Gasket Overview

This Mahle engine cylinder head gasket is built for sealing performance in classic Honda applications. It uses an OEM-standard composite construction with graphite cylinder head gasket material and is listed for direct fitment on specific Civic, Civic del Sol, and CRX applications.

  • OEM-standard gasket construction for dependable sealing
  • Composite design with graphite sealing material
  • 1.27 mm thickness for precise head sealing
  • Compatible with Honda Civic, Honda Civic del Sol, and Honda CRX applications
  • Mahle sealing product backed by OEM and technician trust

Detailed Product Information

Mahle 5731 is an engine cylinder head gasket engineered for the 1988-1995 Honda Civic, 1993-1995 Honda Civic del Sol, and 1988-1991 Honda CRX. The gasket is specified with a 75.95 mm cylinder bore diameter and a 1.27 mm thickness, with no gasket sealant included. Its composite build and graphite sealing surface support consistent cylinder head sealing in applications that require accurate fit and stable compression sealing. The part number 5731 is a direct reference for ordering and catalog lookup.

This part cross-references FEL-PRO 9123 PT and 26320 PT for the same application.

What It Helps Address

  • Coolant or combustion leakage at the cylinder head interface
  • Compression loss caused by a worn or damaged head gasket
  • Sealing issues after cylinder head service or engine repair
  • Fitment problems when replacing an OEM-style gasket on listed Honda engines

Installation Notes

Fits 1988-1995 Honda Civic, N/A. Fits 1993-1995 Honda Civic del Sol, N/A. Fits 1988-1991 Honda CRX, N/A. Use graphite cylinder head bolts when installing this engine cylinder head gasket. Verify cylinder head and block surfaces are clean, flat, and free of old gasket material before assembly. Follow the service manual for torque sequence and tightening specifications.

Quality Assurance

Mahle gaskets are sealing products trusted by OEMs and technicians worldwide. Part number 5731 is an OEM-standard gasket designed for applications that require accurate sealing performance.

This part fits 23 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
1995HondaCivic1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1995HondaCivic del Sol1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1994HondaCivic1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1994HondaCivic del Sol1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1993HondaCivic1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1993HondaCivic del Sol1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1992HondaCivic1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1991HondaCivic1.6LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1991HondaCivic1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1991HondaCRX1.6LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1991HondaCRX1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1990HondaCivic1.6LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1990HondaCivic1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1990HondaCRX1.6LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1990HondaCRX1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1989HondaCivic1.6LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1989HondaCivic1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1989HondaCRX1.6LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1989HondaCRX1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1988HondaCivic1.6LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1988HondaCivic1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1988HondaCRX1.6LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1988HondaCRX1.5LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
FEL-PRO — 9123 PTFEL-PRO — 26320 PTHonda — 12251-PM3-003Honda — 12251-PM5-S01Honda — 12251-PM5-S02Rol — HG33080
