Mahle 5851 Engine Cylinder Head Gasket
OE Quality 60-Day Returns
Mahle

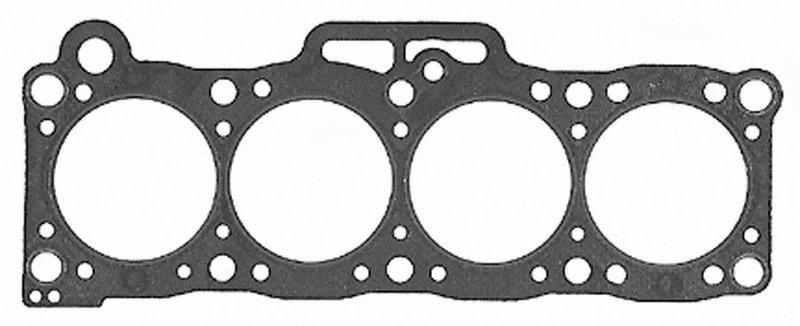

Mahle 5851 Engine Cylinder Head Gasket

Brand Mahle 5851
Material Composite
Thickness 0.05
Thickness 1.32
Cylinder Bore Diameter 3.46
Cylinder Bore Diameter 87.88
Gasket Sealant Included No
Additional Package Contents Head gasket
Cylinder Head Gasket Material Graphite
Item Grade Oem standard
Package Quantity 1
Fits Ford and Mazda · 21 vehicles

OEM-standard fit. Engine cylinder head gasket built to match original sealing requirements.

Graphite sealing material. Composite construction helps maintain a dependable seal under heat and pressure.

Mahle sealing expertise. Trusted by OEMs and technicians for engine gasket applications.

Cross-references Beck/Arnley 035-1832, FEL-PRO 9572 PT and Mazda F202-10-271 for the same application. See all 8.

$59.28Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $59.28
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Cylinder Head Gasket options

Engine sealing for select applications

This Mahle engine cylinder head gasket is an OEM-standard sealing component built for select Mazda and Ford applications. It uses composite construction with a graphite cylinder head gasket material to support reliable sealing under engine heat and pressure.

Key features

  • OEM-standard engine cylinder head gasket from Mahle.
  • Composite gasket construction with graphite sealing material.
  • Thickness measures 0.05 in. / 1.32 mm.
  • Cylinder bore diameter is 3.46 in. / 87.88 mm.
  • Gasket sealant is not included.
  • Additional package contents include the head gasket.

Detailed fitment and application

Fits 1987-1993 Mazda B2200, N/A. Fits 1989-1992 Ford Probe, N/A. Fits 1988-1992 Mazda 626, N/A. Fits 1988-1992 Mazda MX-6, N/A. This Mahle 5851 is a direct sealing solution for engines that require the specified bore and thickness dimensions. The 5851 part number is also referenced for the same application under cross-reference numbers such as Beck/Arnley 035-1832 and FEL-PRO 9572 PT.

What this part helps address

  • Coolant or combustion sealing loss at the cylinder head interface.
  • Compression leakage caused by a worn or damaged gasket.
  • Oil seepage between the cylinder head and engine block.
  • Service replacement needs during cylinder head repair.

Installation notes and quality

Use graphite cylinder head bolts when installing this engine cylinder head gasket, as noted in the fitment data. Verify bore diameter, thickness, and engine application before installation. Mahle gaskets are trusted by OEMs and technicians worldwide for sealing performance. Part number 5851 should be matched to the vehicle application and engine specifications before assembly.

This part fits 21 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
1993MazdaB22002.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1992FordProbe2.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1992Mazda6262.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1992MazdaB22002.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1992MazdaMX-62.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1991FordProbe2.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1991Mazda6262.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1991MazdaB22002.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1991MazdaMX-62.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1990FordProbe2.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1990Mazda6262.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1990MazdaB22002.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1990MazdaMX-62.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1989FordProbe2.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1989Mazda6262.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1989MazdaB22002.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1989MazdaMX-62.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1988Mazda6262.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1988MazdaB22002.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1988MazdaMX-62.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
1987MazdaB22002.2LL4Use graphite cylinder head bolts when installing Engine Cylinder Head Gasket.
Directly replaces or cross-references 8 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 035-1832FEL-PRO — 9572 PTMazda — F202-10-271Mazda — F202-10-271AMazda — F220-10-271AMazda — FE1H-10-271AMazda — FE1H-10-271BRol — HG33150
