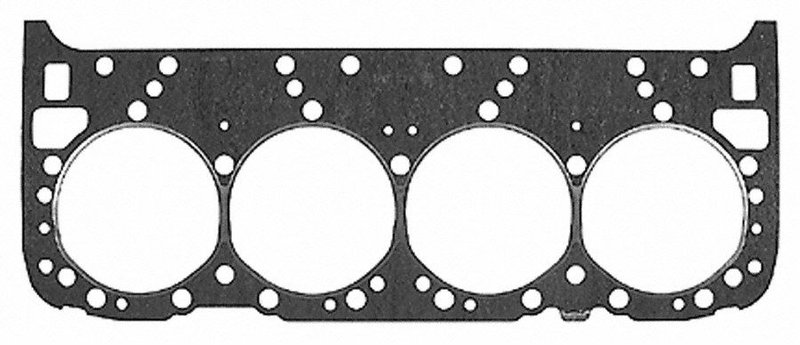

Mahle 5922 Engine Cylinder Head Gasket

Mahle 5922 Cylinder Head Gasket

The Mahle 5922 engine cylinder head gasket is an OEM-standard composite gasket built for reliable sealing in select GM V8 applications. It is specified for vehicles such as the Chevrolet Camaro, Pontiac Firebird, and Chevrolet Corvette, with fitment spanning 1992-1997 model years.

Key Features

• Composite cylinder head gasket material for dependable sealing performance
• OEM Standard item grade for factory-style replacement
• 0.07 in. / 1.73 mm thickness
• 104.14 mm / 4.10 in. cylinder bore diameter
• Torque-to-yield fastener application
• Head gasket only; sealant not included

Product Details

Mahle 5922 is a composite engine cylinder head gasket engineered for direct replacement in compatible Chevrolet, Pontiac, Buick, and Cadillac applications. Mahle gaskets are widely used by OEMs and technicians for sealing performance, and this part follows an OEM-standard specification with the correct bore diameter and thickness for the listed engines. This part cross-references FEL-PRO 9966 PT and General Motors 10168457 for the same application.

Compatible With 1993-1997 Chevrolet Camaro, N/A; 1993-1997 Pontiac Firebird, N/A; 1994-1996 Buick Roadmaster, N/A; 1994-1996 Cadillac Commercial Chassis, N/A; 1994-1996 Cadillac Fleetwood, N/A; 1994-1996 Chevrolet Caprice, N/A; 1992-1996 Chevrolet Corvette, N/A; 1994-1996 Chevrolet Impala, N/A; 1994 Chevrolet Commercial Chassis, N/A.

What This Gasket Helps Address

• Coolant leakage at the cylinder head sealing surface
• Compression loss between the cylinder head and engine block
• Combustion sealing issues caused by a worn head gasket
• Oil and coolant cross-contamination from a failed gasket
• Restoration work on GM engines requiring an OEM-style composite gasket

Installation Notes

Replace cylinder head bolts when using a composite engine cylinder head gasket, as noted in the fitment data. Verify cylinder bore diameter, thickness, and engine application before installation. Clean and inspect the head and block sealing surfaces carefully to support proper gasket seating.

Quality Assurance

Mahle gaskets are trusted by OEMs and technicians around the globe for sealing applications. The 5922 head gasket is built to OEM-standard specifications for the listed vehicles and engine configurations.
