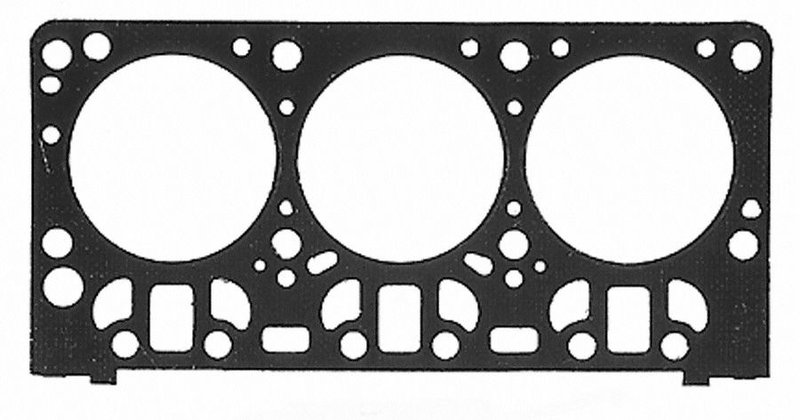

Mahle 5941 Engine Cylinder Head Gasket

Mahle 5941 Cylinder Head Gasket

The Mahle 5941 engine cylinder head gasket is an OEM-standard sealing solution for select Dodge trucks and vans. Built with composite construction and graphite cylinder head gasket material, it is specified for applications that require reliable combustion sealing and proper cylinder head-to-block interface control.

Key Features

• Engine cylinder head gasket for select Dodge Dakota, Ram 1500, Durango, and B-series applications
• Composite gasket construction with graphite cylinder head gasket material
• OEM standard item grade for factory-style service replacement
• 1.39 mm thickness / 0.05 in thickness
• 102.87 mm / 4.05 in cylinder bore diameter
• Torque-to-yield application: Yes
• Gasket sealant included: No
• Additional package contents: Head gasket

Detailed Description

Mahle 5941 is a replacement engine cylinder head gasket engineered for specific Chrysler/Dodge V8 applications where accurate sealing around the combustion chamber is critical. The graphite-faced, composite design is intended to match OEM-style service requirements, while the 102.87 mm bore diameter and 1.39 mm compressed thickness support proper fitment in the listed engines. This part cross-references FEL-PRO (e.g., 518SD, 9910 PT) for the same application.

Compatible With select Dodge Dakota, Dodge Ram 1500, Dodge Durango, Dodge B1500, Dodge B2500, Dodge B150, Dodge B250, Dodge D150, Dodge D250, Dodge W150, and Dodge Ram 1500 Van applications. The Mahle 5941 part number is also referenced in service and catalog listings for these vehicles, making it a practical choice for engine repair work that calls for an OEM-standard head gasket.

What It Is Used For

• Replacing a leaking cylinder head gasket on listed Dodge engines
• Restoring compression sealing between the cylinder head and engine block
• Addressing coolant or combustion sealing concerns at the head interface
• Supporting repair after cylinder head service or engine teardown
• Maintaining factory-style sealing dimensions in torque-to-yield applications

Installation Notes and Tips

• Use graphite cylinder head bolts when installing this engine cylinder head gasket, as noted for the listed applications.
• Verify cylinder bore diameter, thickness, and engine code before installation.
• Inspect the cylinder head and block surfaces for flatness, corrosion, and residue before assembly.
• Follow the vehicle-specific torque sequence and torque-to-yield procedure during installation.
• Do not apply gasket sealant unless the service procedure specifically calls for it; sealant is not included.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide for sealing applications that require consistent fit and service-grade performance. Mahle 5941 is built to OEM-standard specifications for the listed Dodge fitments.
