OE Quality
60-Day Returns

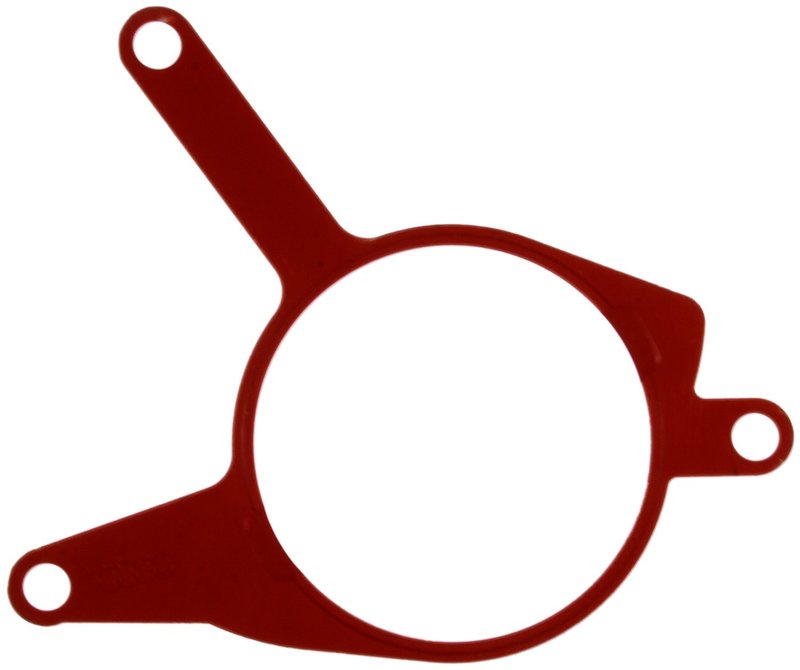

Mahle B32548 Vacuum Pump Gasket
Mahle Vacuum Pump Gasket for Audi Applications
The Mahle B32548 vacuum pump gasket is a rubber coated metal sealing component built for precise sealing at the vacuum pump interface. It is a direct-fit style gasket for select Audi models, including Audi A6 and Audi A4 Quattro applications, where reliable sealing is critical to maintaining system integrity.
Key Features
- Rubber coated metal gasket construction for stable sealing performance
- Mahle sealing product line trusted by OEMs and technicians
- Designed for vacuum pump sealing applications
- Direct replacement part number B32548
- Cross-reference: Audi 06E 145 215 A for the same application
Detailed Description
Mahle B32548 is a vacuum pump gasket made from rubber coated metal to provide a consistent seal between mating surfaces. Mahle’s gasket line is known for OE-style sealing solutions used in demanding engine and emission control service work. This part number is used on select Audi vehicles, including 2010 Audi A6, 2005-2009 Audi A4 Quattro, 2006-2009 Audi A6, 2006-2008 Audi A4, and 2005-2008 Audi A6 Quattro. If you are searching for a Mahle vacuum pump gasket B32548 for Audi A6 or Audi A4 Quattro service, this part matches the listed applications.
What This Part Helps Address
- Vacuum pump oil seepage at the gasket surface
- Loss of sealing between the pump and mounting face
- Air leakage at the vacuum pump interface
- Service replacement for worn or flattened gasket material
- Throttle body mounting seal service on listed Audi applications
Installation Notes and Tips
Confirm the engine and application against the vehicle listing before installation. Clean both mating surfaces thoroughly and inspect the vacuum pump and mounting face for damage, warpage, or residue before fitting the new gasket. Follow factory service procedures and torque specifications for the specific Audi model and engine configuration.
Quality Assurance
Mahle manufactures sealing products used by OEMs and professional technicians worldwide, and this gasket reflects that OE-focused approach to fit and sealing performance.
| Brand | Mahle |
|---|---|
| Part Number | B32548 |
| Gasket Material | Rubber Coated Metal |
This part fits 17 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Audi | A6 | 3.2L | V6 | N/A | Rubber Coated Metal; Vacuum Pump Gasket |
| 2009 | Audi | A4 Quattro | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2009 | Audi | A6 | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2008 | Audi | A4 | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2008 | Audi | A4 Quattro | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2008 | Audi | A6 | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2008 | Audi | A6 Quattro | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2007 | Audi | A4 | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2007 | Audi | A4 Quattro | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2007 | Audi | A6 | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2007 | Audi | A6 Quattro | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2006 | Audi | A4 | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2006 | Audi | A4 Quattro | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2006 | Audi | A6 | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2006 | Audi | A6 Quattro | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2005 | Audi | A4 Quattro | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
| 2005 | Audi | A6 Quattro | 3.2L | V6 | N/A | Rubber coated metal gasket for fuel injection throttle body mounting. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
