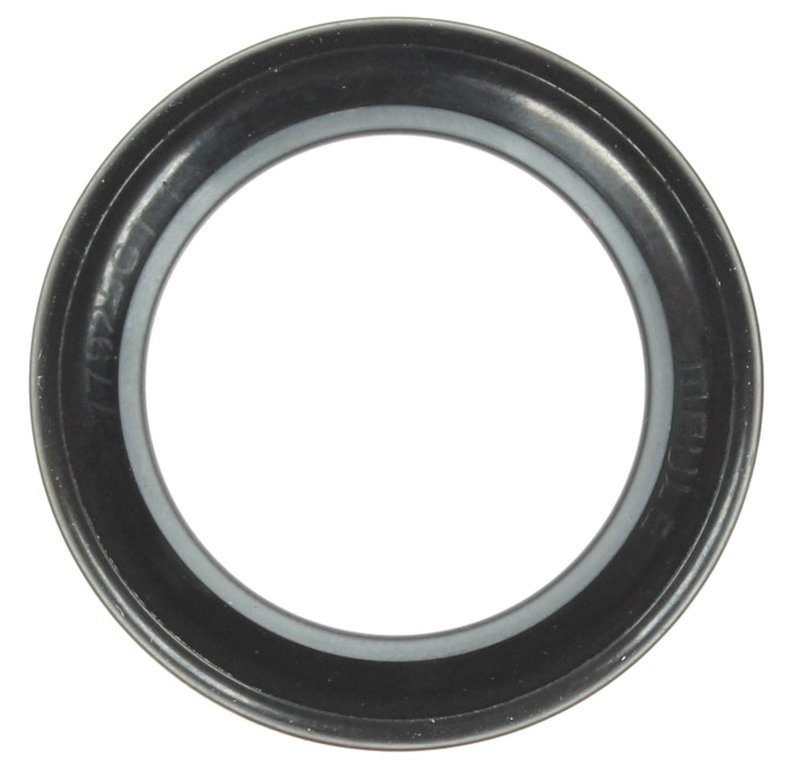

Mahle B33509 Engine Variable Valve Timing (VVT) Solenoid Gasket

Mahle VVT Solenoid Gasket for Ford Applications

Restore sealing at the variable valve timing solenoid with the Mahle B33509 gasket. Built with molded rubber and a steel carrier, this OEM-standard seal is made for dependable fitment on a wide range of Ford and Lincoln engines, including Ford F-150, Mustang, Escape, and Explorer applications.

Mahle’s Variable Valve Timing (VVT) Solenoid Gasket line focuses on precise sealing performance for engine oil control areas where leaks can affect operation and cleanliness. The B33509 is a direct replacement style seal for service work on Ford VCT systems.

Key Features

• OEM-standard VVT solenoid gasket for engine sealing service
• Molded rubber construction with steel carrier for stable sealing
• Includes camshaft VCT (VVT) solenoid seal
• Lower inside diameter: 1.143 in. (29.04 mm)
• Lower outside diameter: 1.673 in. (42.49 mm)
• Thickness: 0.445 in. (11.32 mm)
• Designed for Ford and Lincoln VCT/VVT solenoid sealing applications
• Mahle B33509 for service on select Ford F-150, Mustang, and Explorer engines

Detailed Description

The Mahle B33509 Variable Valve Timing (VVT) Solenoid Gasket is an engine sealing component used at the camshaft VCT solenoid interface. Its molded rubber construction and steel carrier help maintain a consistent seal in oil-exposed areas, supporting clean operation around the solenoid mounting point. This part is a practical replacement for vehicles that use Ford-style VCT sealing hardware, including many Ford F-150, Mustang, Escape, Fusion, Edge, Explorer, and Lincoln MKZ applications.

This part cross-references Ford BR3E-6P251-BA and BR3Z-6C535-B for the same application. Use Mahle B33509 when servicing a leaking or hardened VVT solenoid seal on compatible Ford and Lincoln engines.

What It Is Used For

• Oil seepage around the VVT solenoid area
• Hard, flattened, or cracked original solenoid seals
• Maintenance after camshaft VCT solenoid removal
• Sealing concerns on Ford F-150, Mustang, and Explorer VCT systems
• Restoring proper gasket contact at the solenoid mounting surface

Installation Notes and Tips

Inspect the solenoid mounting surface before installation and clean away oil residue, old seal material, and debris. Confirm the replacement seal matches the original dimensions and orientation before assembly. For best results, install on a cool engine and verify the solenoid is seated evenly to avoid pinching or twisting the gasket.

Compatible With 2015-2025 Ford F-150, N/A; 2015-2023 Ford Mustang, N/A; 2012-2018 Ford Edge, N/A; 2012-2015 Ford Explorer, N/A; 2016-2019 Ford Explorer, N/A; 2013-2020 Ford Fusion, N/A; 2013-2019 Ford Escape, N/A; 2013-2020 Lincoln MKZ, N/A; and additional listed Ford and Lincoln VCT applications.

Quality Assurance

Mahle gaskets are used in sealing applications trusted by OEMs and technicians worldwide. The B33509 is built to OEM-standard expectations for fit and sealing performance in engine service work.
