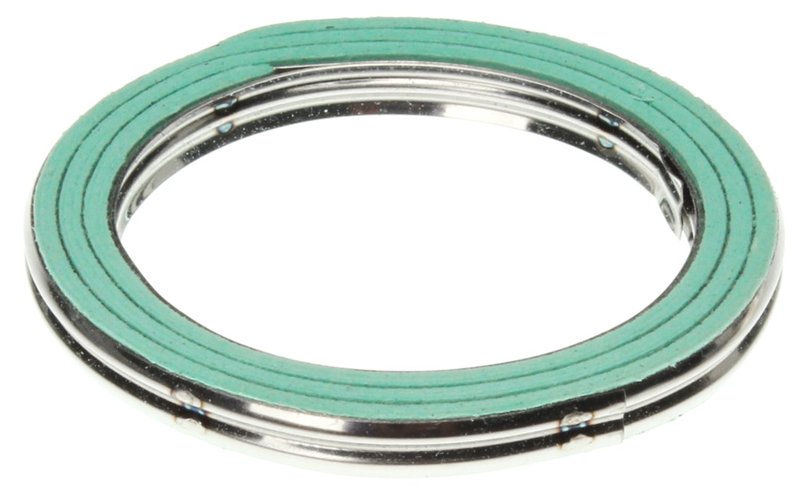

Mahle F14596 Exhaust Pipe Flange Gasket

Exhaust Flange Gasket for OE-Style Sealing

The Mahle F14596 exhaust pipe flange gasket is built for a precise seal between the exhaust manifold and exhaust pipe on select Toyota and Honda applications. It uses a steel and composite construction with an OEM-standard fit and Ring Type A design for dependable sealing performance.

Mahle is known for gasket products trusted by OEMs and technicians worldwide, and this part follows that same OE-style approach for service replacement work. The F14596 is a direct-fit sealing solution for vehicles such as the Toyota Corolla, Toyota Celica, and Honda Civic in the applications listed below.

Key Features

• Mahle F14596 exhaust pipe flange gasket
• OEM Standard item grade for service replacement use
• Steel and composite seal material
• Ring Type A gasket design
• Fits exhaust manifold to exhaust pipe and exhaust pipe to muffler applications listed in fitment
• Cross-reference: FEL-PRO 23588

Detailed Description

This exhaust pipe flange gasket is used to create a tight seal at the exhaust joint, helping maintain exhaust flow integrity and reduce leakage at the connection point. It is listed for a wide range of Toyota and Honda vehicles, including 1970-1995 Toyota Corolla, 1972-1995 Toyota Celica, 1972-1995 Toyota Pickup, 1979-1980 Toyota Corona, 1984-1995 Toyota 4Runner, and 1973-1979 Honda Civic applications. The Mahle F14596 is also referenced by Toyota 90917-06001 and 90917-06038, making it a practical OE-style replacement for service work on these platforms.

What It Helps Address

• Exhaust leaks at the manifold-to-pipe or pipe-to-muffler joint
• Noise from a worn or damaged flange seal
• Loss of sealing integrity after exhaust service
• Corrosion-related gasket failure at the exhaust connection
• Fitment issues when replacing an OE-style ring gasket

Installation Notes and Tips

Install the gasket on the exact exhaust joint listed for your vehicle and verify the flange style before assembly. Clean both mating surfaces thoroughly so the steel and composite sealing surfaces can seat properly. For best results, confirm year, make, model, and emissions configuration before ordering, especially on Toyota Pickup and Celica applications with notes for California emissions or production-date breakpoints.

Quality Assurance

Mahle manufactures gaskets to OEM-standard expectations and supplies sealing products used by OEMs and technicians around the world. This part is built as a service replacement gasket for the listed applications and is backed by Mahle’s established gasket manufacturing expertise.
