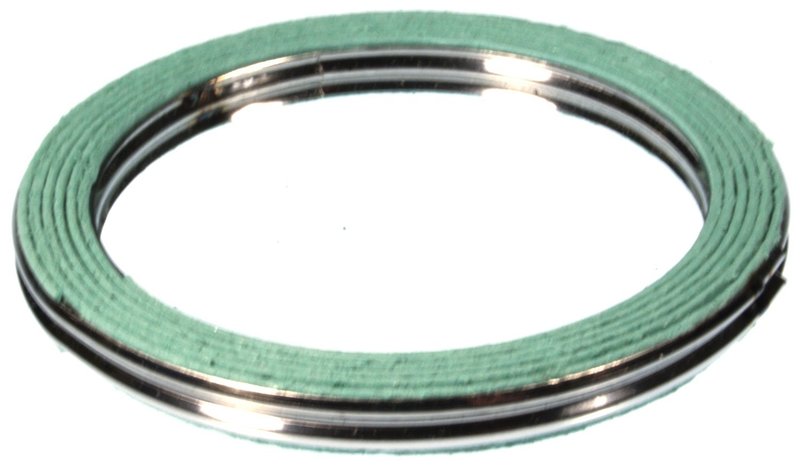

Mahle F32441 Exhaust Pipe Flange Gasket - Inlet

Exhaust Pipe Flange Gasket for Mazda Applications

The Mahle F32441 exhaust pipe flange gasket is an OEM-standard sealing solution for exhaust connections that need a precise, durable seal. Built with steel and graphite materials, it is made for Mazda exhaust service where flange sealing integrity matters.

Use this gasket for Mazda CX-9 and Mazda 6 exhaust repairs where the joint between the pipe, manifold, muffler, or presilencer needs replacement. Mahle F32441 is a ring-type gasket engineered to match the listed OE-style applications.

Key Features

• Brand: Mahle
• Part number: F32441
• Exhaust pipe flange gasket, ring type
• Steel and graphite construction
• OEM standard item grade
• Outside diameter: 2.51 in. (63.95 mm)
• Inside diameter: 1.96 in.
• Gasket wall thickness: 0.202 in. (5.14 mm)
• Additional package contents: contains exhaust pipe gasket

Detailed Description

Mahle F32441 is an exhaust pipe flange gasket built for sealing exhaust joints exposed to heat, vibration, and repeated thermal cycling. The steel and composite-style construction supports a stable seal at the flange interface, while the ring-type design matches the listed Mazda exhaust configurations. This part cross-references Fel-Pro (e.g., 23626, 61572) for the same application.

Compatible With Mazda CX-9 and Mazda 6 exhaust service, this gasket is listed for 2003-2015 Mazda applications including exhaust manifold to exhaust pipe, exhaust pipe to muffler, and middle pipe to presilencer locations. The Mahle F32441 part number is also associated with Mazda OE reference AJ19-40-305.

Common Problems This Gasket Can Address

• Exhaust leaks at a flange connection
• Noise from a worn or damaged exhaust seal
• Soot marks or odor near the exhaust joint
• Loss of sealing after exhaust service or component replacement
• Fitment issues when replacing a deteriorated OE gasket

Installation Notes and Tips

Inspect the flange surfaces before installation and remove carbon buildup, corrosion, or old gasket material. Confirm the gasket matches the vehicle’s exhaust joint location and orientation before tightening the fasteners to the manufacturer’s specification. For Mazda 6 and Mazda CX-9 exhaust repairs, verify the flange faces are flat and the mating parts are aligned before final torque.

Quality Assurance

Mahle gaskets are used in OEM-style sealing applications and are trusted by technicians and vehicle manufacturers for exhaust sealing performance. F32441 is built to OEM-standard expectations for fit and sealing consistency in the listed Mazda applications.
