MahlePart #: F32880

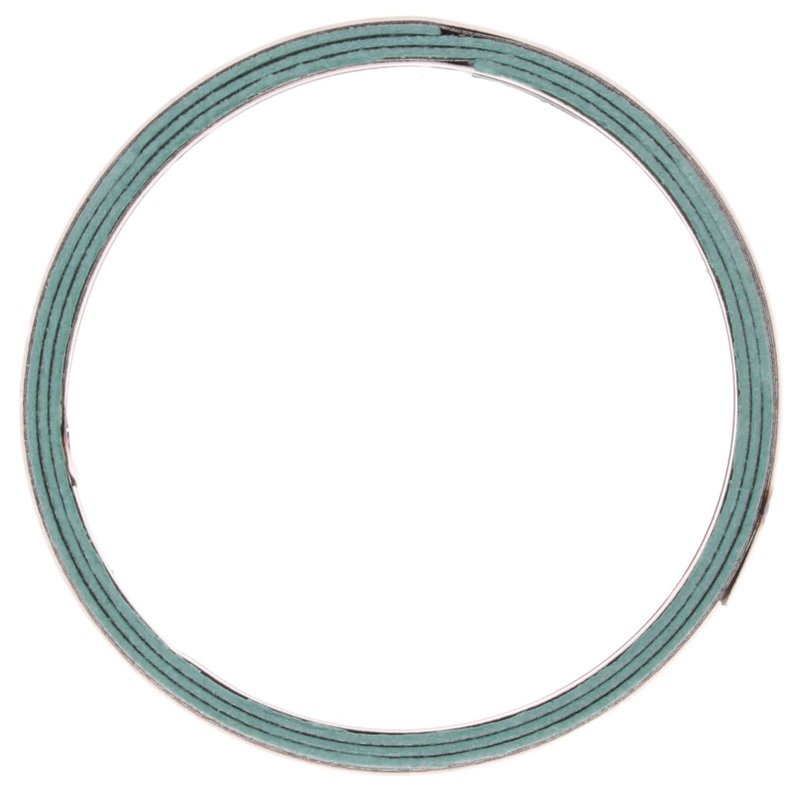

Mahle F32880 Exhaust Pipe Flange Gasket - Center, Front or Rear
74 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$19.09Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
Out of Stock
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Lexus and Toyota, 4Runner, GS400, GS430, Land Cruiser, LS400, LS430, SC400, SC430, Sequoia, and Tundra
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Exhaust Pipe Flange Gasket options
Exhaust Flange Gasket for Toyota and Lexus
The Mahle F32880 exhaust pipe flange gasket is a ring-type sealing solution built for exhaust flange connections that need a precise, heat-resistant seal. With a 2.47 in inside diameter, 2.82 in outside diameter, and 0.248 in thickness, it matches common Toyota and Lexus exhaust service applications where flange sealing is critical.
Mahle gaskets are used by OEMs and technicians worldwide for dependable sealing performance. This F32880 gasket is a direct-fit option for select Toyota Tundra, 4Runner, Sequoia, Land Cruiser, and Lexus GS430, LS430, LS400, SC400, SC430, and GS400 exhaust flange locations.
Key Features
- Part number: F32880
- Ring Type A exhaust pipe flange gasket
- Inside diameter: 2.47 in
- Outside diameter: 2.82 in
- Thickness: 0.248 in
- Steel and composite construction noted in fitment data
- Fits select Toyota and Lexus exhaust flange, connector, front, rear, and center locations
Detailed Description
The Mahle F32880 is an exhaust pipe flange gasket engineered around the listed dimensions for a secure seal at the exhaust joint. Its ring-style design helps maintain proper sealing at flange connections on vehicles such as the Toyota Tundra and Lexus LS430, where exhaust leaks can develop from heat cycling, vibration, and flange wear. If you are replacing a leaking exhaust flange gasket on a Toyota Tundra, 4Runner, or Lexus SC430, this part number F32880 matches the specified application data.
This part cross-references FEL-PRO 61086 for the same application.
What It Helps Fix
- Exhaust leaks at flange connections
- Noise from a failing exhaust seal
- Soot marks around the exhaust joint
- Loss of sealing after flange service or component replacement
- Fitment issues caused by worn or compressed gasket material
Installation Notes and Tips
- Confirm flange diameter and gasket profile before installation.
- Clean both sealing surfaces to remove carbon, rust, and old gasket material.
- Inspect the flange for warping or pitting that can affect sealing.
- Use the listed fitment notes to match center, front, rear, or exhaust flange locations exactly.
- Verify application details for Toyota Tundra, 4Runner, Sequoia, and Lexus GS430/LS430 models before ordering.
Quality Assurance
Mahle supplies sealing products trusted in OEM and technician service environments. The F32880 is built to the stated dimensions and application data for consistent exhaust sealing on select Toyota and Lexus vehicles.
| Brand | Mahle |
|---|---|
| Part Number | F32880 |
| Inside Diameter | 2.47 |
| Thickness | 0.248 |
| Outside Diameter | 2.82 |
| Gasket Type | Ring type a |
| Gasket Wall Thickess | 0.248" |
| Inside Diameter | 2.47" |
| Outside Diameter | 2.82" |
This part fits 74 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Toyota | Tundra | 4.0L | V6 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2013 | Toyota | Tundra | 4.0L | V6 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2012 | Toyota | Tundra | 4.0L | V6 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2011 | Toyota | Tundra | 4.0L | V6 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2010 | Lexus | SC430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2010 | Toyota | Tundra | 4.0L | V6 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2009 | Lexus | SC430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2009 | Toyota | 4Runner | 4.7L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2009 | Toyota | Sequoia | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2009 | Toyota | Tundra | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2009 | Toyota | Tundra | 4.0L | V6 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Connector |
| 2008 | Lexus | SC430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2008 | Toyota | 4Runner | 4.7L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2008 | Toyota | Sequoia | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2008 | Toyota | Tundra | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2008 | Toyota | Tundra | 4.0L | V6 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Connector |
| 2007 | Lexus | GS430 | 4.3L | V8 | Front | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2007 | Lexus | SC430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2007 | Toyota | 4Runner | 4.7L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2007 | Toyota | Sequoia | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2007 | Toyota | Tundra | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2007 | Toyota | Tundra | 4.0L | V6 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Connector |
| 2006 | Lexus | GS430 | 4.3L | V8 | Front | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2006 | Lexus | LS430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2006 | Lexus | SC430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2006 | Toyota | 4Runner | 4.7L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2006 | Toyota | Sequoia | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2006 | Toyota | Tundra | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2006 | Toyota | Tundra | 4.0L | V6 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Connector |
| 2005 | Lexus | GS430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2005 | Lexus | LS430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2005 | Lexus | SC430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2005 | Toyota | 4Runner | 4.7L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2005 | Toyota | Sequoia | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2005 | Toyota | Tundra | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2005 | Toyota | Tundra | 4.0L | V6 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Connector |
| 2004 | Lexus | GS430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2004 | Lexus | LS430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2004 | Lexus | SC430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2004 | Toyota | 4Runner | 4.7L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2004 | Toyota | Sequoia | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2004 | Toyota | Tundra | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2004 | Toyota | Tundra | 3.4L | V6 | Rear | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2003 | Lexus | GS430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2003 | Lexus | LS430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2003 | Lexus | SC430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2003 | Toyota | 4Runner | 4.7L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2003 | Toyota | Sequoia | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2003 | Toyota | Tundra | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2003 | Toyota | Tundra | 3.4L | V6 | Rear | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2002 | Lexus | GS430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2002 | Lexus | LS430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2002 | Lexus | SC430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2002 | Toyota | Sequoia | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2002 | Toyota | Tundra | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2002 | Toyota | Tundra | 3.4L | V6 | Rear | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2001 | Lexus | GS430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2001 | Lexus | LS430 | 4.3L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2001 | Toyota | Sequoia | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2001 | Toyota | Tundra | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2001 | Toyota | Tundra | 3.4L | V6 | Rear | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2000 | Lexus | GS400 | 4.0L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2000 | Lexus | LS400 | 4.0L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2000 | Lexus | SC400 | 4.0L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 2000 | Toyota | Tundra | 4.7L | V8 | Center | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 2000 | Toyota | Tundra | 3.4L | V6 | Rear | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 1999 | Lexus | GS400 | 4.0L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 1999 | Lexus | LS400 | 4.0L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 1999 | Lexus | SC400 | 4.0L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 1999 | Toyota | Land Cruiser | 4.7L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
| 1998 | Lexus | GS400 | 4.0L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 1998 | Lexus | LS400 | 4.0L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 1998 | Lexus | SC400 | 4.0L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite; Exhaust Flange |
| 1998 | Toyota | Land Cruiser | 4.7L | V8 | N/A | Ring Type A, ID 2.47in, OD 2.82in, Width 0.248in; Steel and Composite |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
61086
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
