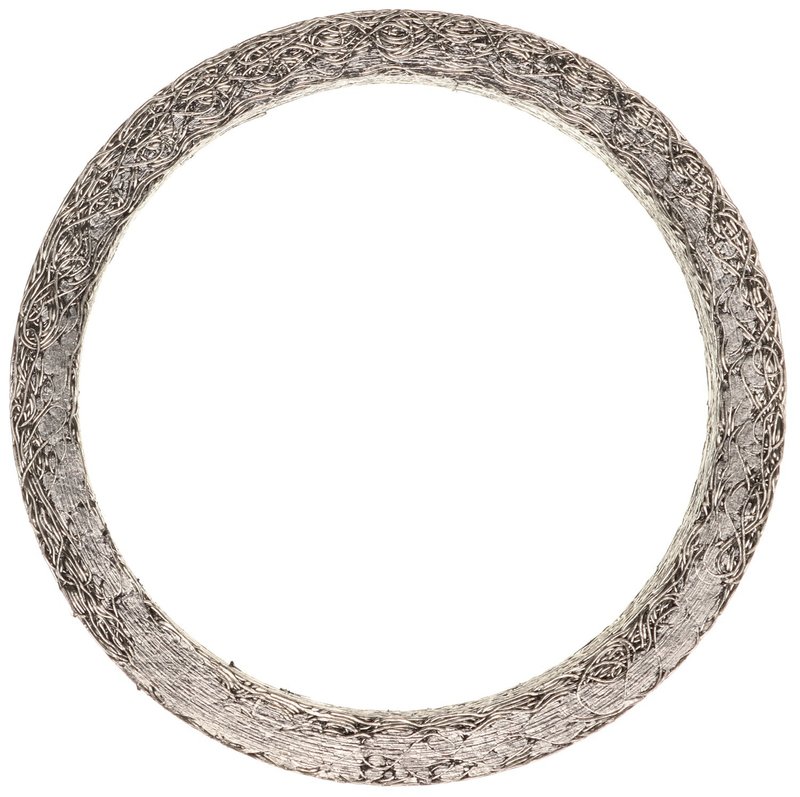

Mahle F33683 Turbocharger Gasket
OE Quality 60-Day Returns
Mahle
 Turbocharger Gasket

Mahle F33683 Turbocharger Gasket

Brand Mahle F33683
Material Graphite, steel
Configuration One piece
Thickness 0.250
Thickness 6.34
Additional Package Contents Contains turbocharger to exhaust manifold gasket
Gasket Material Graphite, steel
Gasket Wall Thickness 0.250"
Inside Diameter 1.80"
Item Grade Oem standard
Outside Diameter 2.16"
Package Quantity 1
Product line Turbocharger Gasket
Fits Ford and Lincoln · 11 vehicles

OEM-standard gasket. Provides dependable sealing for turbocharger applications.

Graphite and steel construction. Combines heat resistance with durable sealing performance.

One-piece design. Simplifies installation with a straightforward fit.

Cross-references Ford JL3Z-9450-A for the same application. See all 1.

$14.49Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $14.49
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Turbocharger Gasket options

Turbocharger Gasket for Ford and Lincoln

The Mahle F33683 turbocharger gasket is an OEM-standard sealing solution for turbocharger-to-exhaust-manifold service. Built with graphite and steel in a one-piece configuration, it is made for precise sealing on select Ford Expedition, Ford F-150, and Lincoln Navigator applications.

Mahle Turbocharger Gasket parts are known for OE-focused sealing performance, and the F33683 follows that approach with materials and dimensions selected for turbocharger exhaust sealing service. This part cross-references Ford JL3Z-9450-A for the same application.

Key Features

  • OEM-standard turbocharger gasket for exhaust-side sealing
  • Graphite and steel construction for heat-resistant sealing support
  • One-piece configuration for direct replacement service
  • Includes turbocharger to exhaust manifold gasket
  • Inside diameter: 1.80 in.; outside diameter: 2.16 in.; thickness: 0.250 in. (6.34 mm)
  • Compatible with select 2018-2021 Ford Expedition, 2018-2020 Ford F-150, and 2018-2021 Lincoln Navigator applications

Detailed Description

Mahle F33683 is a turbocharger gasket designed for exhaust manifold sealing where turbocharger connection integrity matters. The graphite and steel material combination supports a stable seal under high-temperature exhaust conditions, while the OEM-standard grade helps match the fit and function expected in factory-style repair work. For Ford Expedition, Ford F-150, and Lincoln Navigator service, this gasket is a direct-fit sealing component for the listed model years.

Common Issues This Part Addresses

  • Exhaust leaks at the turbocharger-to-manifold joint
  • Loss of sealing after turbocharger service or removal
  • Noise from a leaking exhaust-side connection
  • Soot buildup around the turbocharger flange area
  • Reduced sealing performance from a worn or damaged gasket

Installation Notes and Tips

Inspect the turbocharger flange and exhaust manifold mating surfaces before installation. Remove carbon buildup, corrosion, and old gasket material so the new seal seats evenly. Confirm application by year, make, and model before ordering, especially for 2018-2021 Ford Expedition, 2018-2020 Ford F-150, and 2018-2021 Lincoln Navigator vehicles. Use the correct torque procedure for the turbocharger fasteners during reassembly.

Quality Assurance

Mahle supplies sealing products used by OEMs and technicians worldwide, and this gasket is built to OEM-standard expectations for fit and sealing performance.

This part fits 11 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
2021FordExpedition3.5LV6Graphite; Turbocharger Gasket
2021LincolnNavigator3.5LV6Graphite; Turbocharger Gasket
2020FordExpedition3.5LV6Turbocharger to Exhaust Manifold; Graphite, Steel
2020FordF-1503.5LV6Turbocharger to Exhaust Manifold; Graphite, Steel
2020LincolnNavigator3.5LV6Turbocharger to Exhaust Manifold; Graphite, Steel
2019FordExpedition3.5LV6Turbocharger to Exhaust Manifold; Graphite, Steel
2019FordF-1503.5LV6Turbocharger to Exhaust Manifold; Graphite, Steel
2019LincolnNavigator3.5LV6Turbocharger to Exhaust Manifold; Graphite, Steel
2018FordExpedition3.5LV6Turbocharger to Exhaust Manifold; Graphite, Steel
2018FordF-1503.5LV6Turbocharger to Exhaust Manifold; Graphite, Steel
2018LincolnNavigator3.5LV6Turbocharger to Exhaust Manifold; Graphite, Steel
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Ford — JL3Z-9450-A
